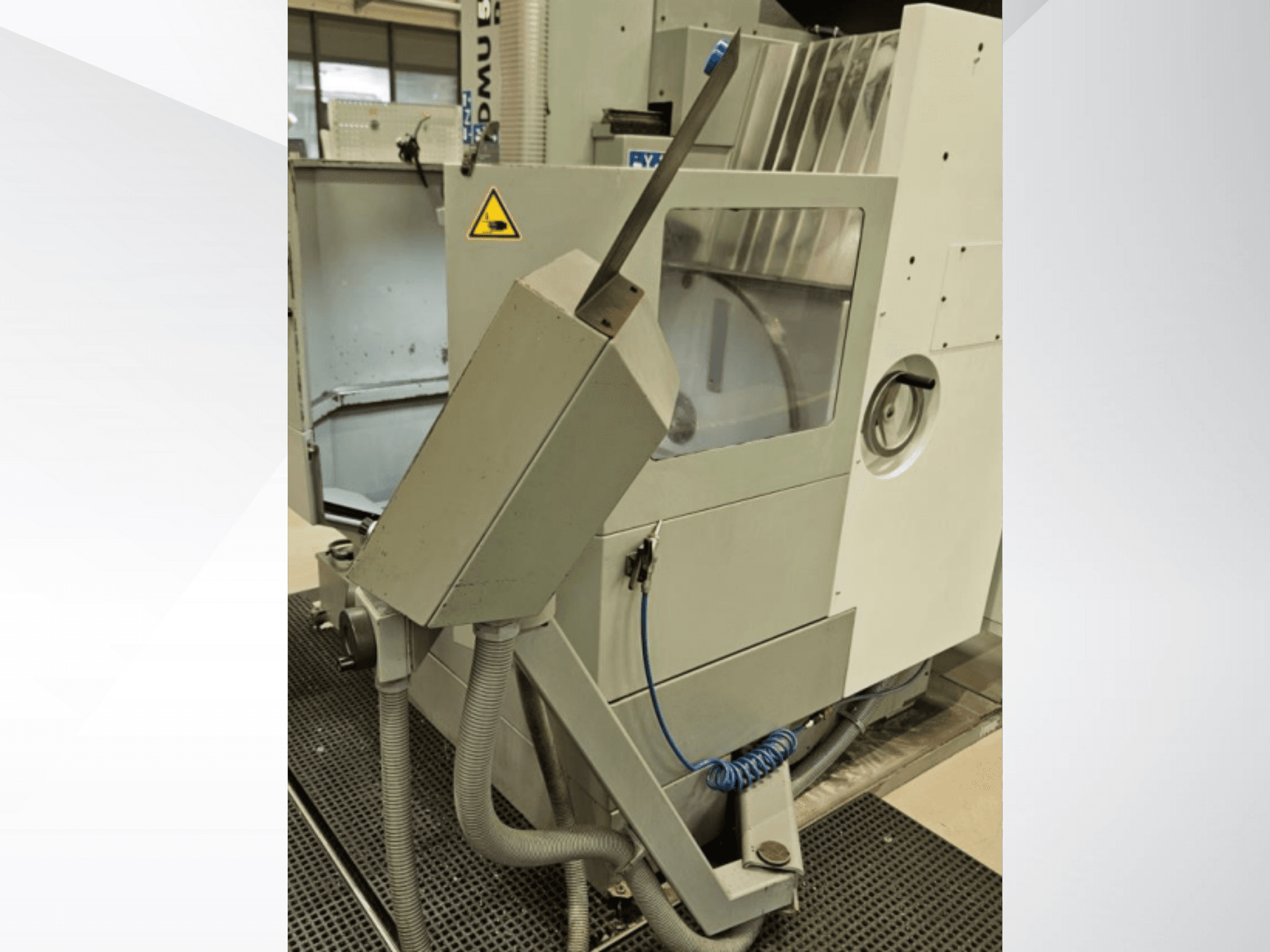

DMU milling machine side view with coolant nozzle and integrated control panel; features safety warning label.
DMU milling machine side view with coolant nozzle and integrated control panel; features safety warning label.

DECKEL MAHO - DMU 50 MDE-MIL-DEC-2003-00004

£ 11,455
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 3-axis DECKEL MAHO DMU 50 M was manufactured in 2003. It features a Heidenhain TNC 310 control, electronic handwheel HR 150, and a main drive speed of 4,500 min-1. The machine offers a rapid traverse of 5 m/min and a working range of 500 x 400 x 400 mm. If you are looking to get high-quality milling capabilities consider the DECKEL MAHO DMU 50 M machine we have for sale. Contact us for more information.

Overview

  • brand: DECKEL MAHO
  • year: 2003
  • MODEL: DMU 50 M
  • application type: Milling
  • Location: Germany
  • machine type: Vertical Machining Centre
  • control unit brand: HEIDENHAIN

Technical Information - DECKEL MAHO DMU 50 M

Control Unit

  • Control Brand: HEIDENHAIN
  • Control Model: TNC 310

Dimensions

  • Machine Height: 2540 mm
  • Machine Weight: 2800 kg
  • Table Load: 200 kg

Movement

  • Number of Axes: 3
  • X-axis Travel: 500 mm
  • Y-axis Travel: 400 mm
  • Z-axis Travel: 400 mm

Technical Specification

  • Spindle Speed: 4500 RPM
  • Taper Size: SK 40

Additional Information

  • Electronic handwheel: HR 150

  • Feed drive (X/Y/Z): infinitely variable up to 5,000 mm/min

  • Rapid traverse: 5 m/min

  • Travel measuring system: X/Y/Z resolution 0.001 mm

  • Positioning tolerance: 0.010 mm

  • Work table: rotary table, clamping surface 700 x 500 mm

  • T-slots: pitch 63 mm / size 14 H7

  • Centering hole: diameter 30 mm H6

  • Table swivel range: +95° / -10°

  • Quantity available: 4 units

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
