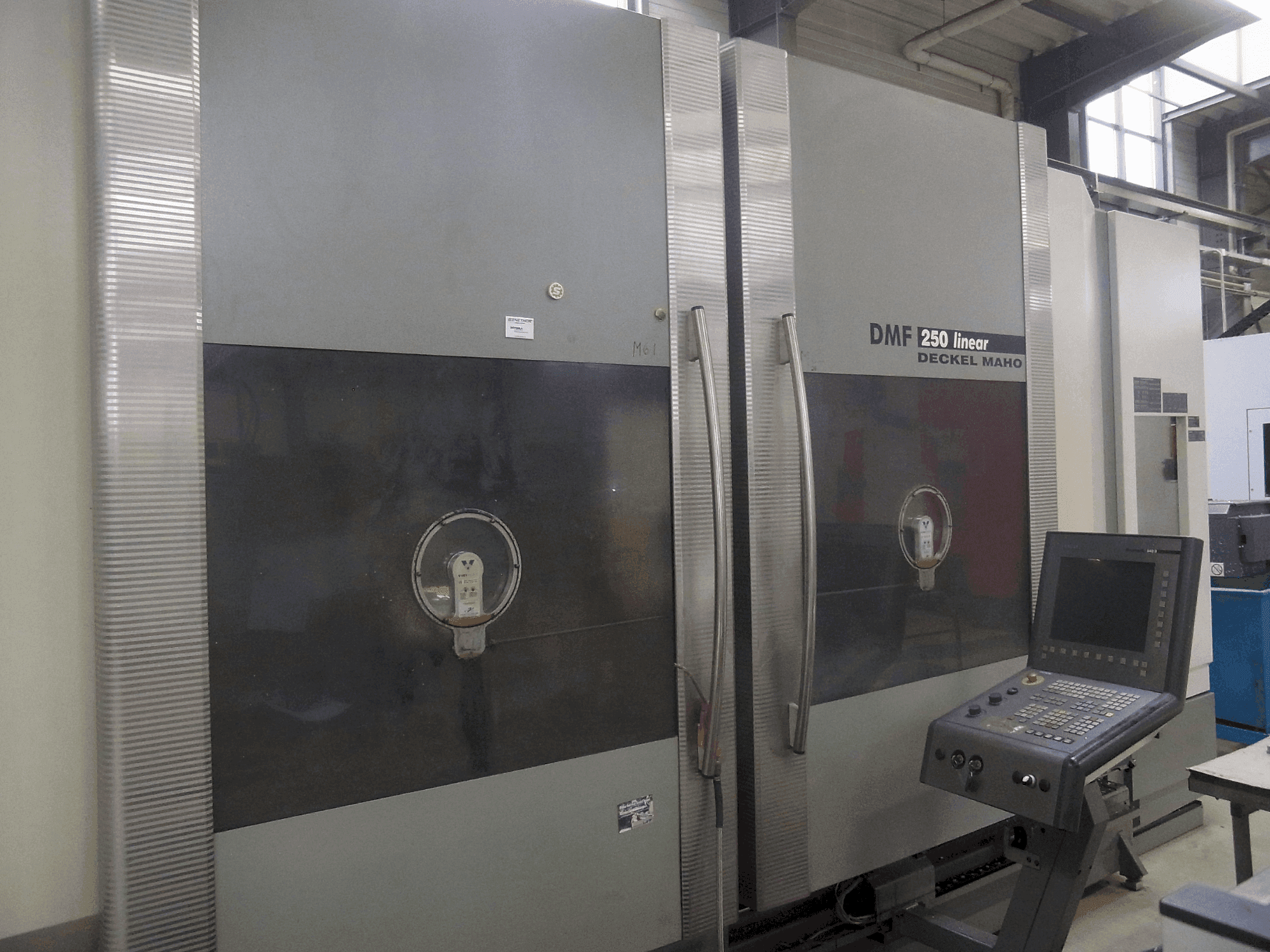

DECKEL MAHO - DMF 250 linearDE-MIL-DEC-2002-00008

Additional equipment

• Safety Equipment: Monitored and locked work area door; Key switch for normal and set-up mode; Limited functions when the door is open

Machine Benefits

Technical Machine Benefits

• Feed speed: up to 20000 mm/min

• Clamping surface: 3100 × 900 mm

• T-slots: 9 pieces, 100 mm apart

• Tool magazine capacity: 30 places

• Resolution of measuring system: 0. 001 mm

• Electrical connections: mains connection 3n/pe~400/230 v, 50/60 hz; power consumption 82 kva

• Pneumatics: compressed air 5. 5-8 bar; air volume 25 m³/h (without cooling), +20 m³/h with cooling

• Weight (kg): with accessories: up to 29280 kg

Extra Information

Room Temperature: +15°C to +35°C Humidity: 20-75% Tool magazine size 120 -Magazine cabinet -Tool change is performed via a shuttle -Tool holder only on request and subject to availability (extra) -Machine is a 3-axis machine (rotary table not available) A further configuration or the AB is no longer available. Z-axis brake defective, roller shutter in machine room defective, screen cable defective, display defective (loose connection)
