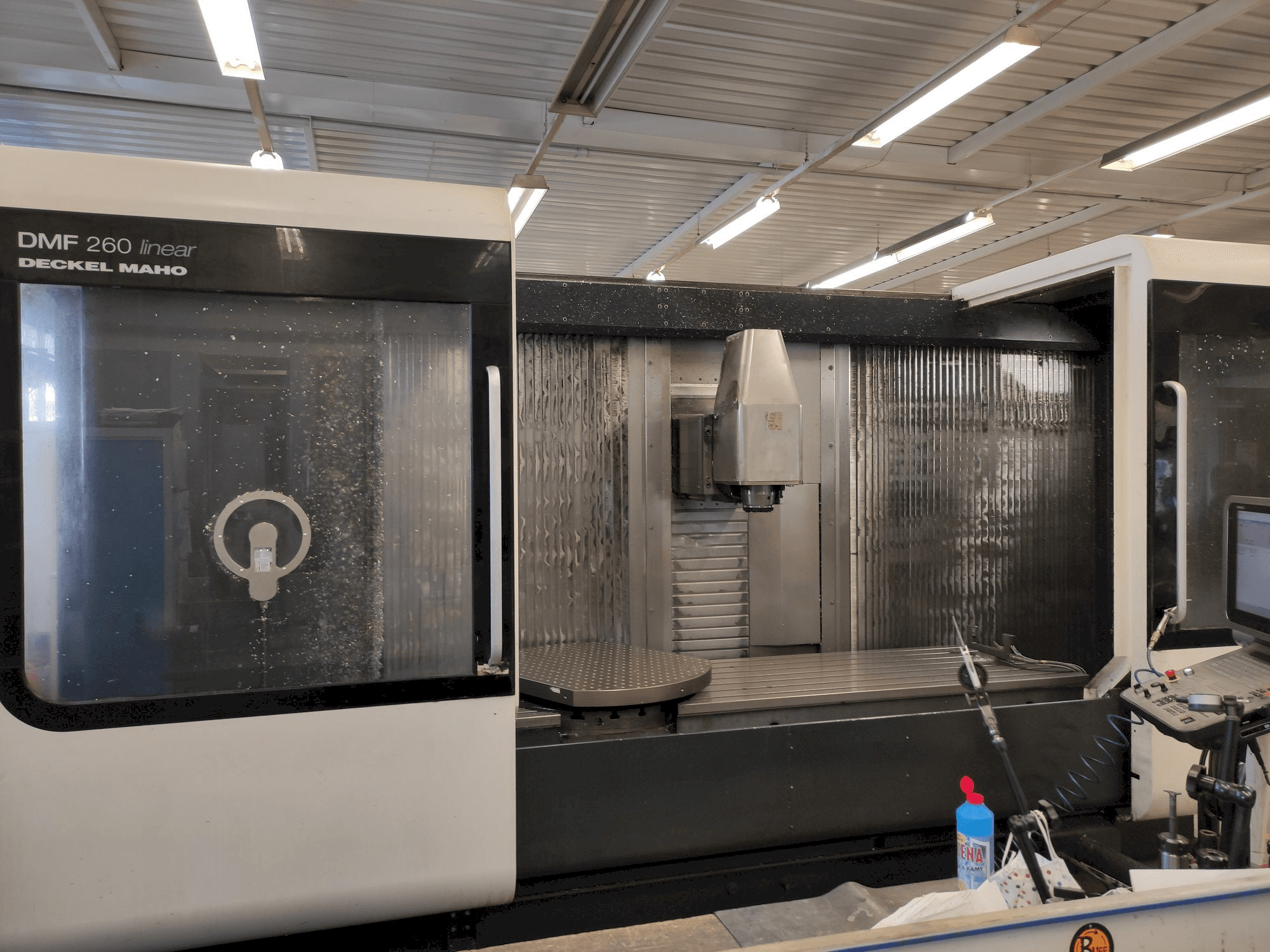

Front view of DMG Deckel Maho DMF 260 linear machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

DECKEL MAHO DMF 260 linear

Photo Gallery

DECKEL MAHO - DMF 260 linearCZ-MIL-DMG-2011-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
DMG Deckel Maho DMF 260 linear Vertical Machining Center

Show in original language

This Deckel Maho DMF 260 linear Vertical Machining Center was built in the year 2011 in Germany. It has been working for 45228 hours, of which 17156 are spindle hours. This 5 axis machine is equipped with a HEIDENHAIN iTNC 530 control unit. This machine can work with a spindle speed up to 18000 rpm. It has mainly produced molds. A new spindle was installed in 2015, has been regularly maintained, and is in very good condition.

Overview

brand: DECKEL MAHO
year: 2011
MODEL: DMF 260 linear
production hours: 45228
application type: Milling
Location: Czech Republic
machine type: Gantry Milling Machine
control unit brand: HEIDENHAIN

Technical Information - DECKEL MAHO DMF 260 linear

Control Unit

Control Brand: HEIDENHAIN
Control Model: iTNC 530

Dimensions

Machine Depth: 3443 mm
Machine Height: 2692 mm
Machine Weight: 15070 kg
Table Length: 2920 mm
Table Width: 740 mm

Movement

Number of Axes: 5
X-axis Travel: 2600 mm
Y-axis Travel: 700 mm
Z-axis Travel: 700 mm

Technical Specification

Number of Tools: 30
Spindle Power: 35 kW
Spindle Speed: 18000 RPM

Additional Information

Additional equipment

Heidenhain workpiece probe TS 649
Blum tool laser measuring

Machine Benefits

Qualitative Machine Benefits

Very good condition
Regularly maintained
2015 - new spindle

Technical Machine Benefits

Torque 130/87 nm (40/100 %)
Integrated rotary table c axis 360° / 0. 001°, max. 50 rpm "
Rotary table diameter 750 mm, max. Load 500 kg
Head b axis swivelling range - /+ 110°
Coolant unit + paper band filter
Cooling trough spindle 40 bar

Machine History

Industries

Die & mould

End product

Mould
