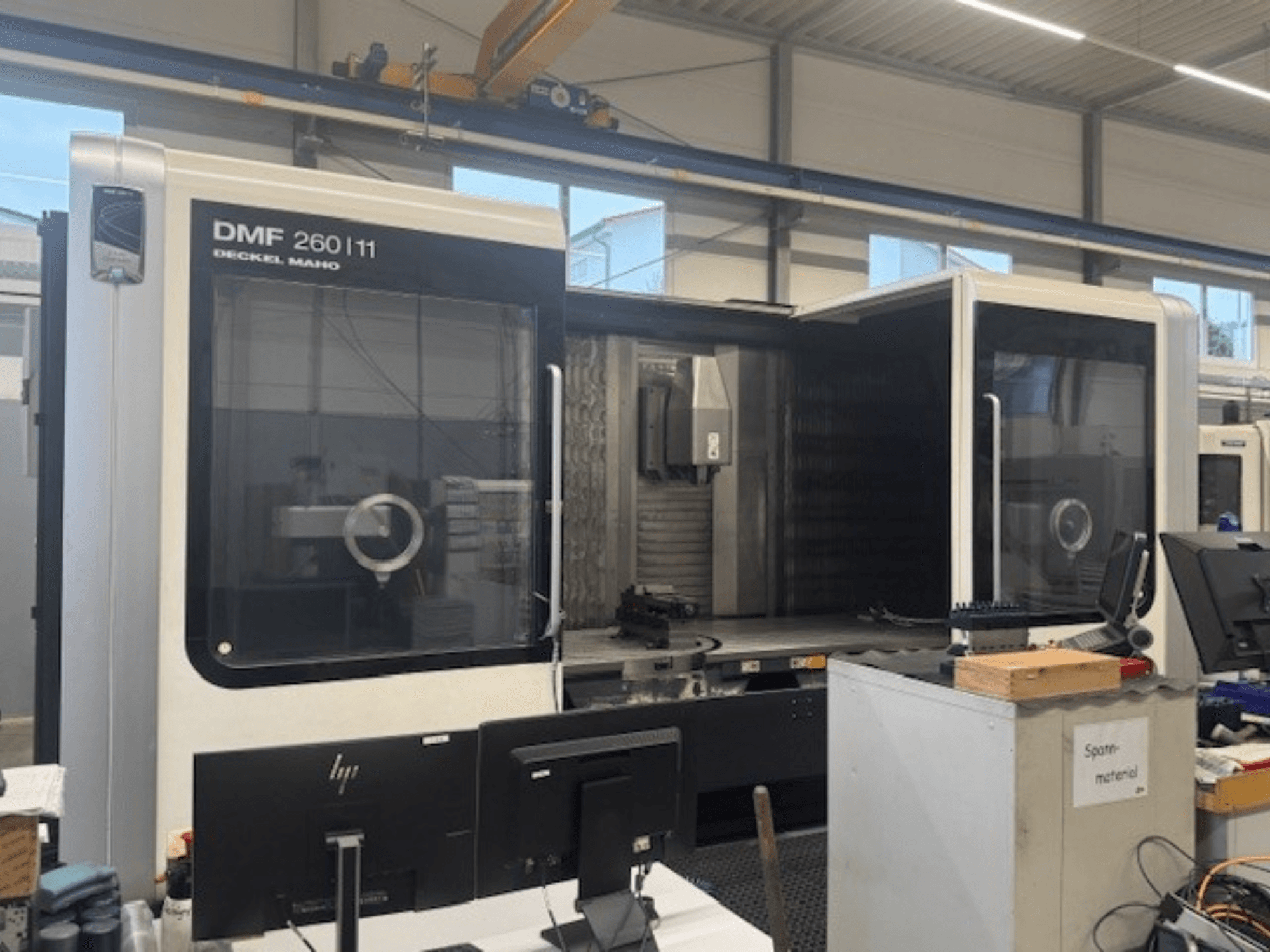

Universal machining center DECKEL MAHO DMF 260/11 in front view, showcasing a spacious operating area and control screens.
Universal machining center DECKEL MAHO DMF 260/11 in front view, showcasing a spacious operating area and control screens.

DECKEL MAHO - DMF 260/11DE-MIL-DEC-2014-00001

£ 191,570
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 5-axis DECKEL MAHO DMF 260/11 was manufactured in 2014. It features an impressive X-axis travel of 2600 mm, Y-axis travel of 1100 mm, and Z-axis travel of 900 mm. The machine is equipped with a vertical motor spindle with a spindle speed range of 20 – 8000 rpm and a tool magazine capacity of 30 tools. If you are looking to get high-quality milling capabilities, consider the DECKEL MAHO DMF 260/11 universal machining centre. Contact us for further details.

Overview

  • brand: DECKEL MAHO
  • year: 2014
  • MODEL: DMF 260/11
  • production hours: 20030
  • application type: Milling
  • Location: Germany
  • machine type: Universal Machining Centre
  • control unit brand: HEIDENHAIN

Technical Information - DECKEL MAHO DMF 260/11

Control Unit

  • Control Brand: HEIDENHAIN
  • Control Model: iTNC 530 HSCI

Dimensions

  • Table Load: 1200 kg

Movement

  • Number of Axes: 5
  • X-axis Travel: 2600 mm
  • Y-axis Travel: 1100 mm
  • Z-axis Travel: 900 mm

Technical Specification

  • Number of Tools: 60
  • Spindle Power: 23 kW
  • Spindle Speed: 8000 RPM
  • Taper Size: SK 40

Additional Information

  • Control interface: Heidenhain Smart.NC ERGOline, 19" screen

  • Rapid traverse: 40 m/min; Acceleration: 4 m/s²

  • Main spindle: Vertical motor spindle power 23 / 5 / 13.5 kW (25 / 100% ED)

  • Swivel head: B-axis, up to 18000 rpm; spindle interface HSK-A63; power 35 / 25 kW (40 / 100% ED)

  • Tool magazine: 30 tools; chain magazine with double gripper; chip-to-chip 9 s

  • Tool magazine (optional): 60 tools SK40 / HSK-A63

  • Table: 3200 x 1100 mm

  • Rotary table integrated: 1050 mm diameter

  • Clamping: Hydraulic

  • Measuring system: Direct measuring systems

  • Machine design: Full enclosure with coolant tank; 2 rotating viewing windows

  • Air supply: Sealing air for linear measuring systems

  • Through-spindle air: Selectable via M-function

  • Operating mode: Process monitoring in production

  • Language: German / English screen texts

  • Workpiece clamping release: Automatic mode enable

  • Condition/Service history:

    • New spindle and new guideways, completely renewed by DMG (January 2026)

    • Geometry remeasured and adjusted by DMG (January 2026)

    • New spindle less than 100 hours

Additional equipment

  • Chip conveyor: Scraper belt type

  • Touch probe: Heidenhain TS 649 infrared measuring probe

  • Tool measurement: Blum laser tool measurement system

  • Kinematic calibration: 3D quickSET

  • Machine protection: MPC Machine Protection Control

  • Internal coolant supply: 40 bar / 600 l with paper band filter

  • Coolant/mist extraction: Oil and emulsion mist extraction system; extraction capacity 2 x 1600 m³/h

  • Electronic handwheel

  • Coolant flushing gun (included)


*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Borja Garcia

Borja Garcia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
