DECKEL MAHO - DC 50 VDE-MIL-DEC-1996-00005

Name: DECKEL MAHO DC 50 V
Brand: DECKEL MAHO
SKU: DE-MIL-DEC-1996-00005
Price: 7600 GBP
Availability: InStock

£ 7,600

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DECKEL MAHO DC 50 V For Sale | gindumac.com

Show in original language

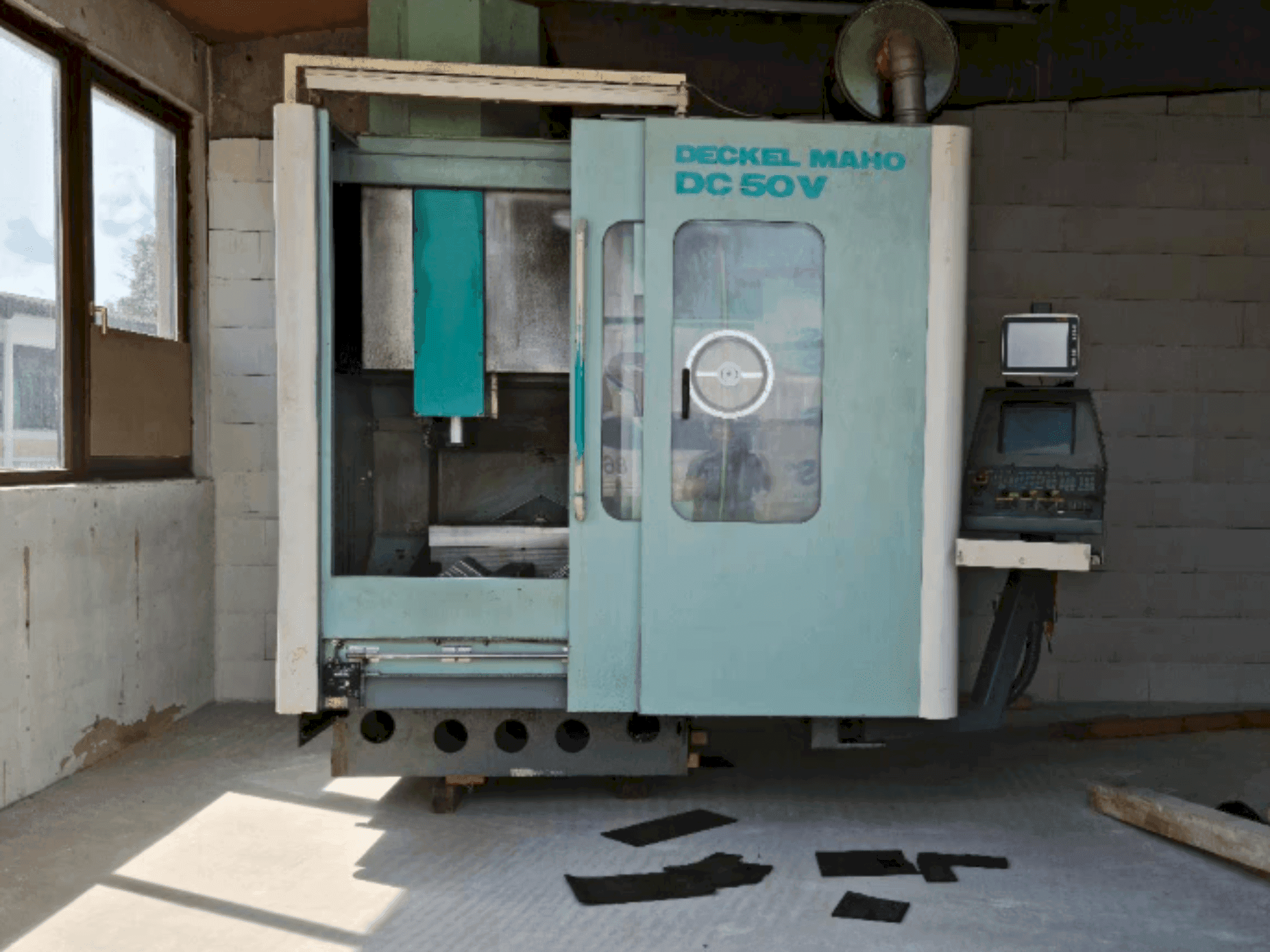

This 3-axis DECKEL MAHO DC 50 V was manufactured in 1996. It features a 450x450x450mm working range, a 700x400mm table, and can handle loads up to 800kg. Equipped with a 20-fold tool changer and a spindle speed of up to 8000 rpm. Tool holder type is SK 40 DIN 69871. It's compatible with Fusion 360 CAM for direct program transmission via LAN. Reach out for further details regarding this machine.

Overview

brand: DECKEL MAHO
year: 1996
MODEL: DC 50 V
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Immediately

Technical Information - DECKEL MAHO DC 50 V

General Data

Measurements width: 2600 mm
Measurements depth: 2400 mm
Measurements height: 3000 mm
Machine weight: 6000 kg

Main drive

Spindle speed range: 8000 1/MIN
Number of axis: 3

Table

Table load: 800 kg

Tools

Type of tool holder: SK 40 DIN 69871

Additional Equipment

- Retrofitted coolant supply

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Direct distance measuring system (glass scales) resolution: 0. 001mm
- - Working ranges x/y/z: 450/450/450mm
- - Table size: 700x400mm
- - Tool changer: 20-fold (carousel)
- - Automatic tool length sensor
- - New control system: linuxcnc 2. 8. 4
- - Former control system components (dialog 112) available
- - Compatible with fusion 360 cam
- - Spindle orientation
- - Retrofitted temperature sensor for spindle

Extra information

- Machine History Known defects: Oil mist extraction defective Hydraulic line leaking for tool clamping (minimal dripping) Cooling circuit leaking Various minor issues according to the age of the machine

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
