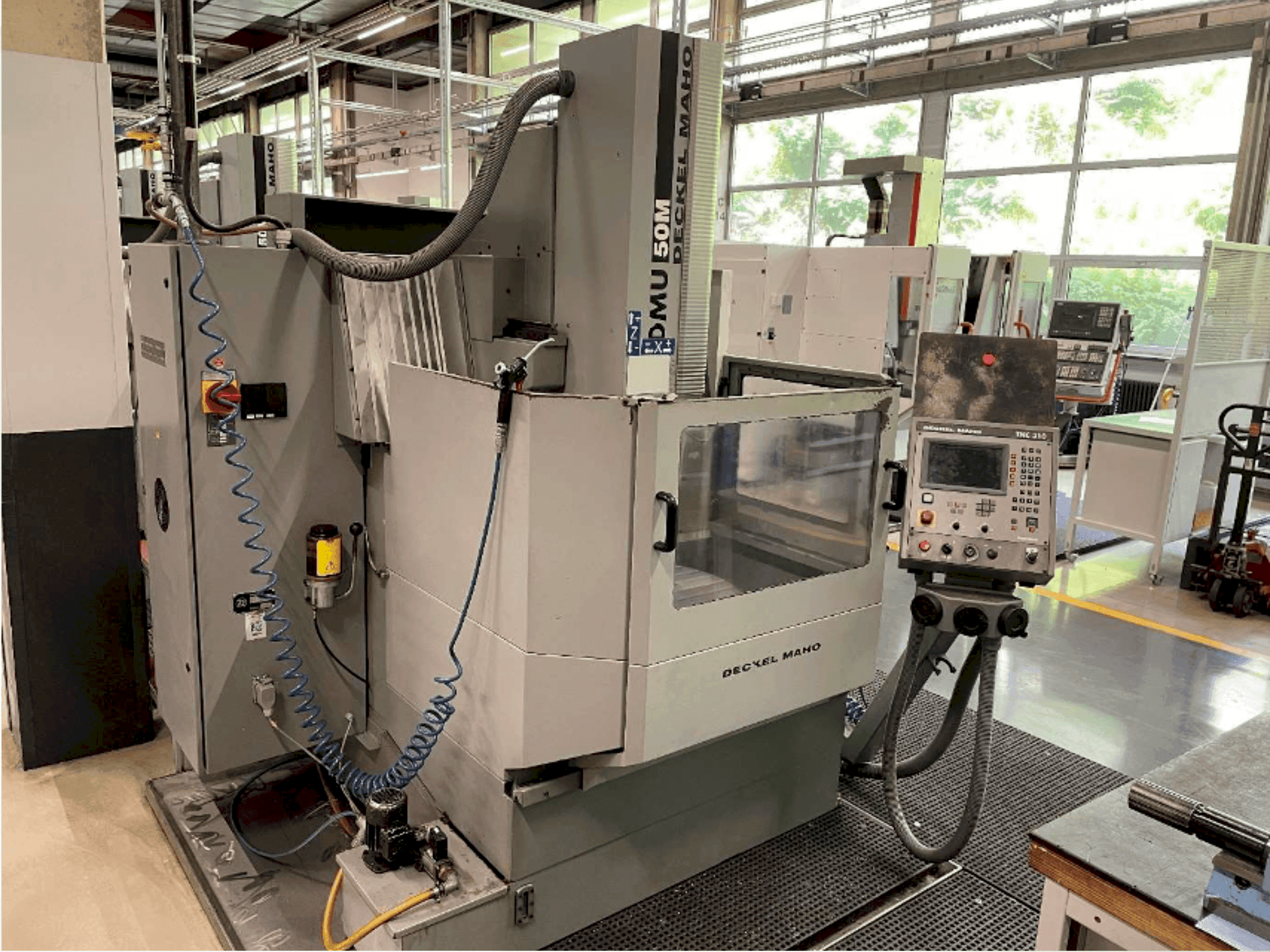

Front view of DECKEL DMU 50  machine

DECKEL - DMU 50DE-MIL-DEC-2003-00002

£ 18,250
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 3-axis DECKEL DMU 50 vertical machining center was manufactured in 2003. It features a Heidenhain TNC 310 control, electronic handwheel HR 150, and a main drive speed of 4,500 min-1. The machine offers a rapid traverse of 5 m/min and a maximum load capacity of 200 kg. If you are looking to get high-quality milling capabilities, consider the DECKEL DMU 50 machine we have for sale. Contact us for further details regarding this machine.

Overview

  • brand: DECKEL
  • year: 2003
  • MODEL: DMU 50
  • application type: Milling
  • Location: Germany
  • machine type: Vertical Machining Centre
  • availability: Immediately
  • control unit brand: HEIDENHAIN

Technical Information - DECKEL DMU 50

General Data

  • Measurements width: 1520 MM
  • Measurements depth: 2000 MM
  • Measurements height: 2140 MM
  • Machine weight: 2800 KG

Control Unit

  • Brand: HEIDENHAIN
  • Model: TNC 310

Main drive

  • Spindle speed range: 4500 1/MIN
  • Number of axis: 3

Movement

  • X-AXIS Movement: 500 mm
  • X-AXIS Rapid traverse: 5 m/min
  • Y-AXIS Movement: 400 mm
  • Y-AXIS Rapid traverse: 5 m/min
  • Z-AXIS Movement: 400 mm
  • Z-AXIS Rapid traverse: 5 m/min

Table

  • Outer length: 700 mm
  • Outer width: 500 mm
  • TSlots size: 63 mm
  • Distance between: 14 H7
  • Table load: 200 kg

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Feed drive: xyz infinitely variable up to 5000 mm/min
      • - Travel measuring system: xyz 0. 001 mm
      • - Positioning tolerance: 0. 010 mm
      • - Centering hole diameter: 30 mm h6
      • - Swivel range: +95 / -10°
    • Qualitative Machine Benefits:
      • - Features a rotary table with a generous clamping surface area to support various workpiece sizes.

    Extra information

    • - Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
