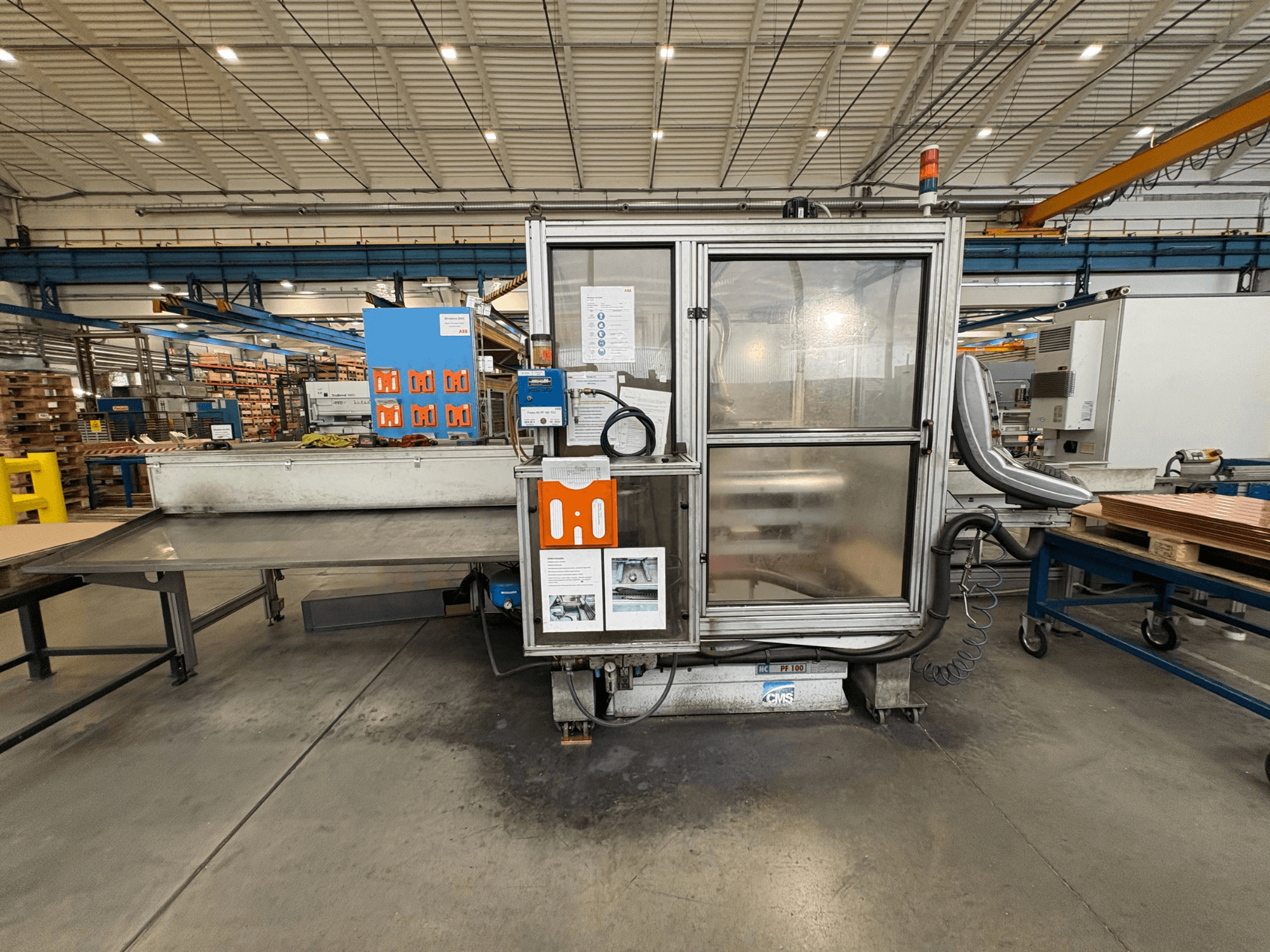

This 3-axis CMS NC PF 100 TCU was manufactured in 2013. It features a maximum tool length of 210 mm and a maximum tool diameter of 35 mm. The machine includes an automatic tool changer and a feeding conveyor with rollers, enhancing its operational efficiency. If you are looking to get high-quality CNC wood machining capabilities, consider the CMS NC PF 100 TCU machine we have for sale. Contact us for further details.
Overview
- brand: CMS
- year: 2013
- MODEL: NC PF 100 TCU
- application type: CNC Wood Machining
- Location: Czech Republic
- machine type: CNC Wood Machining Centre
- control unit brand:
Technical Information - CMS NC PF 100 TCU
Dimensions
- Machine Length: 5875 mm
- Machine Width: 1630 mm
Movement
- Number of Axes: 3
Additional Information
Material capacity:
Min: width 30 mm, length 150 mm, thickness 5 mm
Max: width 150 mm, length 2000 mm, thickness 15 mm
Tooling:
8-position rack with pneumatic movement
Automatic tool changer
Max tool length: 210 mm
Max tool diameter: 35 mm
Power and utilities:
Power supply: 400V ±10/-15%, 50/60 Hz
Operating pressure: 6 bar
Software and monitoring:
CMS Manager software
Real-time spindle monitoring
Remote diagnostics capability
System dimensions:
Length: 5875 mm
Including infeed conveyor: 1985 mm
Including out conveyor: 2160 mm
Width: 1630 mm
Special modifications:
Mechanical:
Working height adjusted to 960 mm (from 965 mm)
50 mm isolation plate + 10 mm sheet for EHRT alignment
Double-channel emergency stop system (enhanced safety)
Automation & integration:
Specialized I/O signal interface for EHRT communication
Ethernet connectivity (TCP/IP)
File-based protocol: PRODUCED.TXT for part code tracking
Bidirectional signal exchange (Ready Part Load, Part Loading, Emergency)
Additional equipment
Feeding conveyor with rollers
Slow down photocell for approach detection
Unloading conveyor for finished parts
Waste collection tanks under working area
Display (15" TFT color monitor)
Safety enclosure against moving parts
External air-oil mist spray device (replaces original 6 l unit)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
