CHIRON - Mill 2000 High DynamicsDE-MIL-CHI-2018-00002
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used CHIRON Mill 2000 High Dynamics | Machining Center

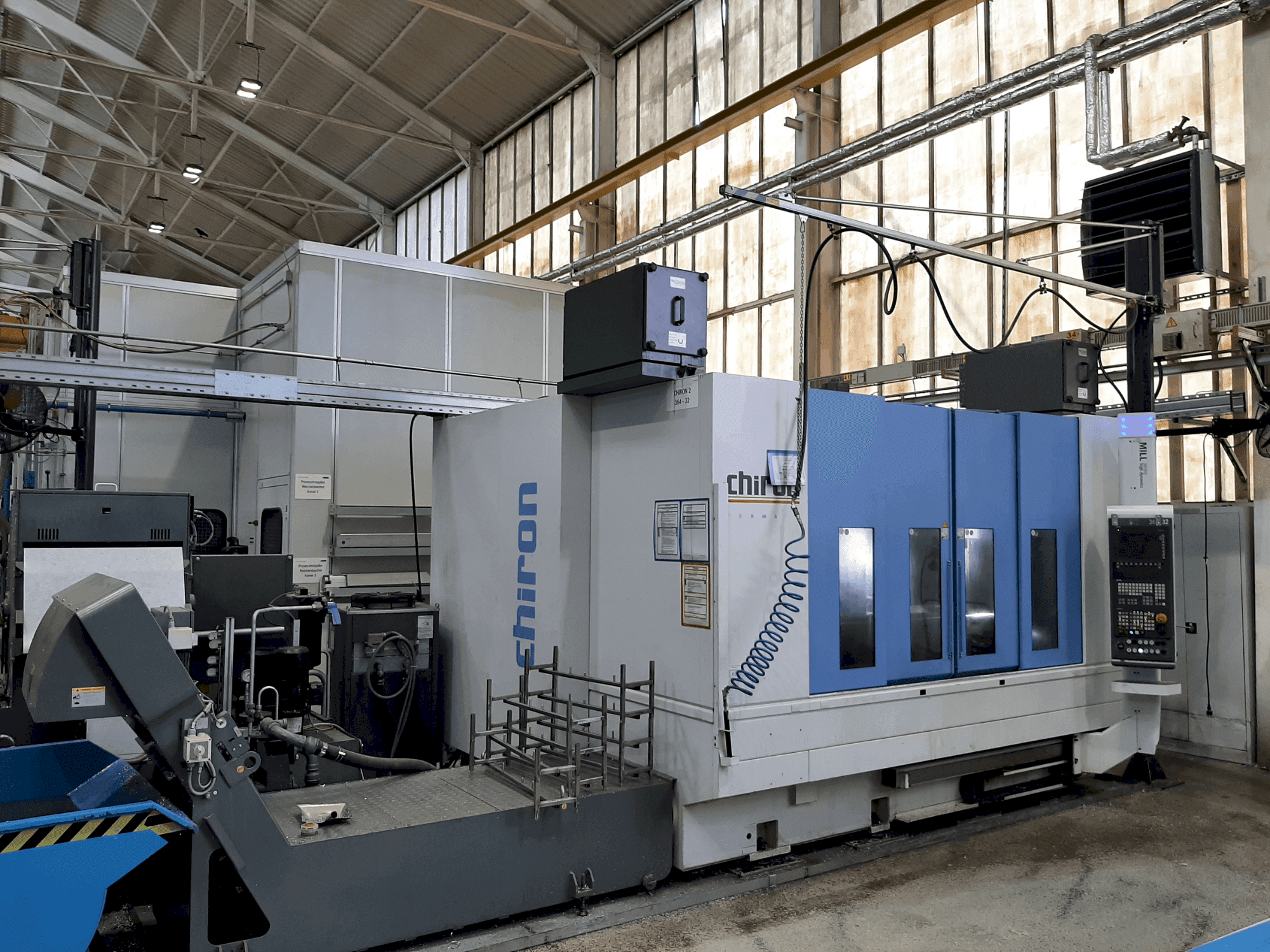

This 4-axis CHIRON Mill 2000 High Dynamics was manufactured in 2018. It features a single-spindle head, HSK-A 63 tool holder, and a maximum spindle speed of 20,000 rpm. The machine offers X-axis travel of 2000 mm, Y-axis travel of 630 mm, and Z-axis travel of 550 mm, with rapid traverse speeds of 75 m/min. Consider the opportunity to buy this CHIRON Mill 2000 High Dynamics vertical machining centre. Contact us for more information about this machine.
Overview
- brand: CHIRON
- year: 2018
- MODEL: Mill 2000 High Dynamics
- production hours: 29688
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- control unit brand: SIEMENS
Technical Information - CHIRON Mill 2000 High Dynamics
Control Unit
- Control Brand: SIEMENS
- Control Model: 840D-SL
Dimensions
- Machine Depth: 600 mm
- Machine Height: 1350 mm
- Machine Weight: 110 kg
Movement
- Number of Axes: 4
- X-axis Travel: 2000 mm
- Y-axis Travel: 630 mm
- Z-axis Travel: 550 mm
Technical Specification
- Spindle Power: 60 kW
- Spindle Speed: 20000 RPM
Additional Information
Additional equipment
Nominal pressure: 200 bar
Test pressure: 260 bar
Temperature range: -10 to 120 °C
Bypass opening pressure: 7 bar
Differential pressure indicator: 5 bar
Maximum voltage (AC): 250 V // Maximum voltage (DC): 200 V
Maximum switching current: 1 A
Switching power: 70 W
Protection class: IP 65
Weight: 37 kg
Lubrication: Oil-air
Maximum oil reservoir temperature of the hydraulic fluid: 55°C
Machine Benefits
Technical Machine Benefits
Main spindle max. Torque: 75 nm
Spindle head version: single-spindle
Extra Information
No swiveling spindle head.
Switchgear cooling device: Dimensions: 400 mm (W) x 950 mm (H) x 260 mm (D) Set flow rate: 40 l/min Discharge pressure at 50 Hz: 4.0 bar Rated power: 1.5 kW Maximum rated current: 4.1 A Unit: Dimensions: 600 mm (L) x 600 mm (W) x 1350 mm (H) Weight: 110 kg Rated connected load: 4.60 kW Maximum rated current: 9.20 A Maximum fuse: 16 A Table Rotary table: Transport load without counter bearing: 300 kg Max. axial load: 9000 N Max. radial load: 40000 N Max. tilting moment: 2000 Nm Max. transmittable torque from worm to worm gear: 30 Nm Counter bearing: Transport load for vertical use with rotary table NC1.03: 600 kg Required clamping pressure of the hydraulic clamp (nominal pressure): 75 bar Permissible clamping pressure of the hydraulic clamp: 85 bar Permissible pressure peak of the hydraulic clamp: 120 bar Permissible tangential moment with hydraulic clamp: 1000 Nm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
