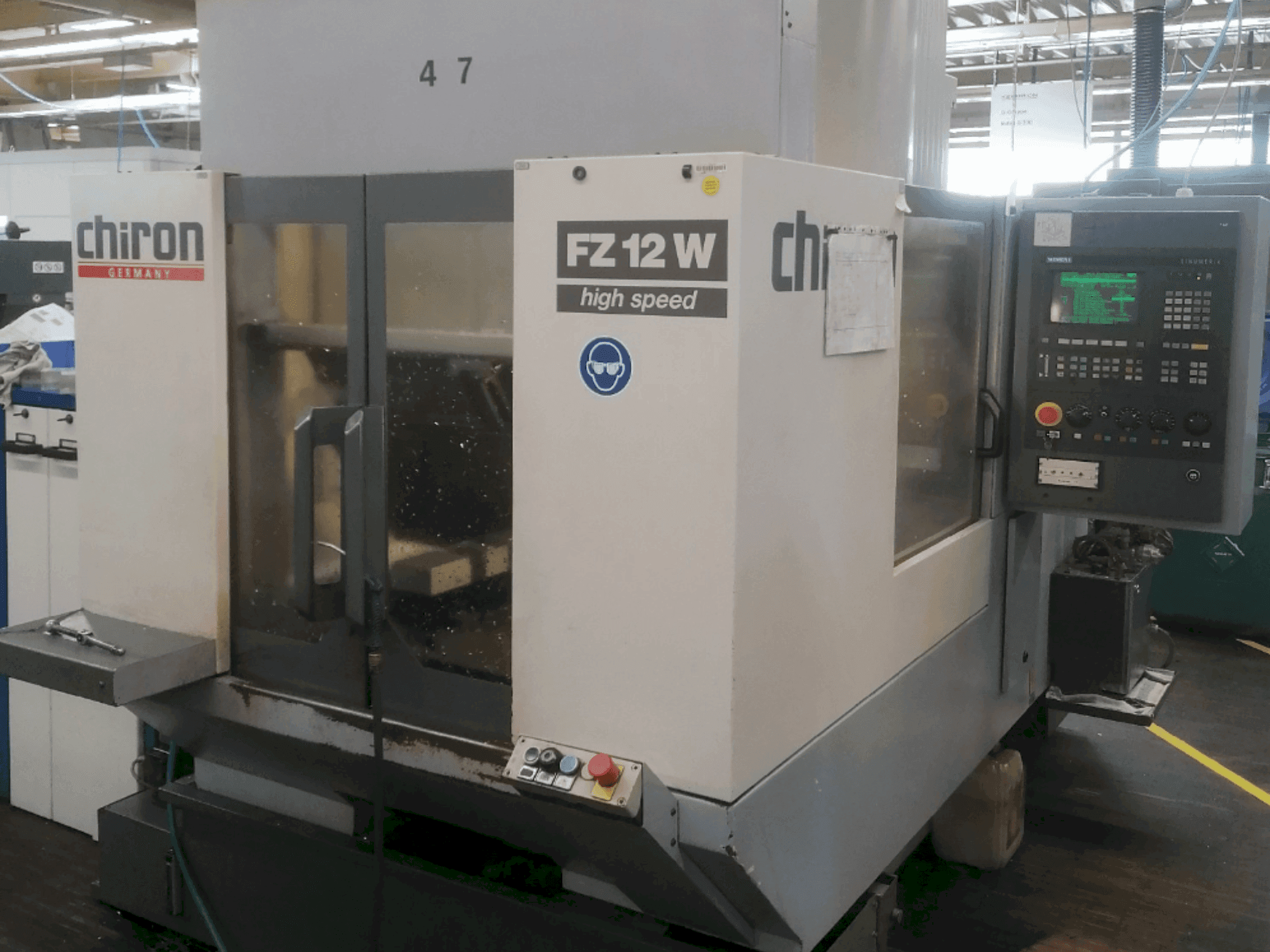

This CHIRON FZ 12 W was manufactured in 1995. A vertical machining center featuring a SK30 spindle mount, maximum spindle speed of 10,000 rpm, and a tool magazine with 12 positions. It includes a Sinumerik 810D control system and rapid traverse rates up to 40 m/min. Table size measures 660 x 350 mm. Consider the opportunity to buy this CHIRON FZ 12 W vertical machining center. Contact us for more information.
Overview
- brand: CHIRON
- year: 1995
- MODEL: FZ 12 W
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- control unit brand: SIEMENS
Technical Information - CHIRON FZ 12 W
Control Unit
- Control Brand: SIEMENS
- Control Model: Sinumerik 810D
Movement
- Number of Axes: 2
- X-axis Travel: 550 mm
- Y-axis Travel: 300 mm
Technical Specification
- Spindle Power: 95 kW
- Spindle Speed: 10000 RPM
Additional Information
Machine Benefits
Technical Machine Benefits
- Control voltage: 230v / 24v
- Power supply: 3x 400v, 50/60 hz
- Rated power: 16 kva
- Rated current: 34a
- Rapid traverse (xyz): up to 40 m/min
- Table size: 660 x 350 mm
- Tool magazine: 12 positions
- Tool changeover time: approx. 2 seconds
Extra Information
When milling with an 80 mm diameter cutter, slight noise was audible in the spindle area.
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
