CHIRON - FZ 08 WDE-MIL-CHI-2001-00002

£ 7,268
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

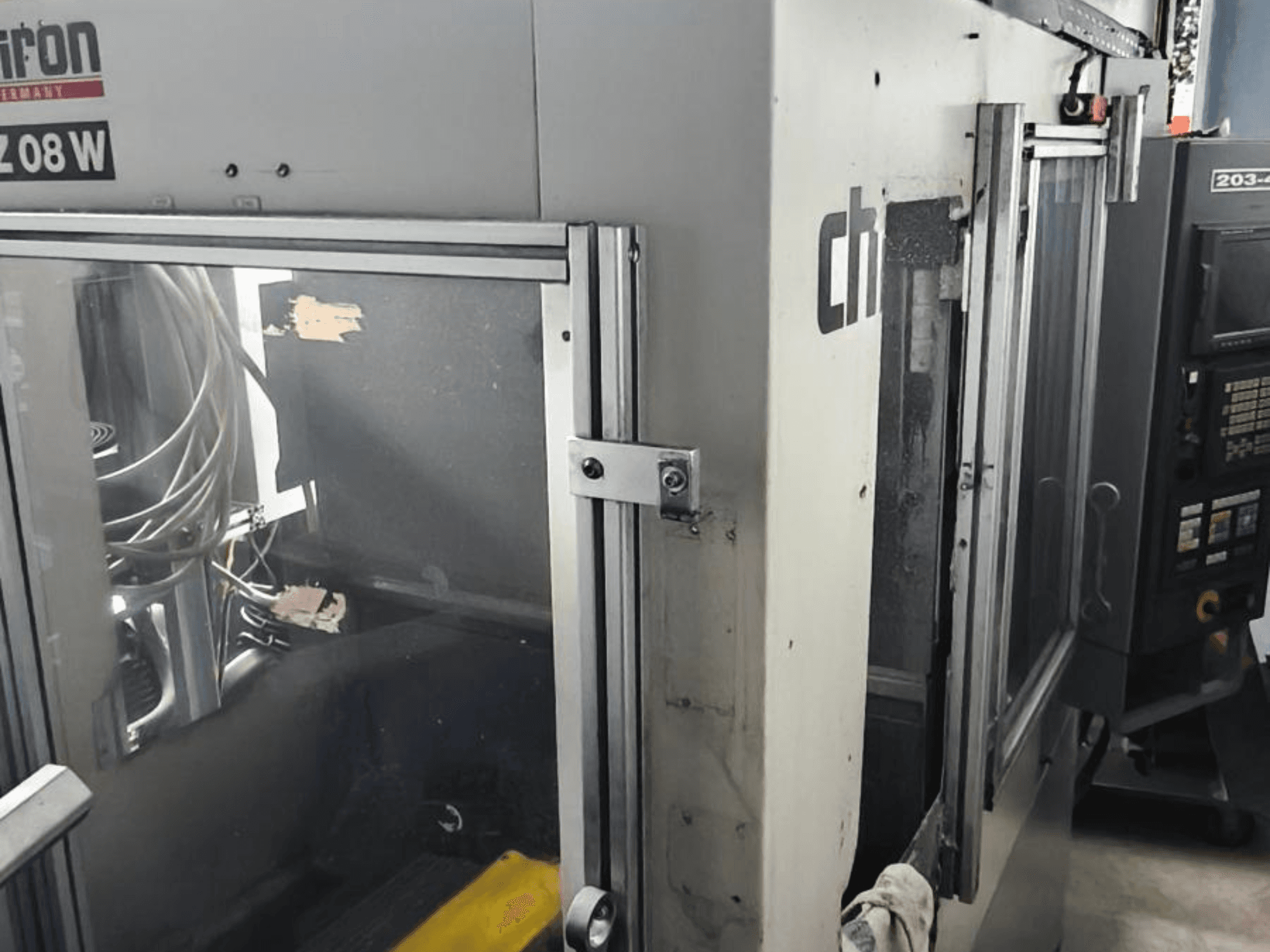

This 3-axis CHIRON FZ 08 W was manufactured in 2001. It features a maximum spindle speed of 18,000 rpm and a robust tool interface with HSK-A40. The machine includes integrated pallet changer for efficient workpiece handling. If you are looking to get high-quality machining capabilities, consider the CHIRON FZ 08 W vertical machining centre we have for sale. Contact us for further details regarding this machine.

Overview

  • brand: CHIRON
  • year: 2001
  • MODEL: FZ 08 W
  • application type: Milling
  • Location: Germany
  • machine type: Vertical Machining Centre
  • control unit brand: FANUC

Technical Information - CHIRON FZ 08 W

Control Unit

  • Control Brand: FANUC
  • Control Model: Series 21i-M

Movement

  • Number of Axes: 3
  • X-axis Travel: 450 mm
  • Y-axis Travel: 270 mm
  • Z-axis Travel: 310 mm

Technical Specification

  • Spindle Speed: 18000 RPM

Additional Information

  • Condition: Machine is no longer functional and can only be used as a supplier of spare parts

Electrical data

  • Kind of current: 3/N/PE ~ 50/60 Hz

  • Working voltage: 400 V

  • Control voltage: 230/24 V

  • Rating: 12 kVA

  • Rated current: 17 A

  • Fuse: 20 A

Spindle

  • Spindle type: Water-cooled motor spindle

  • Max. torque: approx. 15 Nm

Other machine details

  • Workpiece changing system: Integrated pallet changer (W-type)

  • Maintenance intervals noted: 8h, 50h, 200h, 500h, 2000h, 6000h

  • Lubrication requirements: INSK K11 / ALKANIA 2 (Shell)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Borja Garcia

Borja Garcia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
