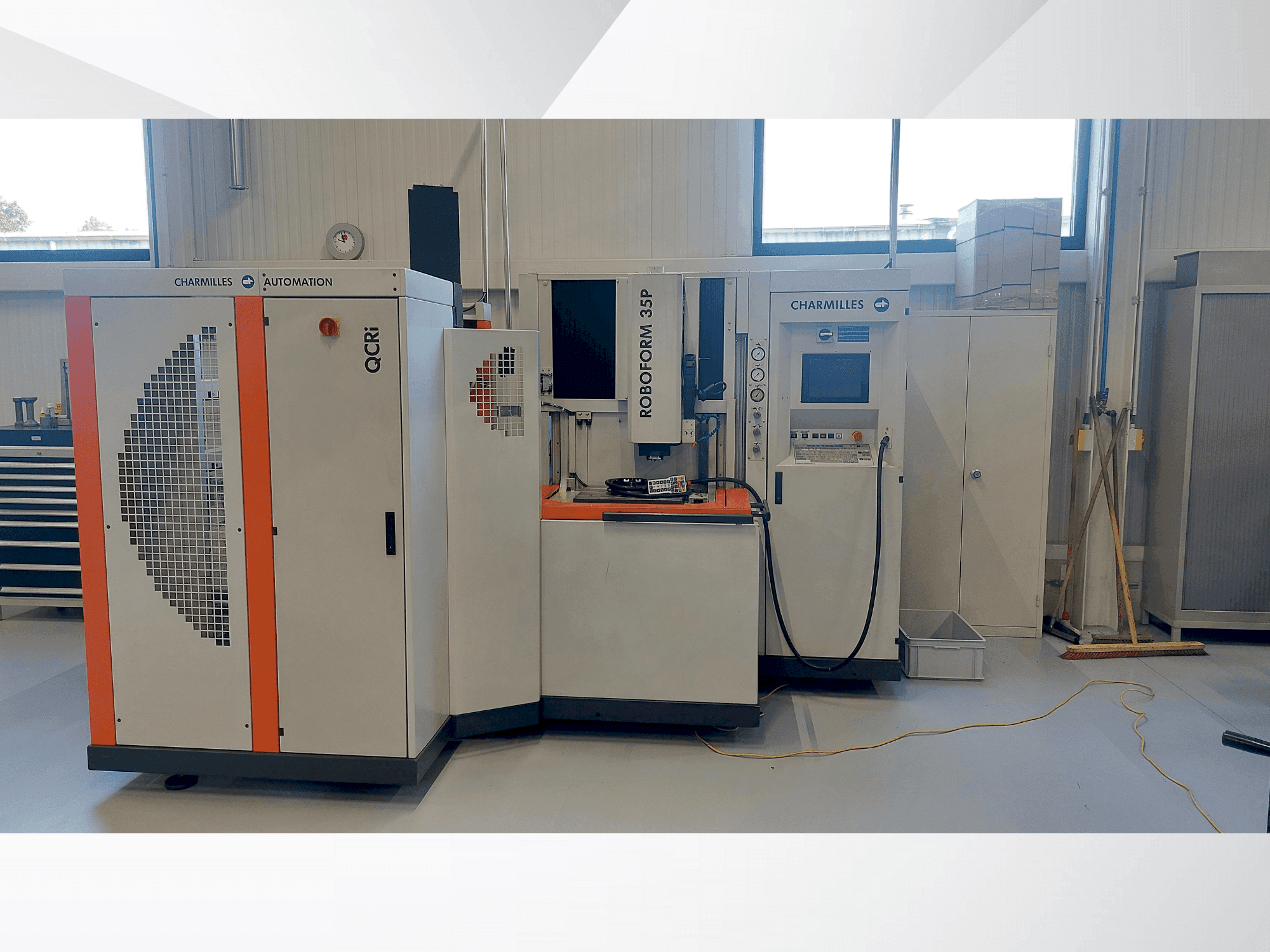

Front view of CHARMILLES ROBOFORM 35P  machine

CHARMILLES - ROBOFORM 35PBE-EDM-CHA-2001-00001

£ 16,350
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 3-axis CHARMILLES ROBOFORM 35P was manufactured in 2001. A robust die-sinking EDM machine, it features a worktank size of 800x550x370 mm and a table size of 800x550 mm. It can handle workpieces up to 780x530x300 mm and 500 kg. With a max machining current of 64 A, it's ideal for precise metal shaping. Consider the CHARMILLES ROBOFORM 35P machine we have for sale. Contact us for further details regarding this die-sinking EDM machine.

Overview

  • brand: CHARMILLES
  • year: 2001
  • MODEL: ROBOFORM 35P
  • application type: EDM
  • Location: Belgium
  • machine type: Die-Sinking EDM Machine
  • availability: Immediately

Technical Information - CHARMILLES ROBOFORM 35P

General Data

  • Measurements width: 1690 MM
  • Measurements depth: 1900 MM
  • Measurements height: 2400 MM
  • Machine weight: 2500 KG

Main drive

  • Working current: 64 A

Movement

  • X-AXIS Movement: 350 mm
  • Y-AXIS Movement: 250 mm
  • Z-AXIS Movement: 300 mm

Workpiece

  • Workpiece x: 780 mm
  • Workpiece y: 530 mm
  • Workpiece z: 300 mm
  • Workpiece weight: 500 kg

Table

  • Outer length: 800 mm
  • Outer width: 550 mm

    Additional Equipment

    • - QCRi

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Worktank length: 800 mm
        • - Worktank width: 550 mm
        • - Worktank height: 370 mm

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
