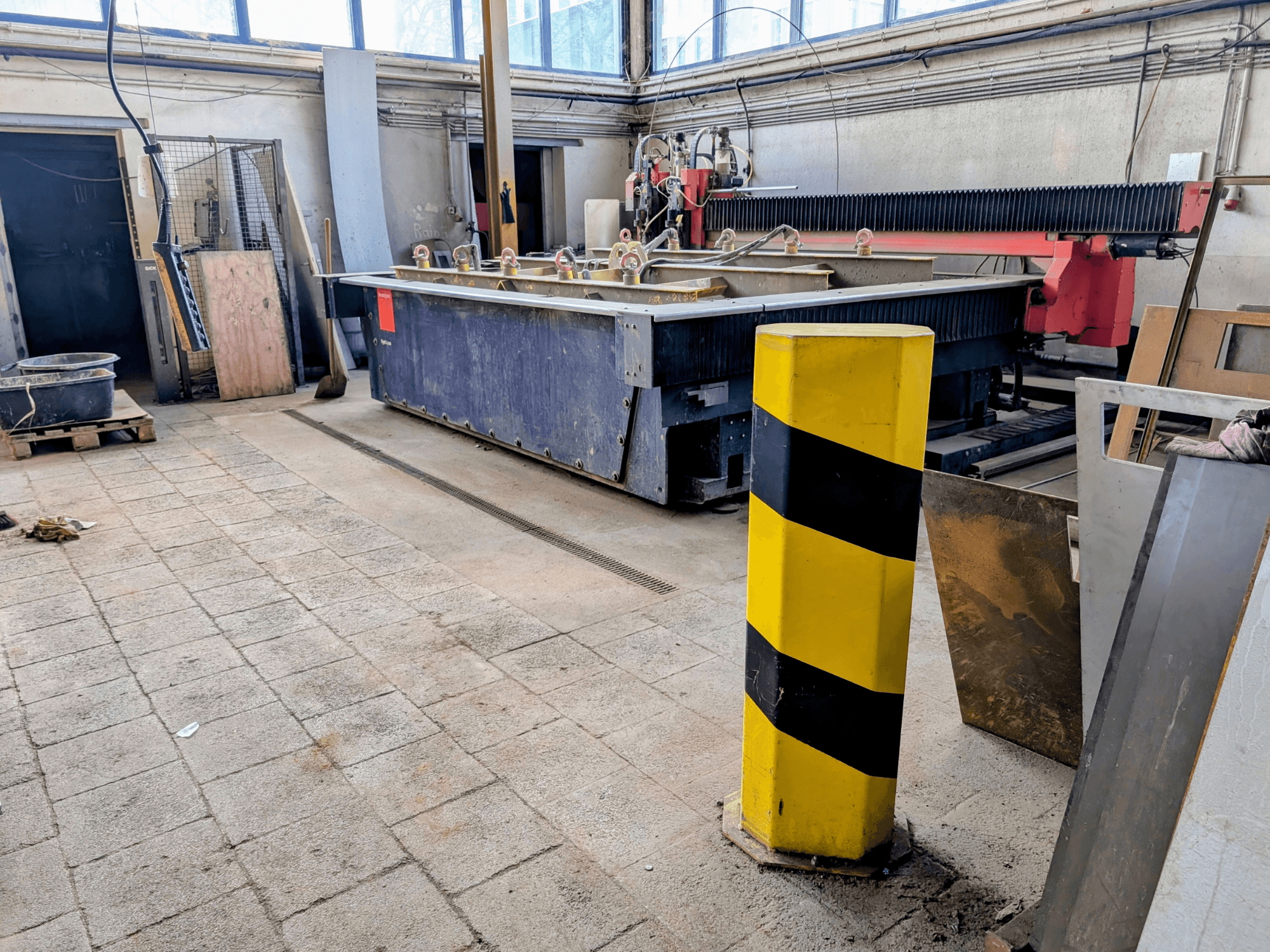

Bystronic - Byjet L 2030DE-CUT-BYS-2004-00001

• Machine Tolerance (VDI 3441): ±0.05 mm/m

• Repetition Tolerance: ±0.025 mm/m

• Max. Simultaneous X/Y Positioning Speed: 56 m/min

• Max. Cutting Speed: 30 m/min

• Max. Material Thickness (loadable): 200 mm

• Max. Workpiece Weight (flat part): 4,740 kg

• Cassette Size (with integrated grate): 2000 x 3000 mm

• Grate Slat Load Capacity (standard): 250 kg

• Machine Weight (with options/aggregates): 11,300 kg

• Machine Weight (fully loaded with steel): 40,100 kg

• CNC Rotary Axis: Max pipe length 1700 mm, max diameter 200 mm (with centers) / 500 mm (with custom jaws), max weight 500 kg

• Drilling Axis: Max diameter 3 mm, max depth 70 mm, speed 2600 U/min

• Pump Type: Bypump 50 APC

• Max. Dynamic Pressure: 3800 bar

• Connected Load (Total): 61 KVA

• Input Voltage: 3 x 400 V, 50/60 Hz

• Operating Hours: 18,118.3 hours

Additional equipment

• Lifting Yoke Max. Load (single cassette): 4,500 kg

• Cooling Unit: WKL 140 S3
