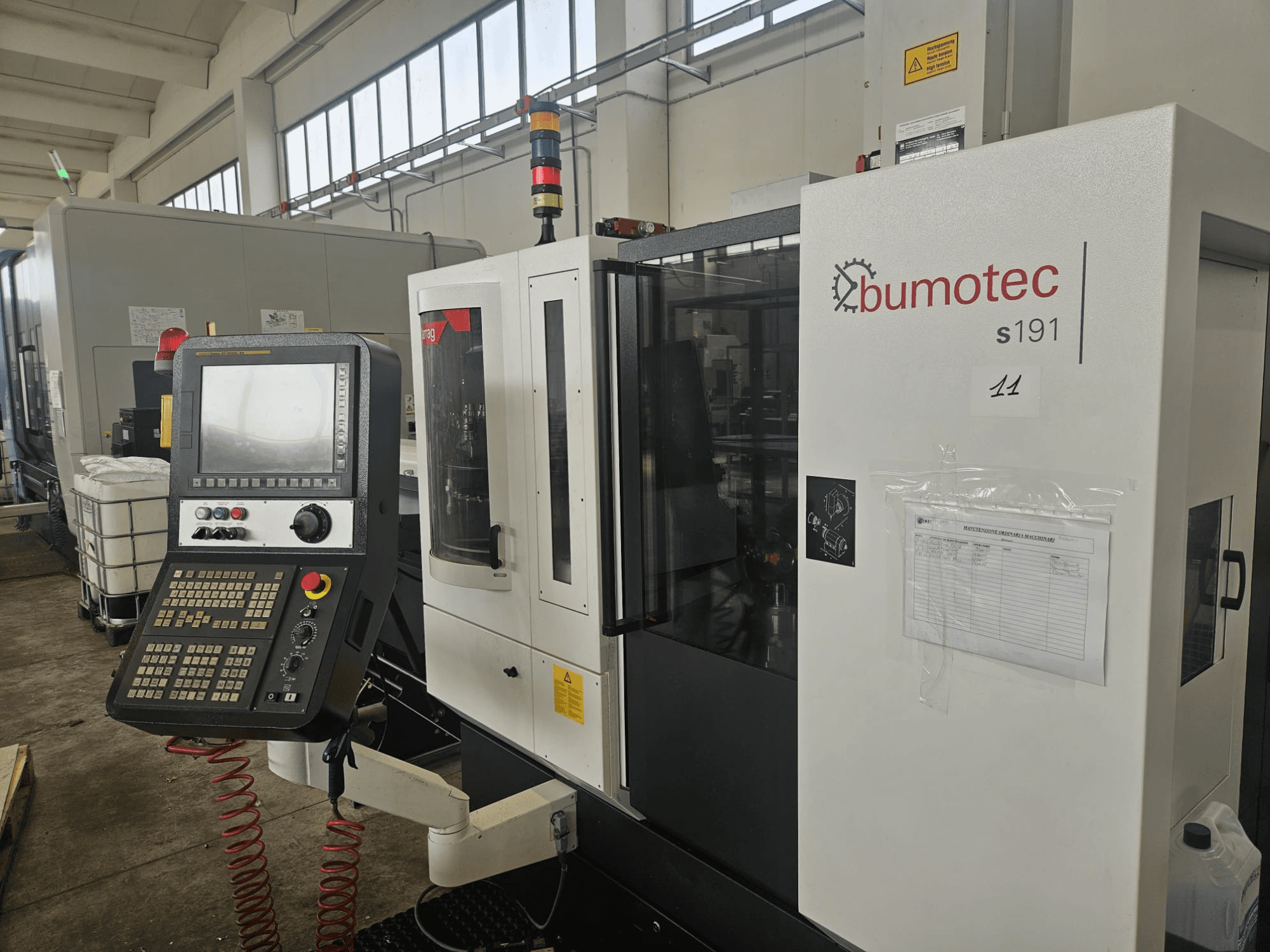

This 5-axis Bumotec s191 was manufactured in 2021. It features a CNC control with a FANUC 31i system and a 15” LCD screen. The machine offers impressive travels with an X-axis of 410 mm, Y-axis of 200 mm, and Z-axis of 400 mm. With a maximum spindle speed of 30,000 rpm and a tool changer with 30 positions, this turn-mill centre is designed for high-quality machining capabilities. Consider the opportunity to buy this Bumotec s191 turn-mill centre. Contact us for further details.
Overview
- brand: Bumotec
- year: 2021
- MODEL: s191
- application type: Turning
- Location: Italy
- machine type: Turn-Mill Centre
- control unit brand: FANUC
Technical Information - Bumotec s191
Control Unit
- Control Brand: FANUC
- Control Model: 31i
Dimensions
- Machine Height: 1990 mm
- Machine Length: 2200 mm
- Machine Weight: 4200 kg
- Machine Width: 1900 mm
Movement
- X-axis Travel: 410 mm
- Y-axis Travel: 200 mm
- Z-axis Travel: 400 mm
Additional Information
Total installed power: 25 kVA
Power supply: 400V / 50 Hz
CNC: FANUC 31i
Display: 15” LCD screen
Ethernet + Data Server
TCPC 5-axis simultaneous machining
Resolution: 0.1 µm
Measuring system: 10 nm optical scales
Rapid traverse X/Y/Z: 40 m/min
Acceleration: 8 m/s²
Tool Changer: 30 positions HSK 40
Tool change time: 1.2 s
Chip-to-chip time: 4.4 s
Max tool diameter: 40 mm
Max tool length: 150 mm
Max tool weight: 1.5 kg
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
