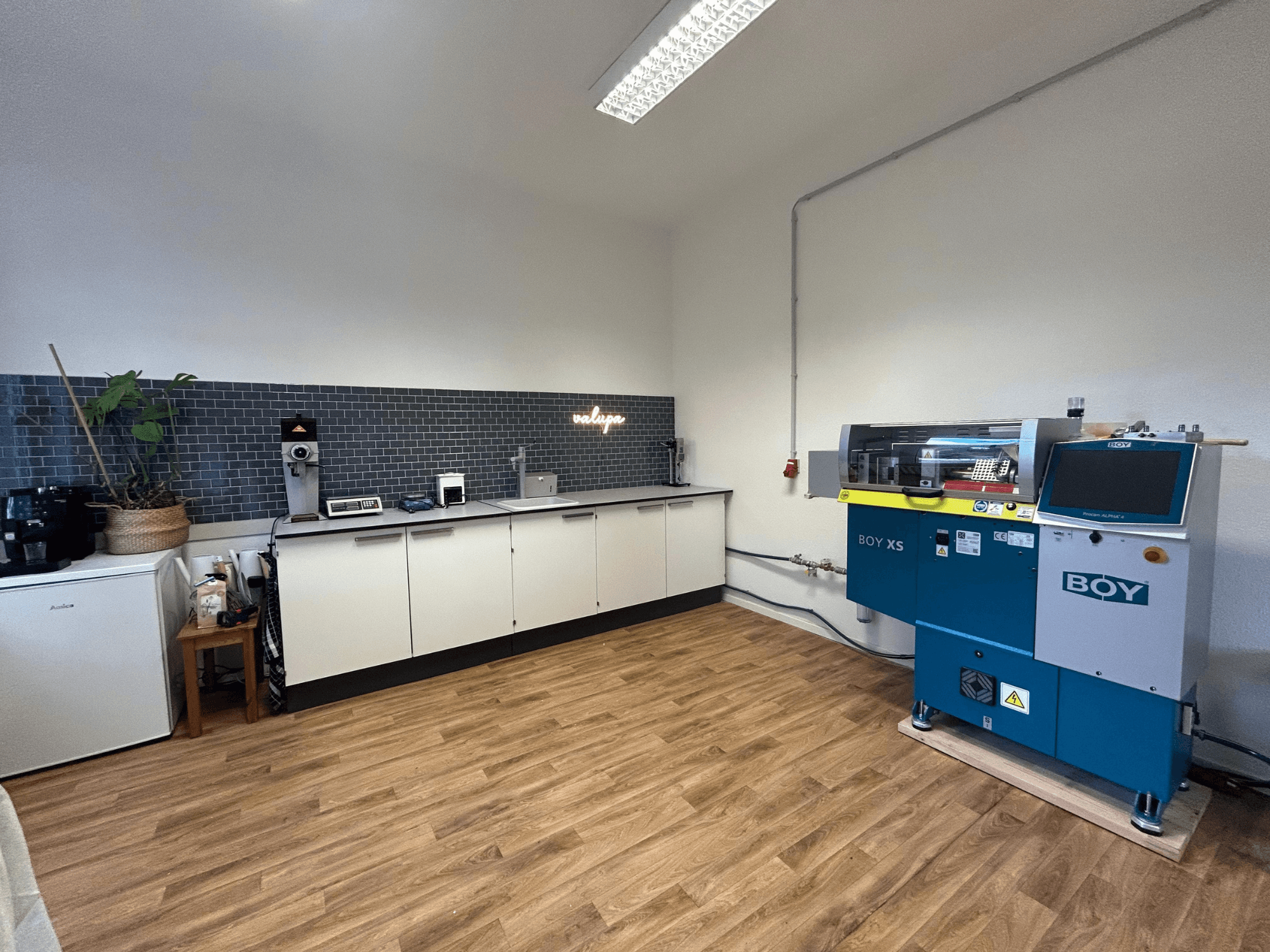

Hydraulic injection moulding machine BOY XS 161, front view, in a modern kitchen setting with appliances and wooden flooring.
Hydraulic injection moulding machine BOY XS 161, front view, in a modern kitchen setting with appliances and wooden flooring.

BOY - XS 161DE-INJ-BOY-2024-00002

£ 22,515
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

Hydraulic injection moulding machine manufactured in 2024. This BOY XS 161 features a clamping force of 100 kN and a maximum injection pressure of 2298 bar. It includes a 14 mm screw diameter and a theoretical shot volume of 6.1 cm³. If you are looking to get high-quality injection moulding capabilities, consider the BOY XS 161 machine we have for sale. Contact us for further details.

Overview

  • brand: BOY
  • year: 2024
  • MODEL: XS 161
  • application type: Injection Moulding
  • Location: Germany
  • machine type: Hydraulic Injection Moulding Machine

Technical Information - BOY XS 161

Dimensions

  • Machine Weight: 450 kg

Technical Specification

  • Clamping Force: 100 kN
  • Max. Shot Weight: 5.6 g
  • Screw Diameter: 14 mm

Additional Information

  • Control system: Procan ALPHA 4, 15" multi-touch HMI

  • Injection pressure: max. 2298 bar (with 14 mm screw)

  • Theoretical shot volume: 6.1 cm3

  • Distance between tie bars: 160 mm (205 mm diagonal)

  • Max. daylight between platen: 250 mm

  • Adjustable opening stroke: 150 mm

  • Min. mold height: 100 mm (optional 50 mm)

  • Hydraulic system pressure: 300 bar

  • Oil tank capacity: 28 liters

  • Installed total power: 6.1 kW

  • Electrical supply: 400 V 3~ N, 50/60 Hz, 12.4 A

  • Machine dimensions (L x W x H): 1485 x 526 x 1380 mm

  • Footprint: 0.78 m2

  • Safety guarding: Fully enclosed clamping zone with clear polycarbonate sliding safety gate and electrical interlock

  • Peripheral interfaces: Pneumatic and cooling water connectors on the non-operator side

  • Status indicators: 3-tier LED signal tower (Red/Yellow/Green)

Additional equipment (accessories)

  • 3-liter gravity material hopper

  • Red 16A CEE power plug

  • Heavy-duty wooden transport/leveling base

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
