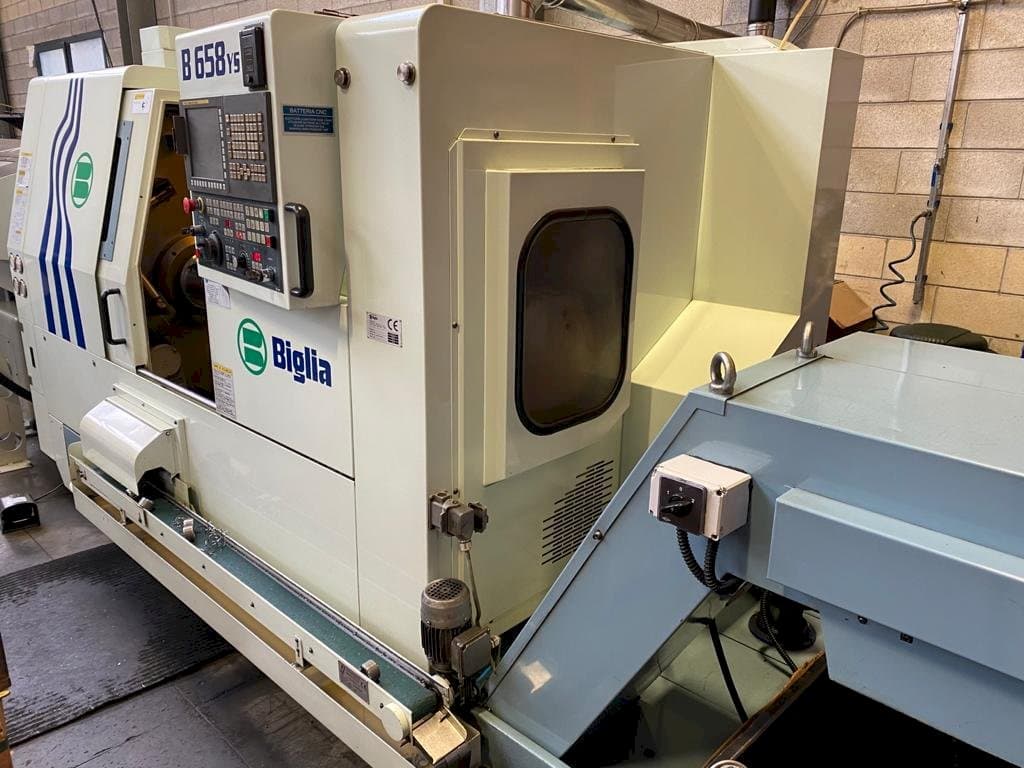

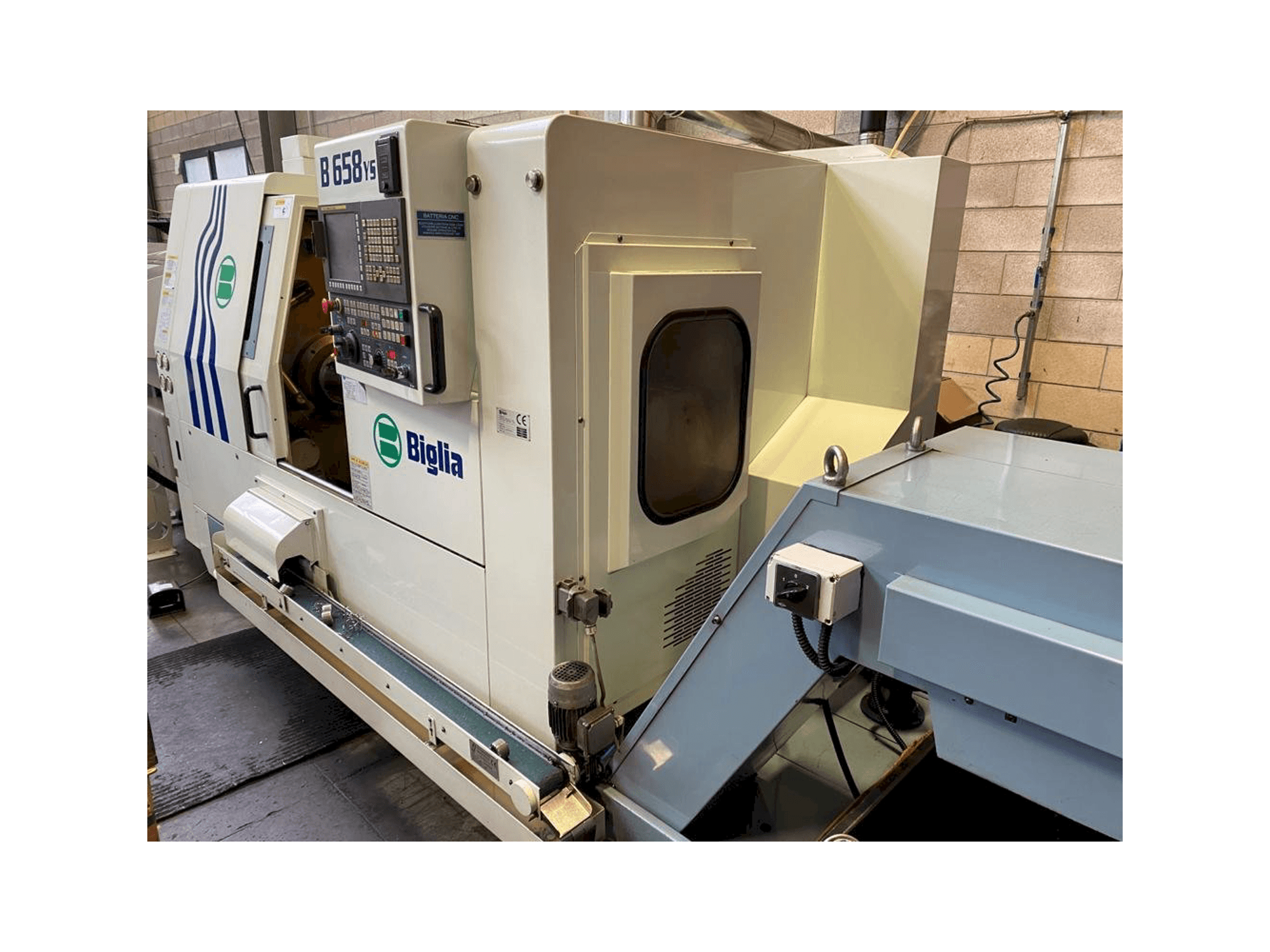

BIGLIA B658 YS lathe machine

Show in original language

This BIGLIA B658 YS lathe machine was manufactured in 2010. It has a total of 3202 production hours. The machine is operated through a FANUC 31I-T control unit. The machine has a spindle speed up to 3500 rpm. It includes a tool setter, a kit full for bar feeder, an Axial rotary tools, and more additional equipment.

Overview

brand: Biglia
year: 2010
MODEL: B658 YS
production hours: 3202
application type: Turning
Location: Italy
machine type: Turn-Mill Centre
control unit brand: FANUC

Technical Information - Biglia B658 YS

General Data

Measurements width: 4450 mm
Measurements depth: 2000 mm
Measurements height: 2100 mm
Machine weight: 6500 kg

Control Unit

Model: 31I-T
Brand: FANUC

Main drive

Spindle speed range: 3500 1/MIN
Spindle motor power: 22 Kw

Movement

X-AXIS Movement: 255 mm
Y-AXIS Movement: 110 mm
Z-AXIS Movement: 670 mm
B-AXIS Movement: 660 mm

Turret

Number of turrets: 12
Number of tool slots: 12

Additional Equipment

- Chuck diameter 315 mm for main spindle
- Chuck diameter 210 mm for sub spindle
- Software for monitoring power axis
- KIT full for bar feeder
- Manual Guide fo reasy programming
- Tool setter
- Axial rotary tools
- Radial rotary tools

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max bar diameter: 80 mm
- - Max turning diameter: 410 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
