Biglia B 500 M

Photo Gallery

Biglia - B 500 MIE-TUR-BIG-1994-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Biglia B 500 M Lathe

Show in original language

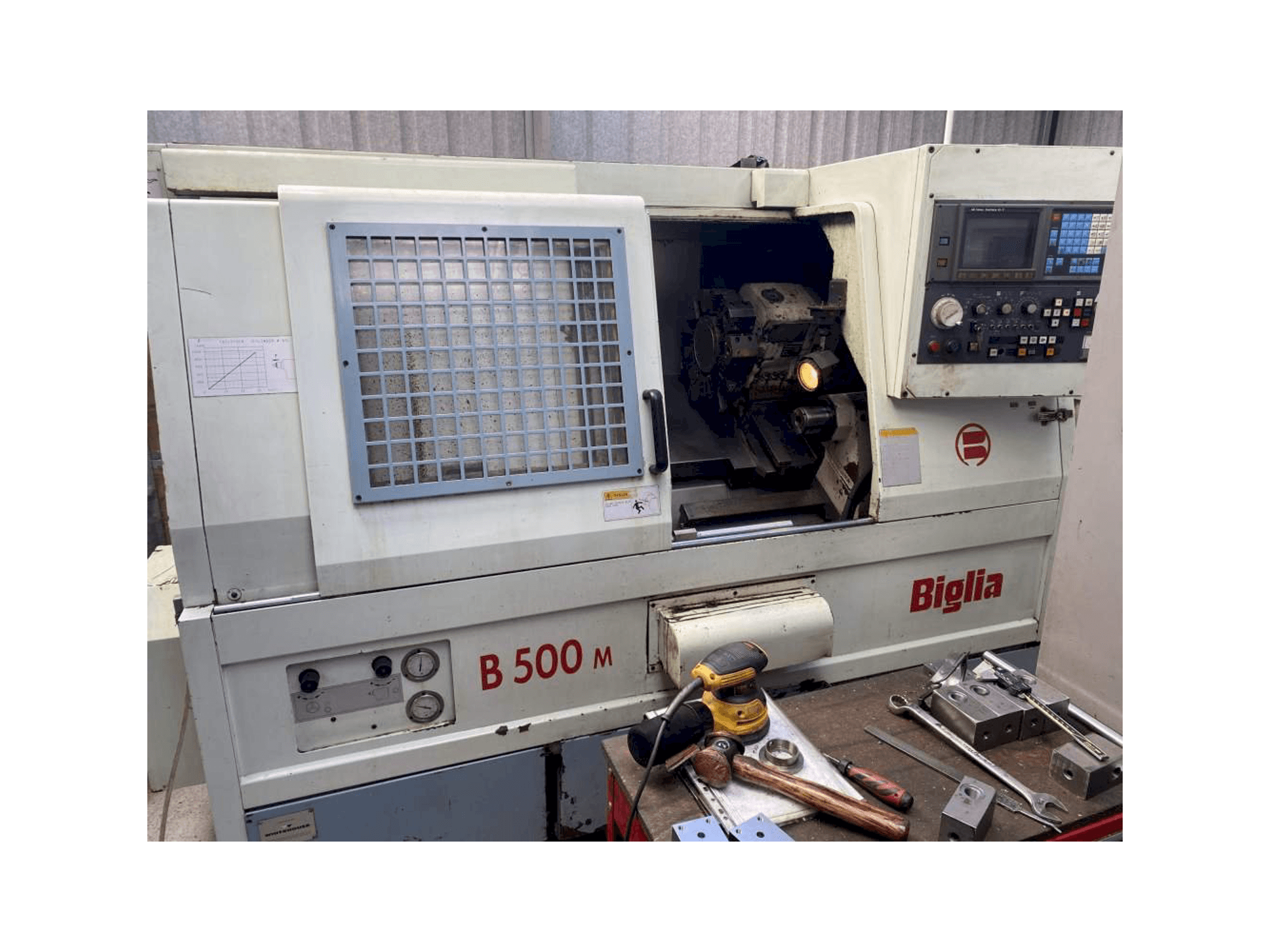

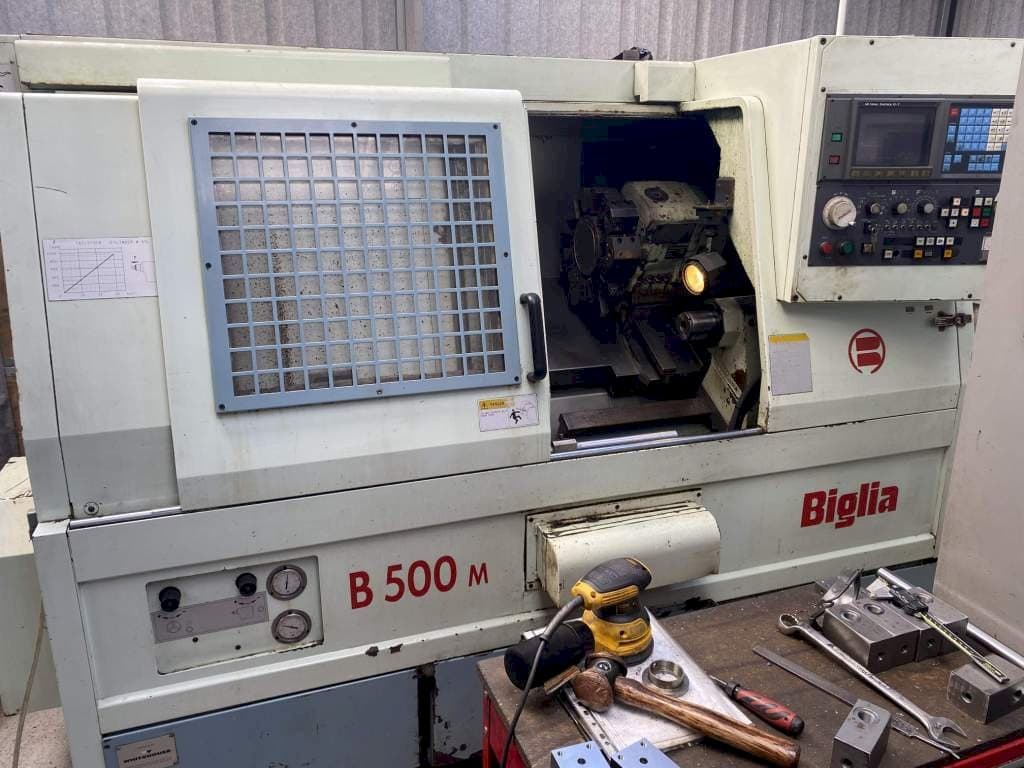

This Biglia B 500 M Lathe was manufactured in Italy in the year 1994. It is operated through a FANUC O-T control unit. This machine can work with a spindle speed up to 4000 rpm. It includes a hydraulic collect chuck.

Overview

brand: Biglia
year: 1994
MODEL: B 500 M
application type: Turning
Location: Ireland
machine type: Turn-Mill Centre
control unit brand: FANUC

Technical Information - Biglia B 500 M

Control Unit

Control Brand: FANUC
Control Model: O-T

Movement

X-axis Travel: 220 mm
Z-axis Travel: 500 mm

Technical Specification

Max. Workpiece Diameter: 520 mm
Spindle Speed: 4000 RPM
Tool Stations: 12

Additional Information

Additional equipment

Hydraulic Collet Chuck

Machine Benefits

Technical Machine Benefits

Turret: duplomatic bsv-n 200-12
Turret type: 12 station turret with 4 driven stations
Tailstock: yes
Includes: hyd collect chuck, parts catcher + swarf conveyor
Spindle bore: 70mm

Machine History

End product

Components

Material type

Steel

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
