BEYELER PR6 1500 x 3100
BEYELER - PR6 1500 x 3100
2000
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Sheet Metal Machinery
- BEYELER PR6 1500 x 3100 Bending Machine

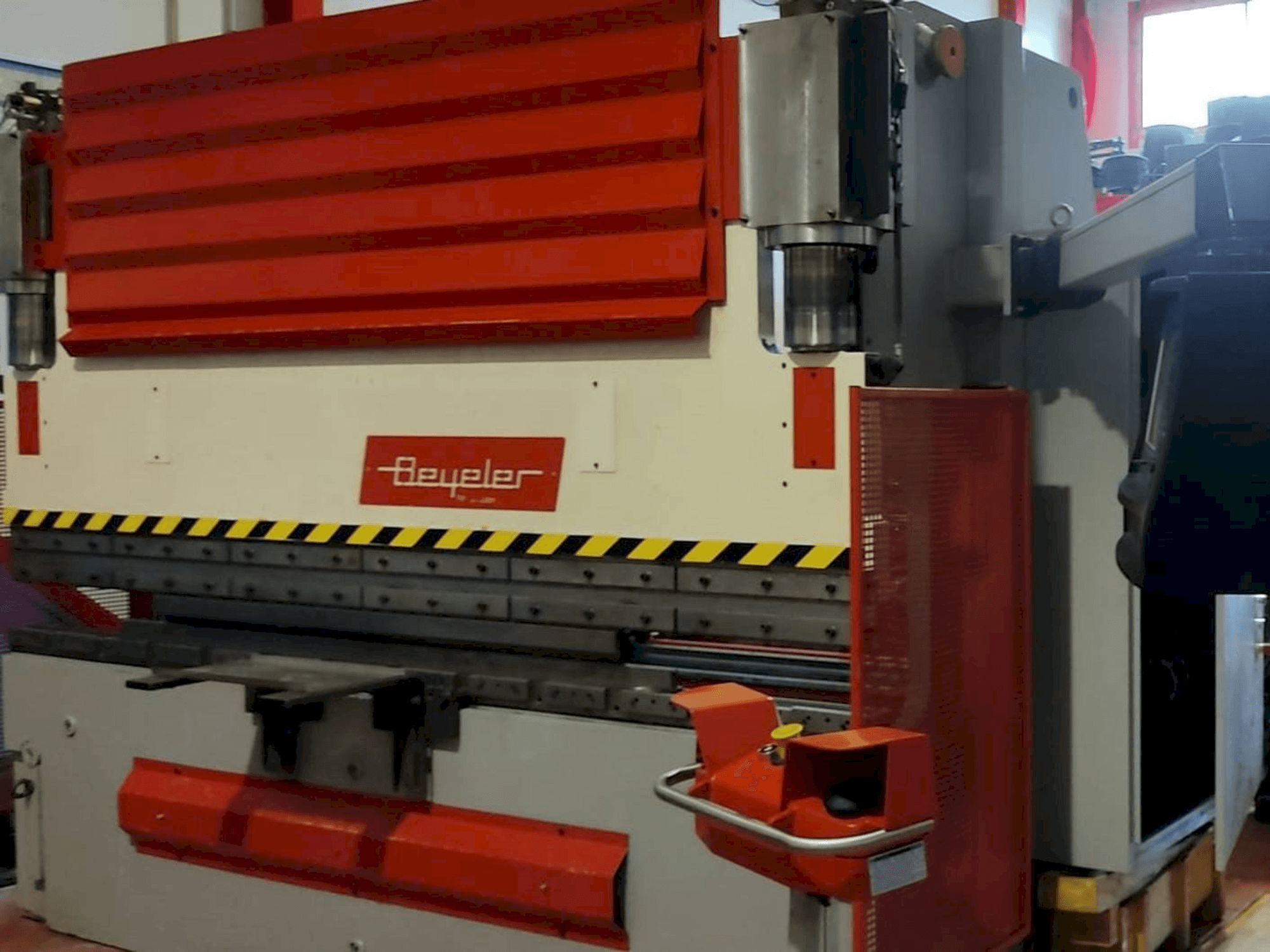

This BEYELER PR6 1500 x 3100 Bending Machine was manufactured in 2000. It is operated through a CYBELEC DNC 880 Control unit. This machine offers 1500 kN of pressing force and 3100 mm of bending length.
Overview
- brand: BEYELER
- year: 2000
- MODEL: PR6 1500 x 3100
- application type: Bending
- Location: Spain
- machine type: Bending machines
- availability: Sold
- control unit brand: Cybelec
- GINDUMAC ID: ES-BEN-BEY-2000-00001
Technical Information
General Data
- Machine weight: 9200 kg
Control Unit
- Brand: Cybelec
- Model: DNC 880
Main drive
- Pressing force: 1500 kN
- Bending length: 3100 mm
- Number of axis: 6
Additional Information
- Technical Machine Benefits:
- - Control to y1/y2/x/r/z1/z2 axes and compensation
- - Promecan punch clamping
- - Promecan matrix and center groove tie-downs
- - Distance between uprights 2800 mm
- - Maximum course 215 mm
- - Maximum opening (without intermediates) 480 mm
- - Gooseneck 410 mm
- - Electric motor power: 7. 5 kw
- - Approach speed 120 medium 200 maximum mm/s
- - Working speed 9 mm/s return speed 120 mm/s
- Qualitative Machine Benefits:
- - X axis: speed 400 mm/s. X axis: travel 660 mm
- - R axis: speed 120 mm/s r axis: travel 220 mm
- - Z1/z2 axis: speed 500 mm/s z1/z2 axis: travel 2750 mm
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
