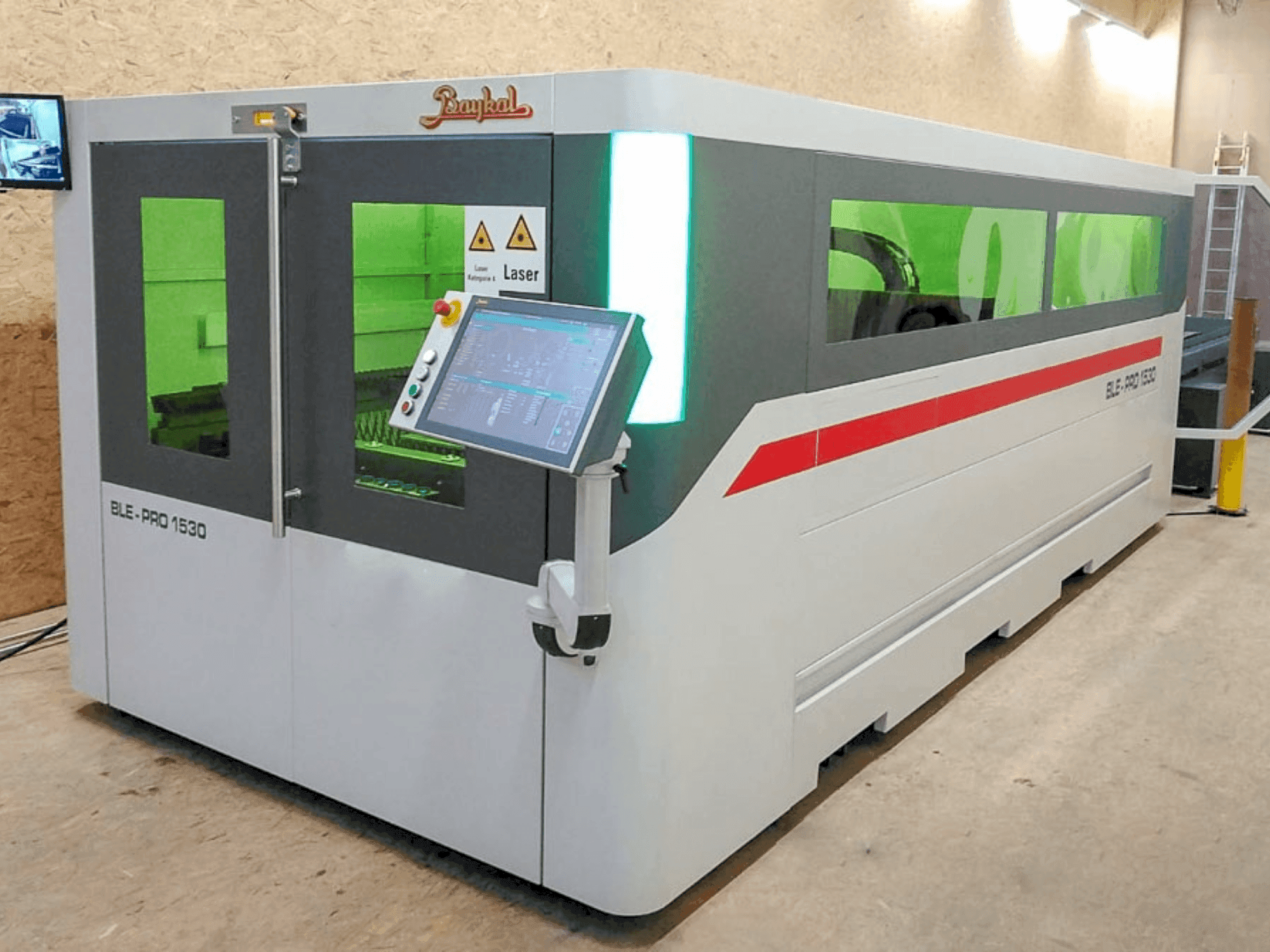

Front view of Baykal BLE PRO 1530  machine

Baykal - BLE PRO 1530HU-CUT-BAY-2022-00001

£ 190,950
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 3-axis Baykal BLE PRO 1530 was manufactured in 2022. It features a 4kW nLIGHT alta fiber laser source, Precitec cutting heads, and a BECKHOFF CNC control unit. The machine offers a maximum cutting width of 1500 mm and length of 3000 mm, with rapid traverse speeds up to 95 m/sec. Ideal for precision cutting, the Baykal BLE PRO 1530 fiber laser cutting machine we have for sale is equipped with dual circuit water cooling and an air-conditioned electrical cabinet. Contact us for more information.

Overview

  • brand: Baykal
  • year: 2022
  • MODEL: BLE PRO 1530
  • application type: Cutting
  • Location: Hungary
  • machine type: Fiber Laser Cutting Machine
  • availability: Immediately
  • control unit brand: BECKHOFF

Technical Information - Baykal BLE PRO 1530

General Data

  • Measurements width: 1500 mm
  • Measurements depth: 3000 mm

Control Unit

  • Brand: BECKHOFF

Main drive

  • Laserpower: 4kW
  • Number of axis: 3

Movement

  • X-AXIS Rapid traverse: 95 m/sec
  • Z-AXIS Rapid traverse: 95 m/sec

    Additional Equipment

    • - Precitec cutting heads
    • - nLIGHT alta fiber laser source
    • - Autofocus cutting head Precitec ProCutter 2.0
    • - Built-in sectional dust and smoke extraction 4000 m3/h
    • - 2 camera surveillance system
    • - UPS uninterruptible power source
    • - Nesting software: Lantek Expert Cut II/ Metalix Autonest Pro (option)

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - X-axis: related to max. Cutting width 1500 mm // y-axis: related to max. Cutting length 3000 mm
        • - Cnc controller: beckhoff, with 18. 5" monitor
        • - Servo drive: beckhoff
        • - Rack and pinion drive: wittenstein
        • - Max cutting width: 1500 mm // max cutting length: 3000 mm
        • - Drive (x, y axis): servo motor, rack, and pinion // drive (z axis): ball screw
        • - Vector speed: 135 m/sec (2060s)
        • - Axial acceleration: 1. 5 g (15 m/s²) (2060s)
        • - Programmable feed speed (max): 50 m/sec
        • - Absolute positioning accuracy: ± 0. 03 mm

      Extra information

      • - Repeatability (X and Y axis): ± 0.05 mm Type of Beam Transport: Fiber optic Automatic Nozzle Cleaning and Calibration: Yes Dual Circuit Water Cooling System: Yes Air-Conditioned Electrical Cabinet: Yes Lens Protector: Yes Waste Collection Trays: Yes Load Capacity of the Pallet Changing System: 1250 kg/pallet Autofocus Cutting Head: Precitec ProCutter 2.0 Dust and Smoke Extraction System: PL4000 built-in sectional, 4000 m³/h Laser Source (Resonator): 4kW nLIGHT alta Camera Surveillance System: 2 cameras UPS (Uninterruptible Power Source): Yes Nesting Software: Lantek Expert Cut II

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
