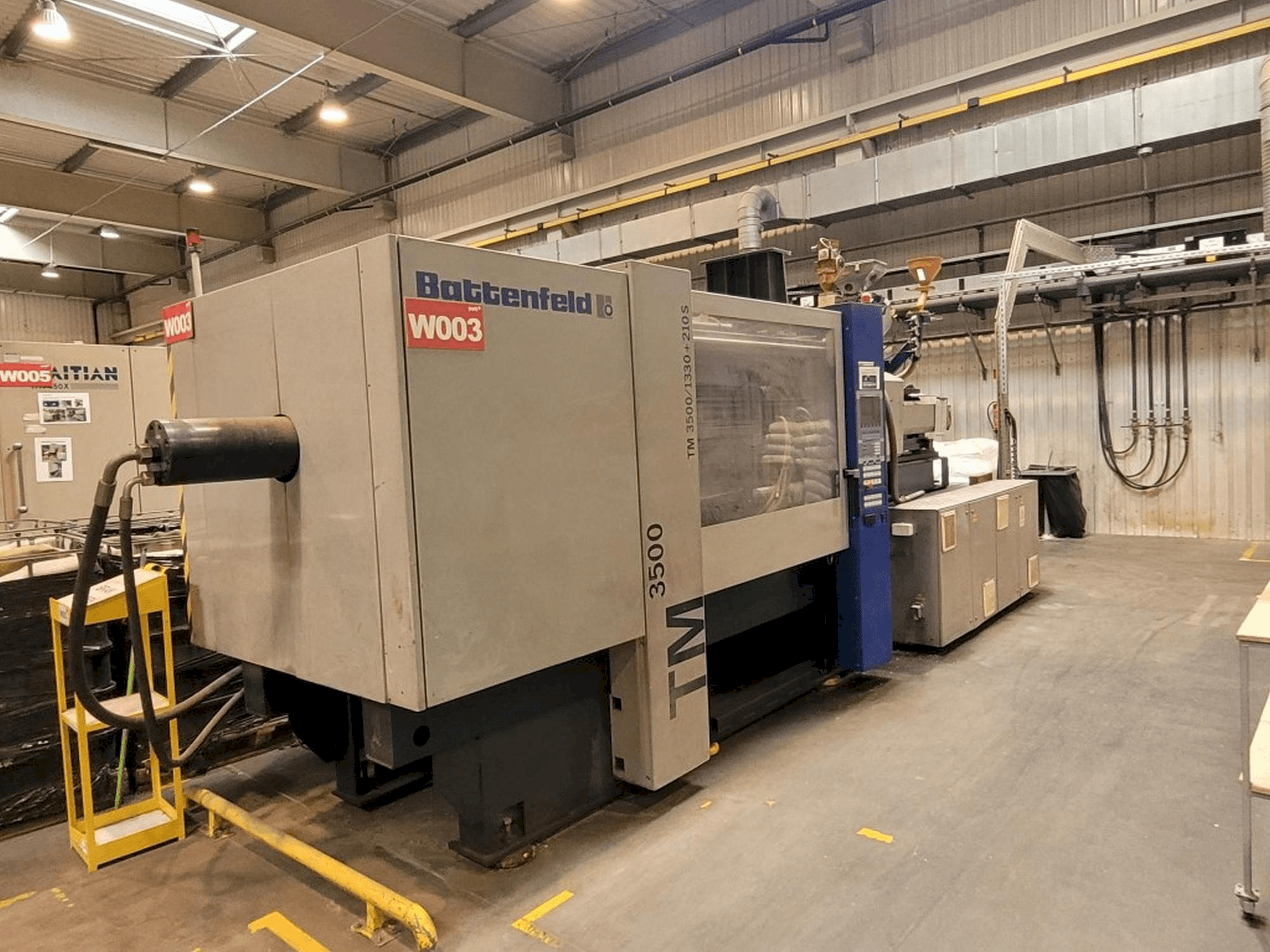

Battenfeld TM 3500/1330+210S

Photo Gallery

Battenfeld - TM 3500/1330+210SPL-INJ-BAT-2004-00003

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
Battenfeld TM 3500/1330+210S Injection moulding machine.

Show in original language

This Battenfeld TM 3500/1330+210S Injection moulding machine was manufactured in the year 2004 and has 73924 working hours. It is equipped with a Battenfeld UNILOG B4 control unit. The machine has a clamping force of 3500 kN and it is equipped with 2 core hydraulics.

Overview

brand: Battenfeld
year: 2004
MODEL: TM 3500/1330+210S
production hours: 73924
application type: Injection Moulding
Location: Poland
machine type: Hydraulic Injection Moulding Machine
control unit brand: BATTENFELD

Technical Information - Battenfeld TM 3500/1330+210S

Control Unit

Control Brand: BATTENFELD
Control Model: UNILOG B4

Technical Specification

Clamping Force: 3500 kN

Additional Information

Additional equipment

it is equipped with 2 core hydraulics

Machine Benefits

Qualitative Machine Benefits

Ps injection weight - unit a 480 g
Injection size ps - unit b 67 g, injection size pp - unit a 393. 6 g. Injection size pp - unit b 55 g
Oil tank capacity 800 l
Oil type mobil dte excel 46
Central lubrication orlen velol rc 220
Oil of the aggregate access system none
Pump motor power 75 kw
Cylinder heating power 25 kw

Technical Machine Benefits

Clearance between columns - horizontal 710 mm , clearance between columns - vertical 710 mm
Width of table 1010 mm
Table height 1080 mm
Diameter of centering ring - closing 160 mm. Diameter of centering ring - nozzle a 160 mm. Diameter of centering ring - nozzle b 140 mm
Mould height - min 300 mm. Mould height - max 710 mm
Max. Opening distance 670 mm, max. Distance between plates 1380 mm
Ejector stroke 200
Auger diameter a 55 mm, auger diameter b 25 mm
Injection pressure 2041 bar

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
