➤ Used BARTH VMPH 3013 For Sale | gindumac.com

Show in original language

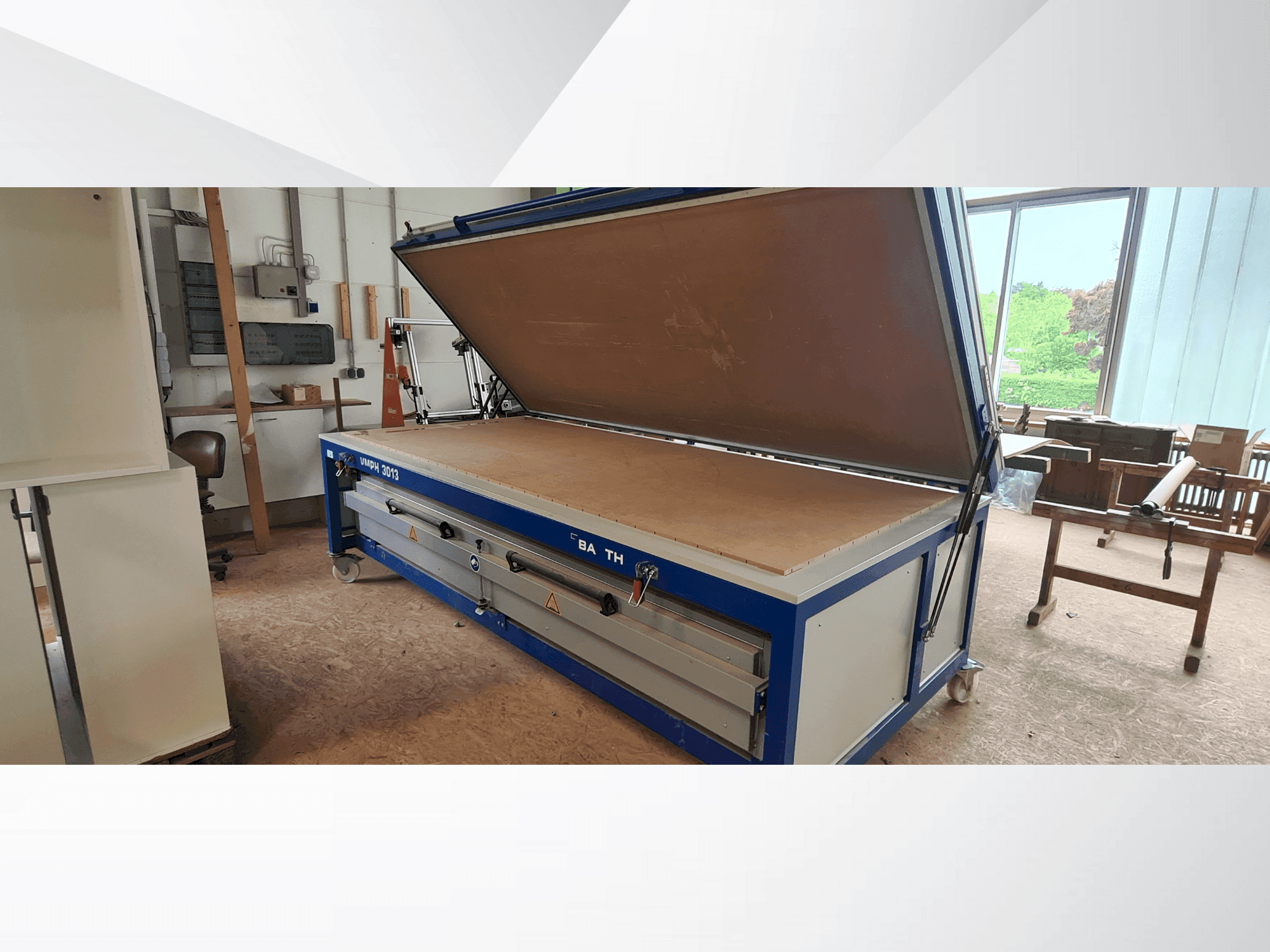

This BARTH VMPH 3013 laminating press was manufactured in 2015. It features dimensions of 3450 x 1800 x 950 mm and a clamping area of 3000 x 1320 mm. The vacuum table supports up to 200 kg with a maximum vacuum pressure of -0.95 bar. It operates on 400 VAC/50 Hz with a connected load of 12 kVA. Consider the opportunity to buy this BARTH VMPH 3013 laminating press. Contact us for more information about this machine.

Overview

brand: BARTH
year: 2015
MODEL: VMPH 3013
application type: Pressing / Laminating
Location: Germany
machine type: Laminating Press
availability: Immediately

Technical Information - BARTH VMPH 3013

General Data

Measurements width: 1800 MM
Measurements depth: 3450 MM
Measurements height: 950 MM

Table

Table load: 200 kg

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Maximum vacuum pressure (bar): -0. 95
- - Volume of vacuum storage (m³): 0. 25
- - Pump capacity of vacuum pump (m³/h): 25
- - Heating range (°c): 30 - 180
- - Operating voltage/frequency (vac/hz): 400 / 50
- - Connected load (kva): 12
- - Pre-fuse (a): 32
- - Temperature during operation/storage (°c): +10 to +35 / +5 to +45
- - Relative humidity (%): 5 to 80 (non-condensing)
- - Continuous sound pressure level (db(a)): < 70
Qualitative Machine Benefits:
- - Nominal suction capacity (50hz): 25 m³/h
- - Nominal motor power (50hz): 1. 0 kw
- - Nominal motor speed (rpm): 1500
- - Sound pressure level (en iso 2151, 50hz): 60 db(a)
- - Max. Water vapor tolerance (hpa/mbar): 4
- - Water vapor capacity (l/h): 0. 9

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
