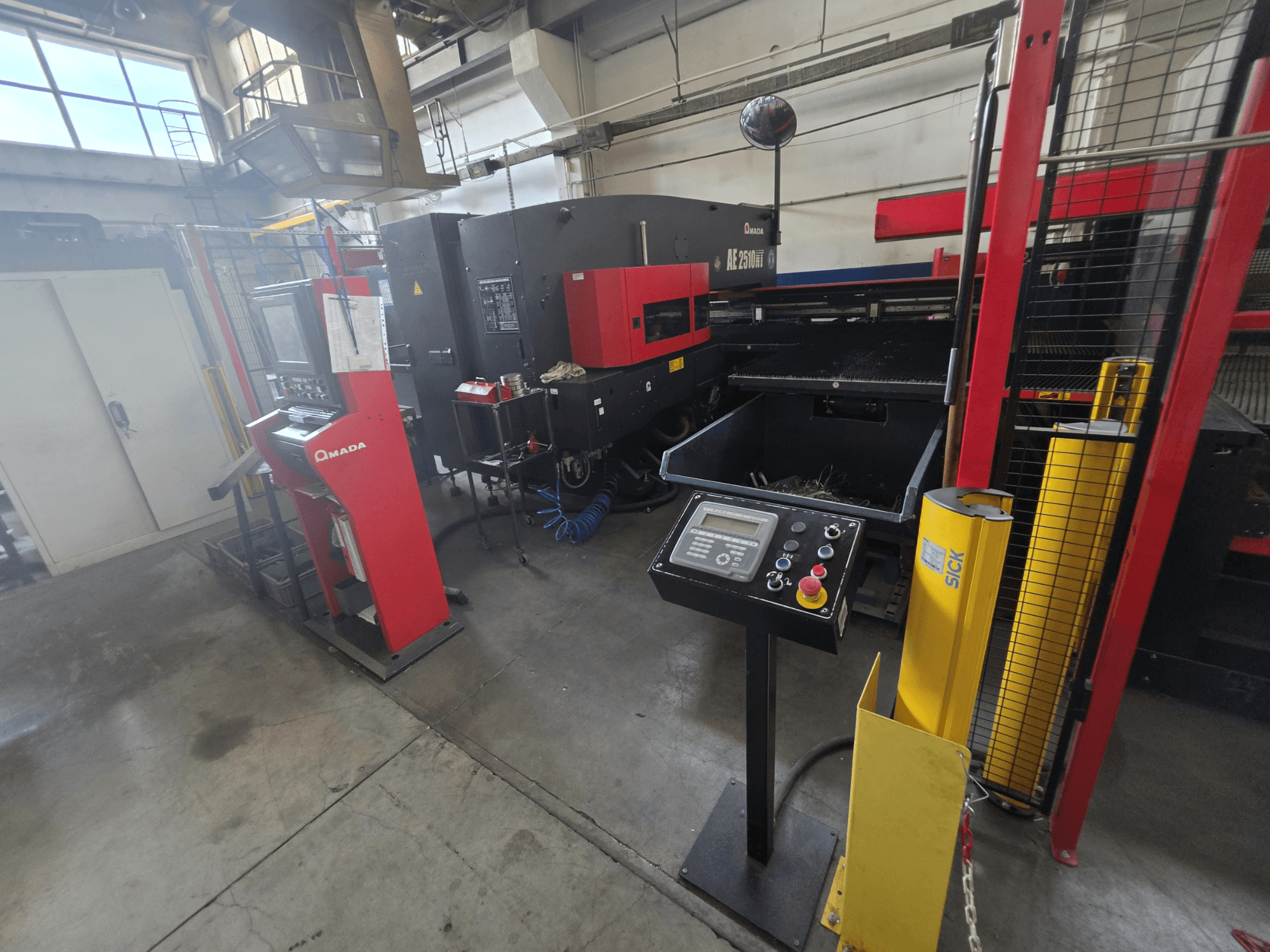

This 3-axis AMADA AE-2510NT CNC punching machine was manufactured in 2016. It features a punching force of 200 kN and a working area of 2500 x 1270 mm. The machine includes a turret capacity of 51 stations and a maximum punching speed of up to 370 hits/min. If you are looking to get high-quality punching capabilities, consider the AMADA AE-2510NT machine we have for sale. Contact us for further details.
Overview
- brand: AMADA
- year: 2016
- MODEL: AE-2510NT
- application type: Punching
- Location: Poland
- machine type: CNC Punching Machine
- control unit brand: FANUC
Technical Information - AMADA AE-2510NT
Control Unit
- Control Brand: FANUC
- Control Model: Series-31i-P MODEL B
Dimensions
- Machine Height: 2161 mm
- Machine Length: 4152 mm
- Machine Weight: 13000 kg
- Machine Width: 5120 mm
Technical Specification
- Max. Sheet Thickness: 3.2 mm
- Punching Force: 200 Kn
Additional Information
Status: Connected under power, fully operational, regularly maintained; can be inspected under power
Documentation: Complete machine documentation available
Tools: Tools visible in photos included (see Additional equipment)
Working area (X x Y): 2500 x 1270 mm
CNC axes: X, Y + Auto Index turret stations
Turret capacity: 51 stations
Positioning accuracy: ±0.10 mm
Max feed rate: X 80 m/min; Y 60 m/min
Max punching speed: up to 370 hits/min
Marking speed: up to 900 hits/min
Table: Brush table
Slug removal: Power vacuum slug removal system
Capabilities: Forming, embossing, marking
Electrical: 19 kVA; 3 x 200 V, 50 Hz
Noise level during punching: 95.9 dB(A)
Condition: Very good
Additional equipment

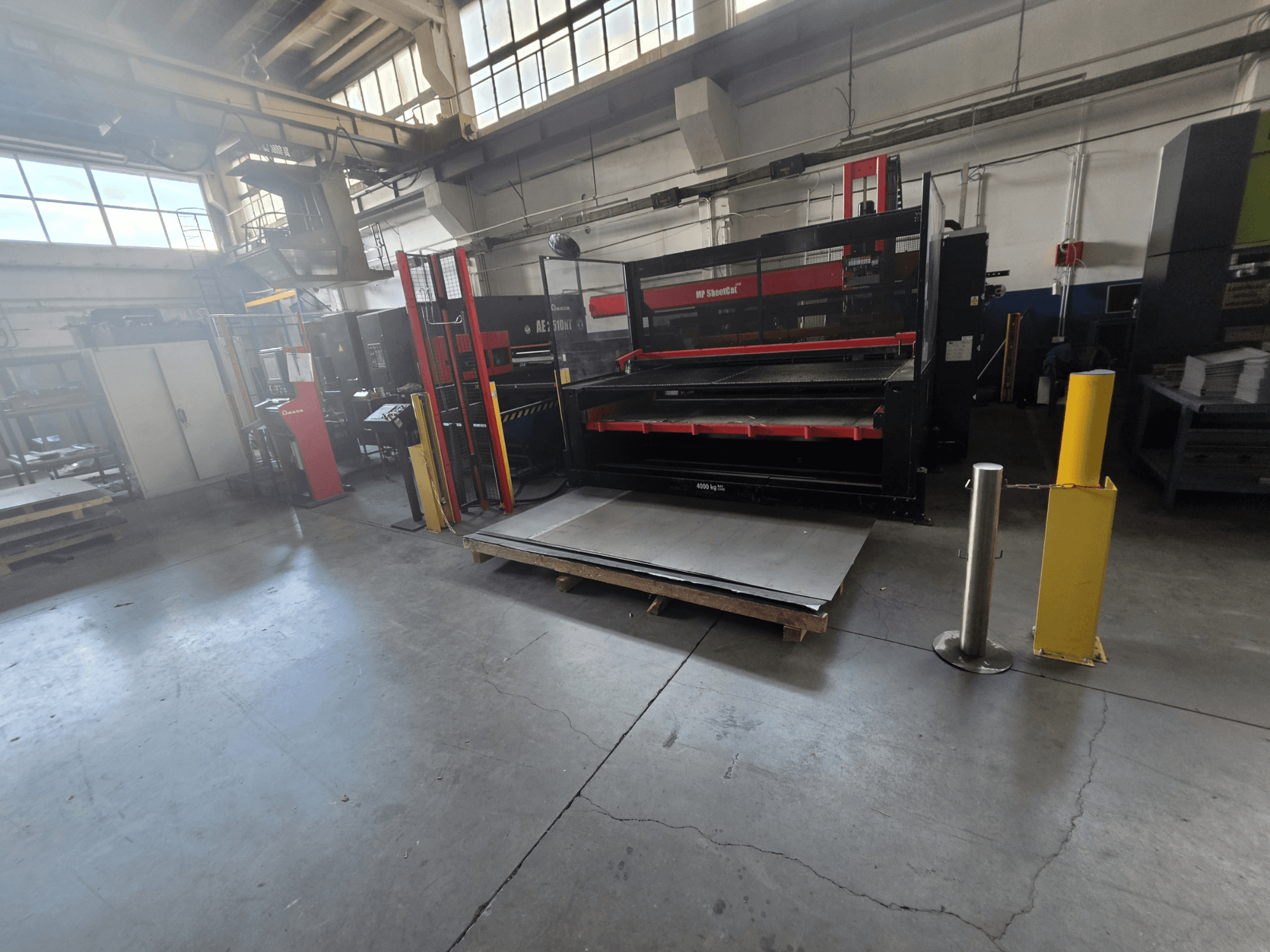

Automatic loading/unloading system: LKI Kaldman MP-2512 SheetCat (2015)
Function: Automatic sheet loader and unloader with loading and unloading pallets
Max sheet size: 2500 x 1250 mm
Power consumption: 4.5 kW; Electrical: 3 x 400 V, 50 Hz
Air consumption: 650 l/min at 6 bar
Dimensions (SheetCat): 5,100 x 3,580 x approx. 3,100 mm
Weight (SheetCat): 3,630 kg
Transformer
Tooling: Tool set as visible in photos
Documentation set
Overall line footprint (press + SheetCat): 10,850 x 6,900 x 3,190 mm; pass line height 1,040 mm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
