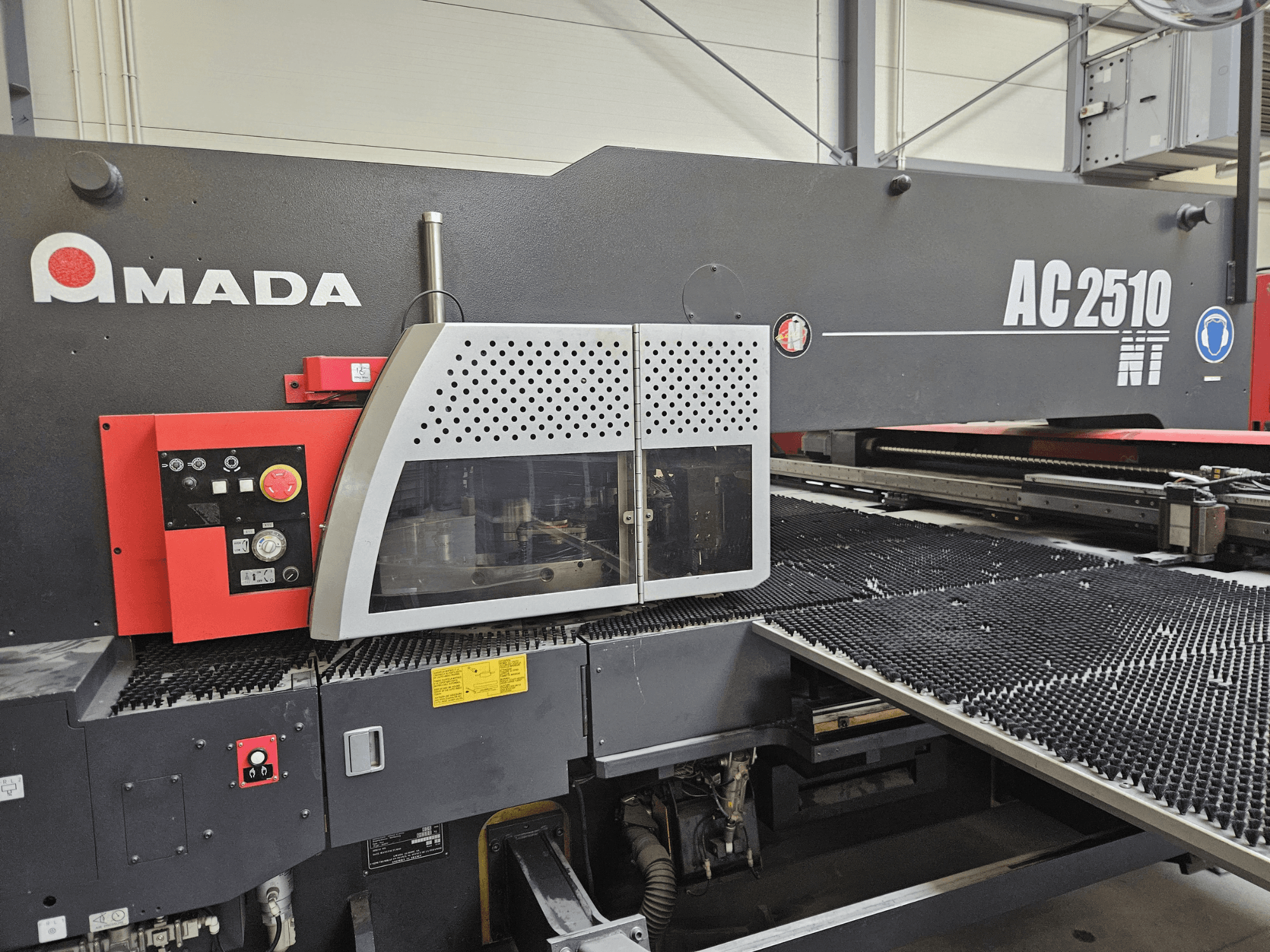

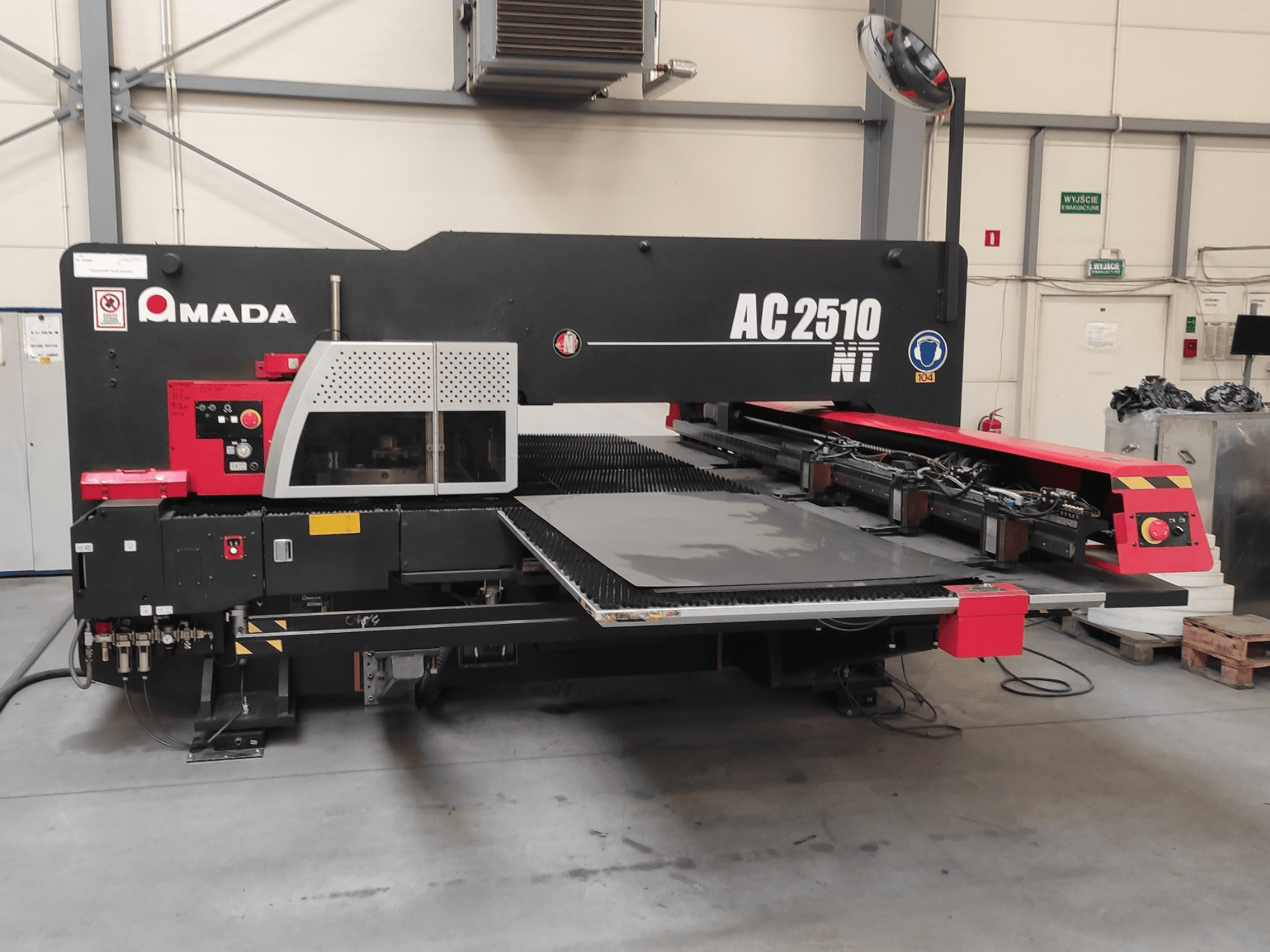

Amada AC2510 NT CNC punching machine, front view, featuring a control panel and sheet loading area.
Amada AC2510 NT CNC punching machine, front view, featuring a control panel and sheet loading area.

AMADA - AC2510 NTPL-PUN-AMA-2008-00001

£ 37,768
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This AMADA AC2510 NT was manufactured in 2008. It features a punching force of 200 kN and a turret capacity of 51 stations. It can handle sheet sizes up to 1270 × 5000 mm and thicknesses up to 3.2 mm. The machine supports a maximum sheet weight of 150 kg and offers high-speed turret indexing. If you are looking to get high-quality punching capabilities, consider the AMADA AC2510 NT machine we have for sale. Contact us for more information.

Overview

  • brand: AMADA
  • year: 2008
  • MODEL: AC2510 NT
  • production hours: 24490
  • application type: Punching
  • Location: Poland
  • machine type: CNC Punching Machine
  • control unit brand: AMADA

Technical Information - AMADA AC2510 NT

Control Unit

  • Control Brand: AMADA
  • Control Model: AMNC-F

Dimensions

  • Machine Height: 2082 mm
  • Machine Length: 4165 mm
  • Machine Weight: 13000 kg

Technical Specification

  • Punching Force: 200 Kn

Additional Information

  • Turret capacity: 51 stations

  • Maximum sheet size: 1270 × 5000 mm

  • Maximum sheet thickness: 3.2 mm (mild steel)

  • Maximum sheet weight:

    • 50 kg (feed speed F1)

    • 150 kg (feed speed F4)

  • X-axis travel: 2500 mm

  • Y-axis travel: 1270 mm

  • Positioning accuracy: ±0.1 mm

  • Strokes per minute:

    • 25.4 mm pitch (5 mm stroke, X-axis): 350 min⁻¹

    • 25.4 mm pitch (5 mm stroke, Y-axis): 260 min⁻¹

  • Maximum stroke length: 42 mm

  • Maximum feed speed:

    • X-axis: 80 m/min

    • Y-axis: 60 m/min

  • Turret indexing speed: 30 min⁻¹

  • Electrical connection power: 19 kVA

  • Machine width: 5120 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
