Zayer KP 6000 AR

Photo Gallery

Zayer - KP 6000 ARES-MIL-ZAY-2002-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

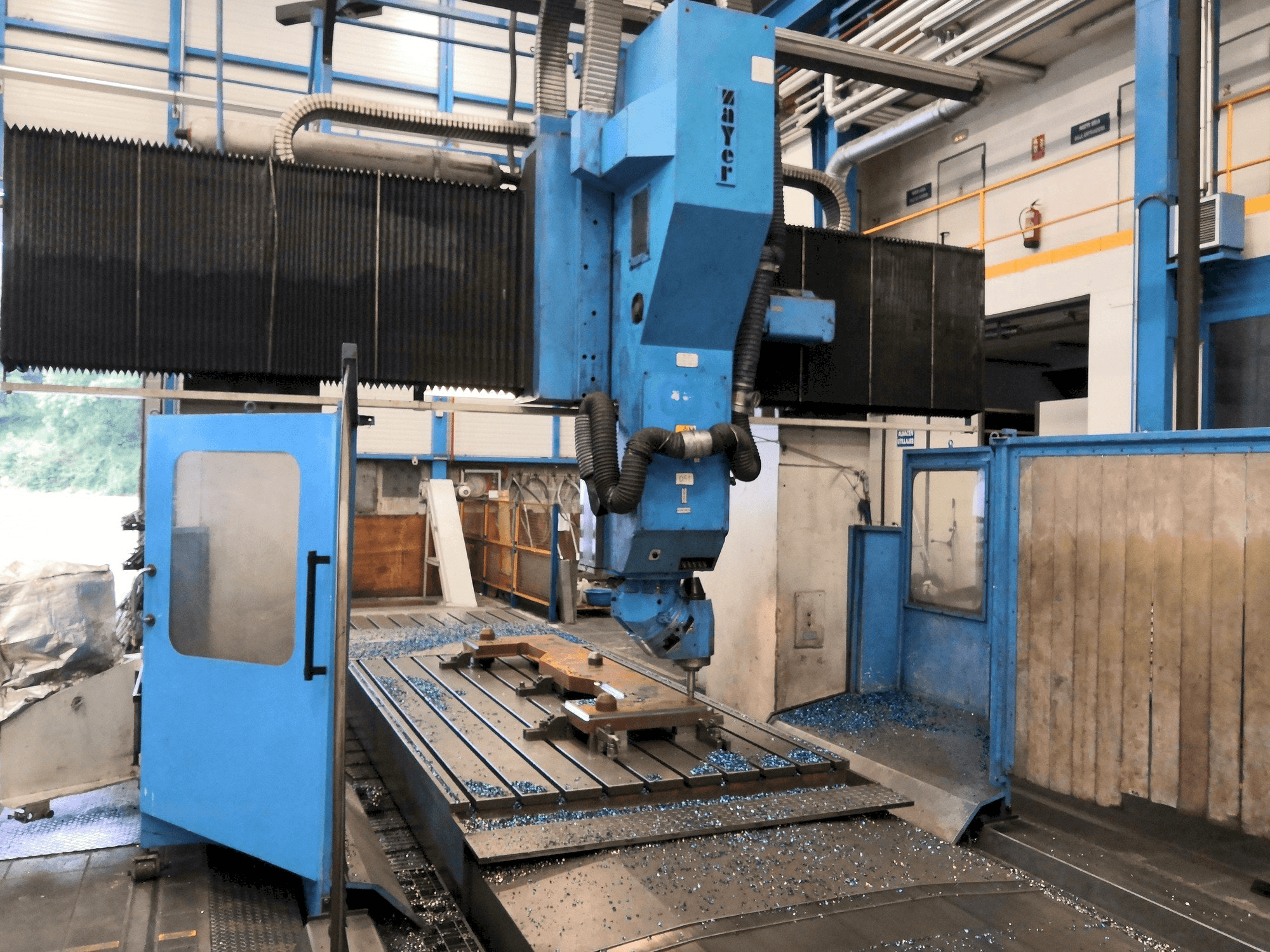

ZAYER KP 6000 AR Milling machine

Show in original language

This ZAYER KP 6000 AR Milling machine was manufactured in the year 2002 in Spain and has 48852 working hours. It is equipped with a FIDIA C1 control unit and has 5 axis. The machine has a spindle speed of 5500 rpm.

Overview

brand: Zayer
year: 2002
MODEL: KP 6000 AR
production hours: 48852
application type: Milling
Location: Spain
machine type: Gantry Milling Machine
control unit brand: FIDIA

Technical Information - Zayer KP 6000 AR

Control Unit

Model: C1
Brand: FIDIA

Main drive

Spindle speed range: 5500 1/MIN
Number of axis: 5

Movement

X-AXIS Movement: 6000 mm
Y-AXIS Movement: 3600 mm
Z-AXIS Movement: 1100 mm
C-AXIS Movement: 360 ª

Additional Information

Machine Benefits

Qualitative Machine Benefits

Bearings + extension head gears replaced at 43026h
Bearings + angular gearboxes replaced at 45682h
Z-axis motor replaced at 47260h.

Technical Machine Benefits

Spindle power control module installed
Air-cooled and external coolant
External dust extraction module installed. Maximum power 6 bar.
Make 800 mm depth bores
Only external cooling, air and coolant
Width between columns: 2800mm.
Gantry height to head: +/- 1100mm.
Gantry height without head: 1700mm.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
