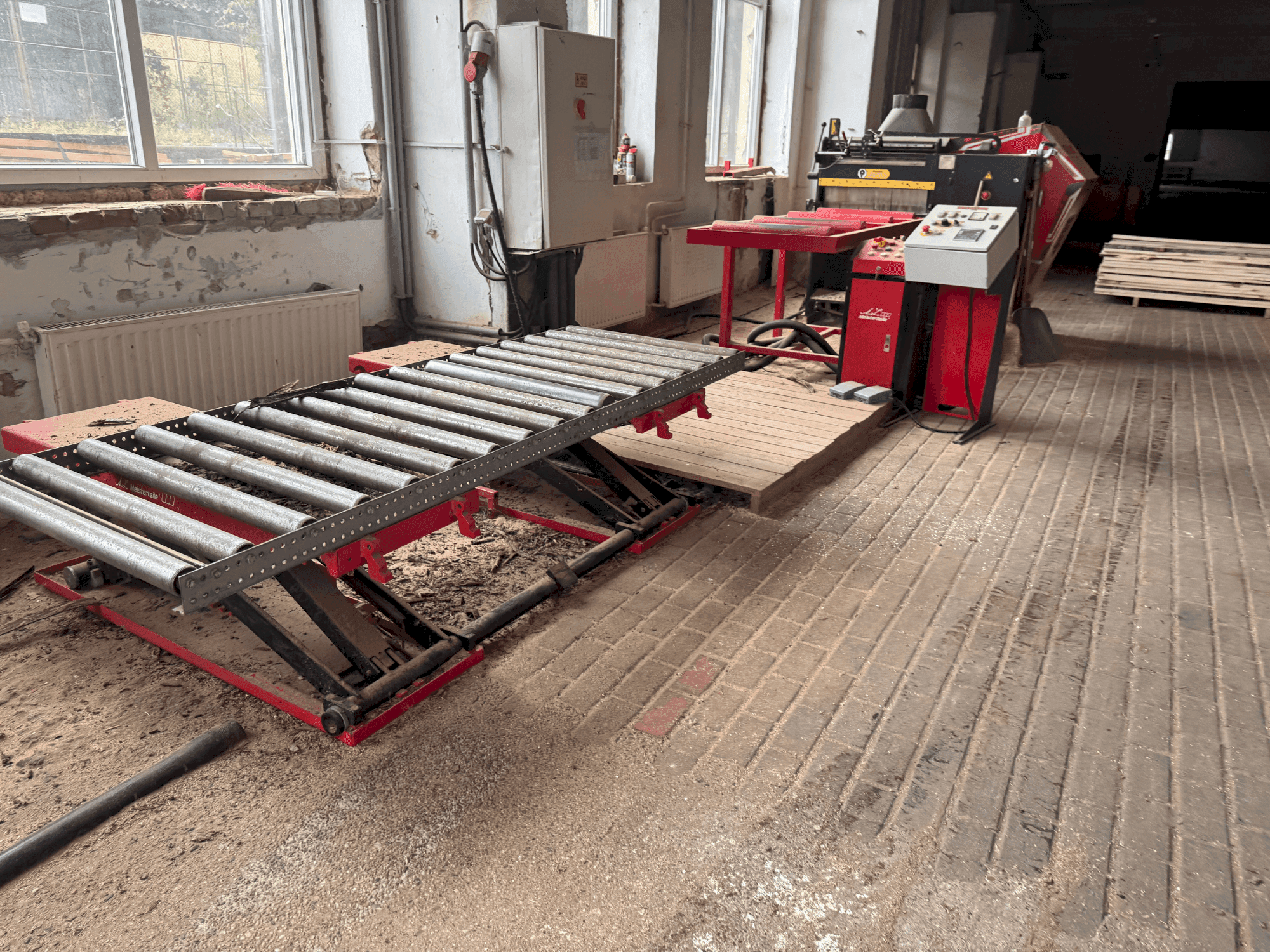

Front view of WRAVOR Multirip 750 20-100 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

WRAVOR Multirip 750 20-100

Photo Gallery

WRAVOR - Multirip 750 20-100HU-SAW-WRA-2023-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Wood Working
➤ Used WRAVOR Multirip 750 20-100 For Sale | gindumac.com

Show in original language

This WRAVOR Multirip 750 20-100 was manufactured in 2023. It features a maximum cutting thickness of 100mm and a width of 750mm. The machine includes a robust hydraulic system with a 60 bar operating pressure and a 1.1 kW pump drive. It also boasts a high-powered main spindle drive of 22 kW and a conveyor system powered at 0.75 kW. Consider the opportunity to buy this WRAVOR Multirip 750 20-100 Circular Wood Saw. Contact us for more information.

Overview

brand: WRAVOR
year: 2023
MODEL: Multirip 750 20-100
application type: Sawing (Wood)
Location: Hungary
machine type: Circular Wood Saw

Technical Information - WRAVOR Multirip 750 20-100

General Data

Measurements width: 1893 MM
Measurements depth: 2033 MM
Measurements height: 1790 MM
Machine weight: 2100 KG

Main drive

Spindle speed range: 2800 1/MIN
Spindle motor power: 22 kW
Maximum sheet thickness: 20 mm

Additional Information

Machine Benefits

Qualitative Machine Benefits

Air flow: 5000 m³/h
Rated power: 24 kw
Conveyor: 0. 75 kw
Hydraulic drive: 1. 1 kw
Permissible load on main em: 44 a
Supply voltage: 3n ~ 400/230 v
Frequency: 50 hz
Control voltage: 24 vdc
Precursor: 63 a
Connection cable cross-section: 16 mm²

Technical Machine Benefits

Max width: 750 mm
Circular blade: circular blade for side cut with cleaners
Number and type of lasers: 3 pcs – 10 mw
Pump drive: 1. 1 kw
Pump flow rate: 9 l/min
Tank capacity: 5 l
Hydraulic system operating pressure: 60 bar
Hydraulic system safety valve: 80 bar
Saw blades diameter: Ø 250 mm
Air velocity: 30 m/s

Extra Information

Machine still under power. Allowed Voltage Drop When Entering the Electrical Cabinet: 5%. The number of circular blades depends on the thickness and type of wood.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
