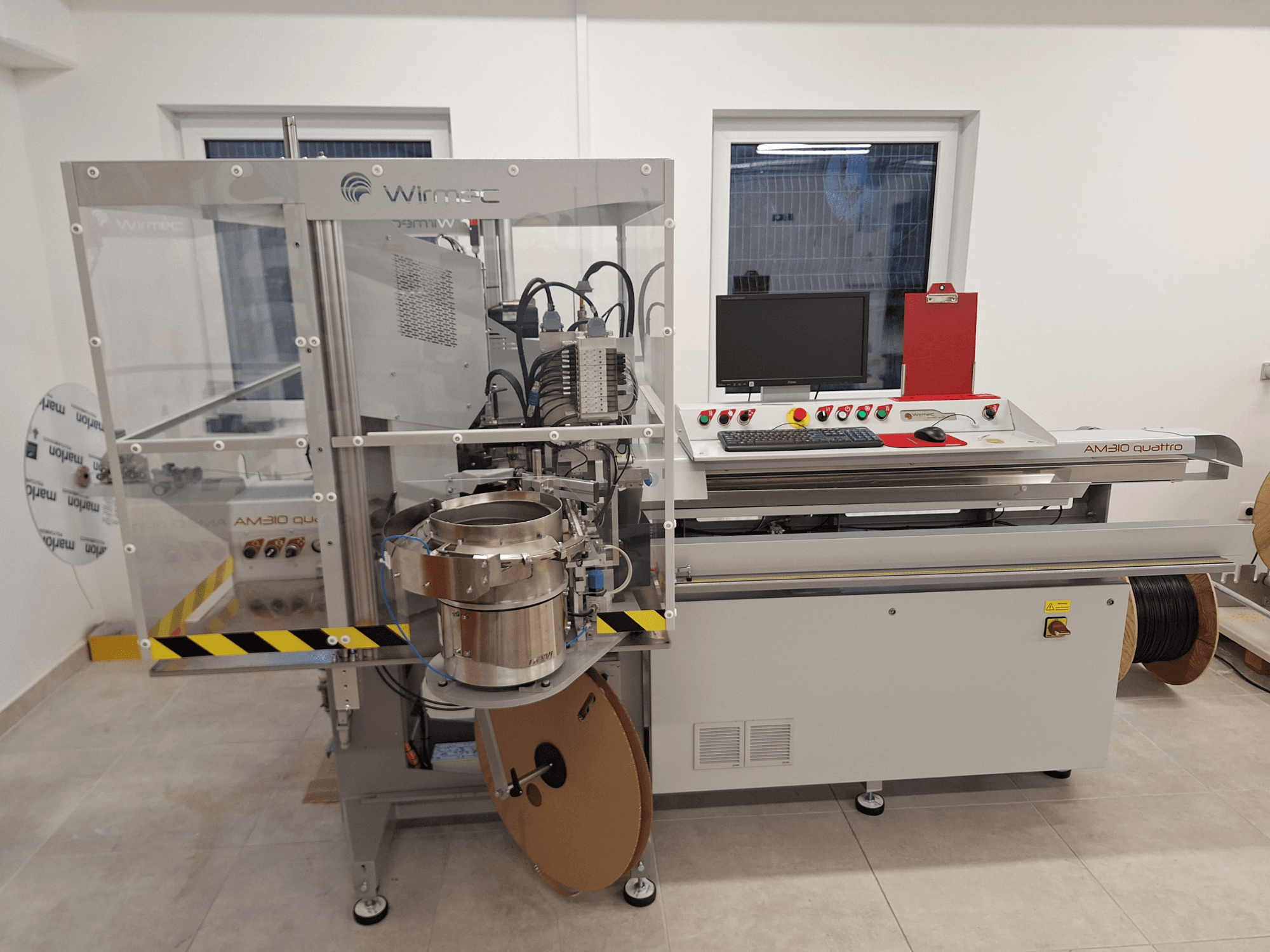

WIRMEC - AM310-117SI-OTH-WIR-2023-00001

• Power Supply: 400 V

• Electrical Configuration: 3 Phase + Neutral + Ground (3F + N + T)

• Frequency: 50 / 60 Hz

• Installed Power: 10 kW

• Main units included:

  • Cut, strip & terminate unit

  • 2 m conveyor system

  • Programmable wire deposit unit (active and passive)

  • Twisting unit

  • Fluxing and soldering station

  • Crimping unit – 20 kN with quick locking tool system

  • Crimp force monitoring system

  • Terminal detecting device

  • Pick & Place inserter unit with 3 motorized axes

  • Belt drive feeder system

• Processing functions:

  • Automatic wire cutting

  • Double-sided wire stripping

  • Single-side terminal crimping

  • Single-side wire twisting

  • Single-side wire tinning (soldering)

  • Automatic terminal insertion into connector housing

  • Combined processing operations in one cycle

• Connector flexibility: Machine can be modified or adjusted to process different connector types.

Additional equipment

• Cut and strip V blades (R0.5, rake angle 30°/15°, tin-coated steel)

• Wire straightening unit

• Wire guide system
