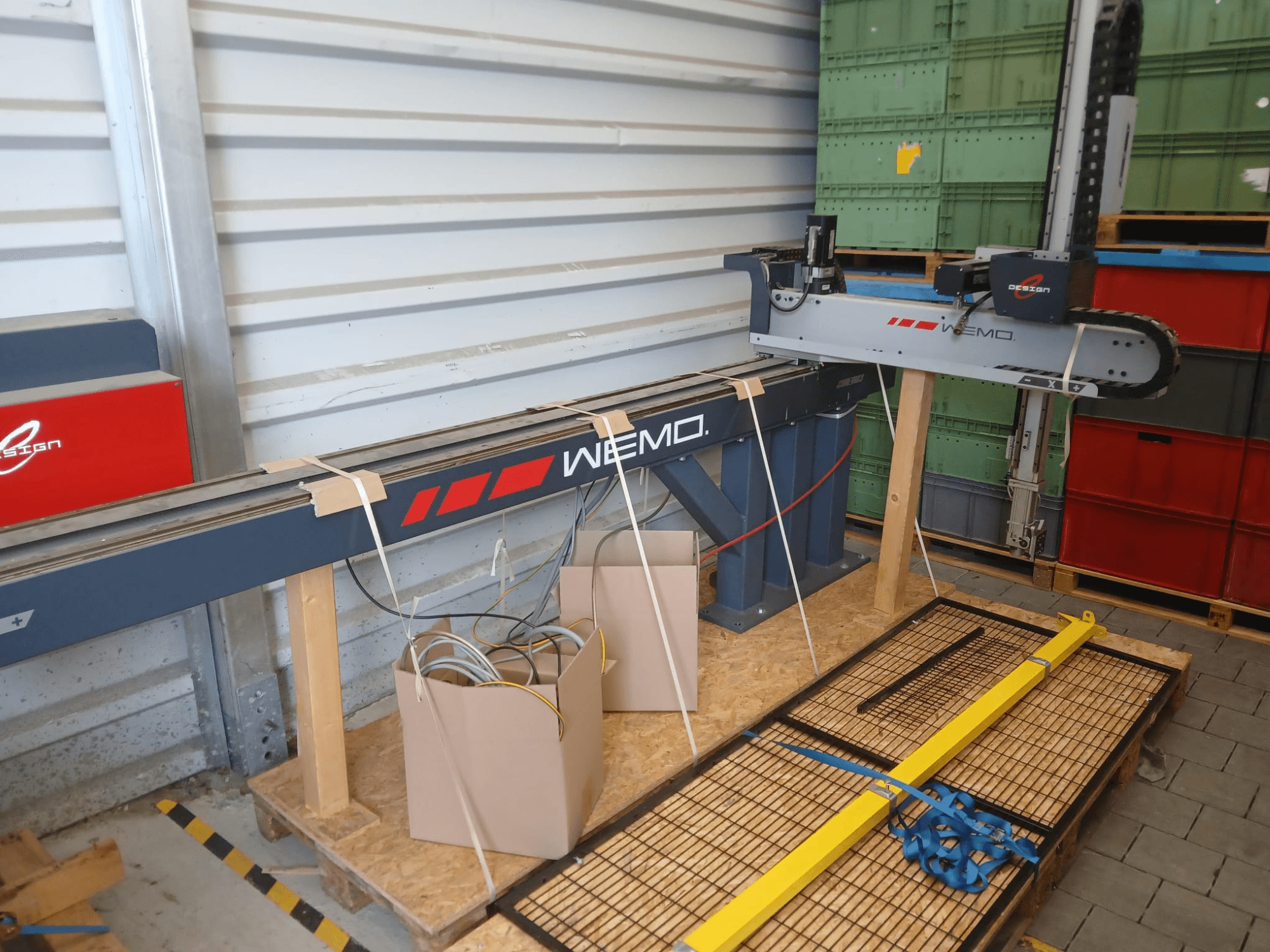

This 3-axis WEMO 16-5 eDesign gantry robot was manufactured in 2019. It features a maximum X-axis stroke of 800 mm, a Y-axis stroke of 1,800 mm, and a Z-axis stroke of 4,550 mm, with a maximum handling weight of 13 kg. Designed for injection molding automation and part handling, consider the opportunity to buy this WEMO 16-5 eDesign gantry robot. Contact us for further details.

Overview

  • brand: WEMO
  • year: 2019
  • MODEL: 16-5 eDesign
  • application type: Robotics
  • Location: Germany
  • machine type: Gantry Robot

Technical Information - WEMO 16-5 eDesign

Movement

  • Number of Axes: 3

Technical Specification

  • Max. Handling Weight: 13 kg

Additional Information

  • Robot Type: Gantry Robot (Top Entry Cartesian Robot)

  • Application: Injection Molding Automation / Part Handling

  • Machine Size: 250–500 t

  • Maximum X-Axis Stroke: 800 mm

  • Maximum Y-Axis Stroke: 1,800 mm

  • Maximum Z-Axis Stroke: 4,550 mm

  • Power Supply: 3 × 400 V AC + N + PE

  • Frequency: 50 Hz

  • Rated Current: 16 A

  • Compressed Air Pressure: 6 bar

  • Programming System: WIPS

  • Operating Hours: Approx. 1,000 h

  • Previous Use: Redundant Backup System

  • Condition: Dismantled and Stored on Pallets

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
