- ➤ Used WEIRATHER KS1300/4 For Sale | gindumac.com

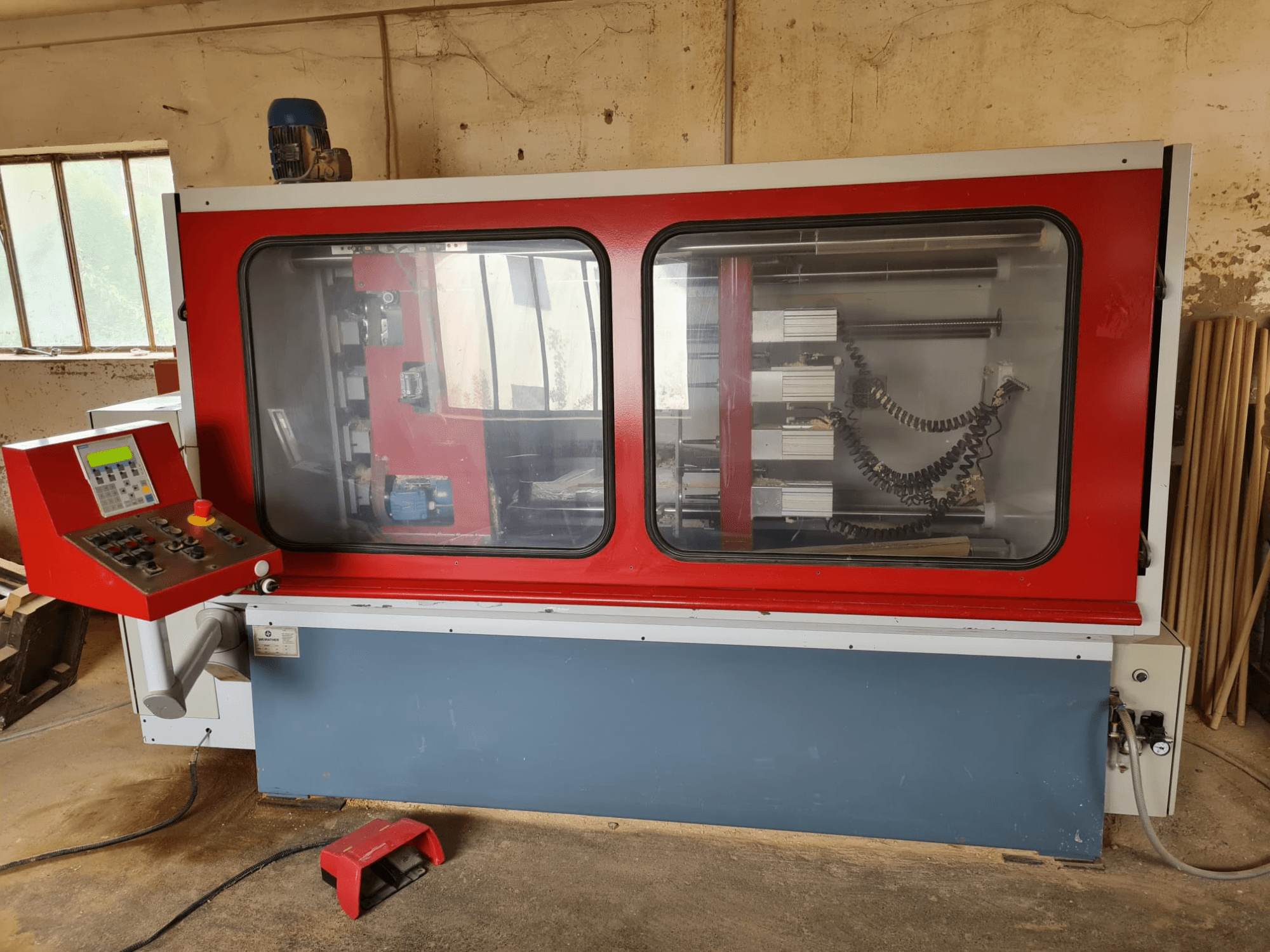

This 4-axis WEIRATHER KS1300/4 was manufactured in 2004. It features a maximum milling length of 1300 mm and a milling diameter of 300 mm, making it suitable for various applications such as tool handles and furniture components. The machine operates with a Siemens control system and has a cutter shaft speed of 5300 rpm. If you are looking to get high-quality milling capabilities, consider the WEIRATHER KS1300/4 wood mill we have for sale. Contact us for further details.
Overview
- brand: WEIRATHER
- year: 2004
- MODEL: KS1300/4
- application type: Milling (Wood)
- Location: Austria
- machine type: Wood Mill
- control unit brand: SIEMENS
Technical Information - WEIRATHER KS1300/4
Control Unit
- Control Brand: SIEMENS
Dimensions
- Machine Height: 1900 mm
- Machine Length: 2800 mm
- Machine Weight: 1200 kg
- Machine Width: 1200 mm
Movement
- Number of Axes: 4
Additional Information
Condition: Used
Electrical: 400 V, 50 Hz, 4.0 kW
Number of spindles: 4
Machining principle: Longitudinal milling
Capabilities:
Max milling length: 1300 mm
Max milling diameter: 300 mm
Max recommended workpiece size: 1300 x 150 mm
Cutter shaft speed: 5300 rpm
Operation/features: Low-vibration, smooth running; high dimensional accuracy and clean surface finish
Lubrication: Automatic central lubrication (reduced maintenance)
Production type: Suitable for series production
Workpiece type: Long and 3D-contoured parts
Material suitability: Hardwood, softwood, multiplex, MDF, selected plastics (with suitable cutters)
Typical applications:
Tool handles, hammer/axe/garden tool handles, walking stick handles
Gun stocks, pistol grips, bow risers
Furniture parts: armrests, back rails, handles, decorative moldings, wooden feet
Balusters, posts, handrail and volute segments
Paddle and oar handles and shafts
Consoles, corbels, decorative supports, sculptural elements
Foundry patterns, gauges, templates, fixture components
Knife and tool handles, pestles, kitchen utensil handles
Certification/conformity: CE marked; EC declaration of conformity available
Test run: Possible under power by appointment
Included: Machine as shown
Additional equipment
Optional: Additional milling cutters available
Optional: Additional templates (only if shown or explicitly mentioned)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
