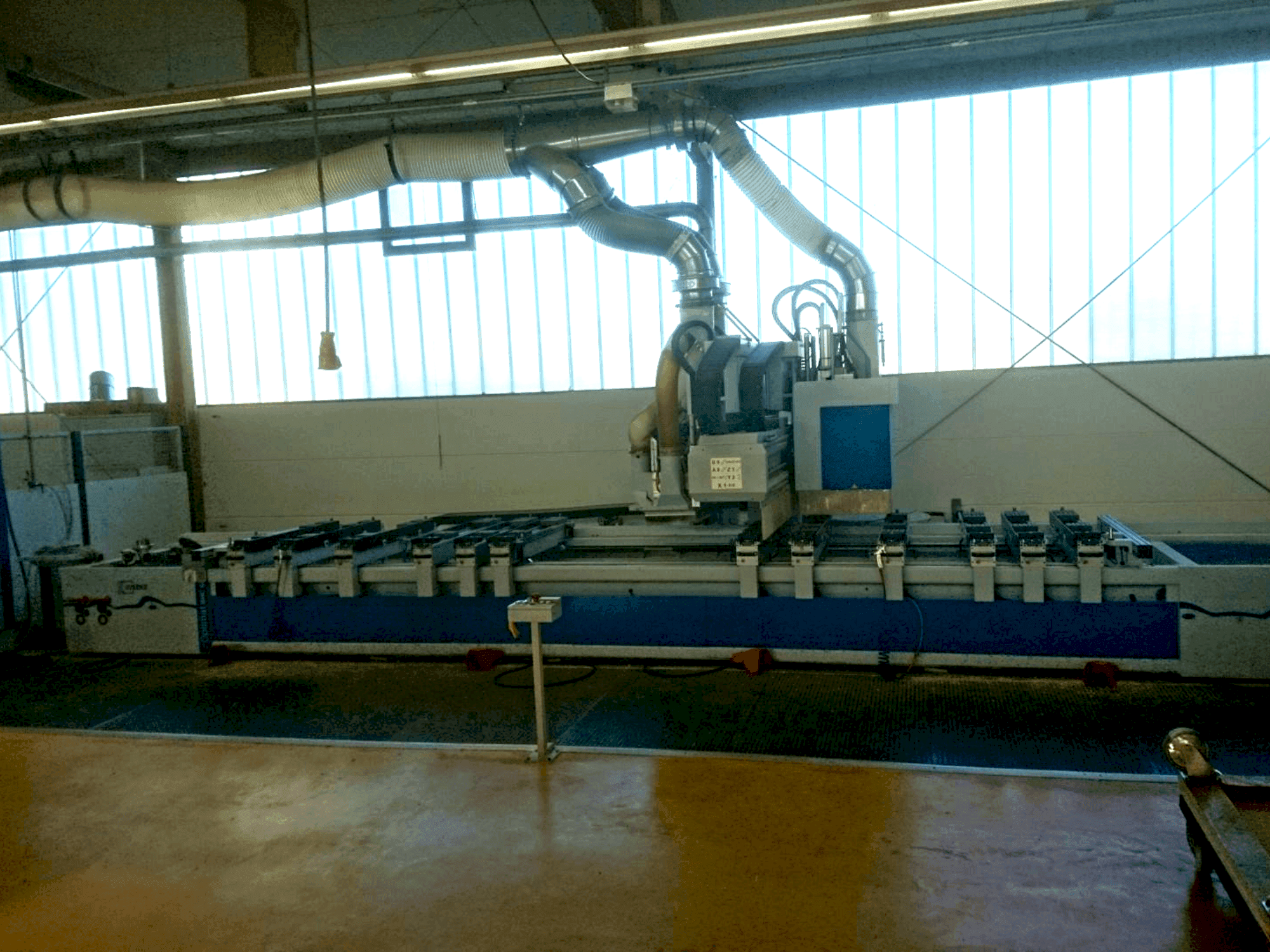

Front view of Weeke Optimat BHC 655 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Weeke Optimat BHC 655

Photo Gallery

Weeke - Optimat BHC 655DE-WOO-WEE-2004-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Wood Working
➤ Used Weeke Optimat BHC 655 - CNC Processing Center

Show in original language

This woodworking machine was manufactured in 2004. It features a robust CNC processing centre with a compact linear guide system and a ball screw spindle for precise X, Y, and Z axis movement. Equipped with a 9 kW milling spindle, adjustable from 1250-24000 RPM and a 360° positioning axis, it ensures versatile and efficient operations. The machine includes a 100 m³/h vacuum pump and an 18-fold tool holder. For more information about this woodworking machine, please reach out to us.

Overview

brand: Weeke
year: 2004
MODEL: Optimat BHC 655
application type: CNC Wood Machining
Location: Germany
machine type: CNC Router

Technical Information - Weeke Optimat BHC 655

Main drive

Spindle speed range: 1250-24000 1/MIN

Additional Information

Additional equipment

BASIS-table with 6 traverses
Vacuum pumps (2x 100 m3/h)
Multiple stop systems
18-fold tool holder
LED positioning system
side stop cylinder, pneumatically lowerable
longitudinal stop cylinder, pneumatically lowerable
Double centre stop lockable with 4 cylinders
Separate vacuum clamping system (4 vacuum fields in X direction)
Separate vacuum clamping system for the use of at least 8 workpiece supports with four-fold assignment

Machine Benefits

Technical Machine Benefits

Axis movement (x-/y-/z-direction): via a compact linear guide system, dust-protected
Ball screw spindle (y- and z-direction)
Rack and pinion drive (x direction)
4 program-controlled workpiece stops, mounted as a rear row of stops
6 program-controlled workpiece stops, mounted as a front row of stops
2 side stops mounted on an aluminium profile in y-direction, which can be switched off manually when oversized workpieces are being processed. The side stops can be adjusted manually in y-direction.
6 workpiece lifting arms for heavy workpieces
Milling spindle hsk 9 kw (s6 50%), liquid circulation cooling
360 degree positioning axis

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
