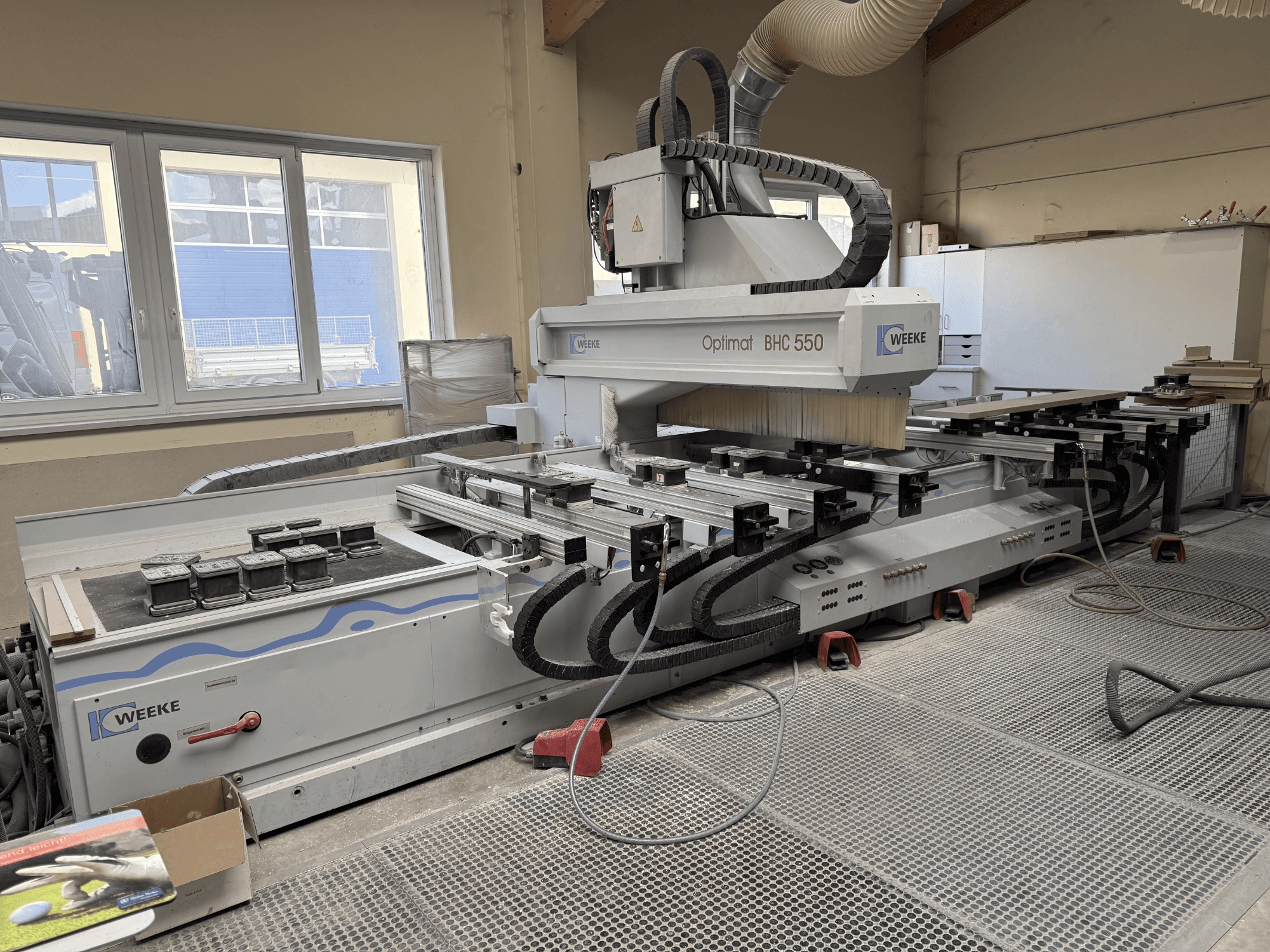

CNC Wood Machining Centre Weeke Optimat BHC 550, front view showing tool head and worktable, with dust extraction system visible.
CNC Wood Machining Centre Weeke Optimat BHC 550, front view showing tool head and worktable, with dust extraction system visible.

Weeke - Optimat BHC 550 DE-CNC-WEE-2003-00001

£ 13,407
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 3-axis Weeke Optimat BHC 550 was manufactured in 2003. It features a spacious table size of 4250 x 1300 mm and a powerful 9 kW main spindle with infinitely variable speeds from 1250 to 24000 rpm. The machine includes an 18-position tool changer and a drilling/milling unit with multiple configurations. If you are looking to get high-quality CNC wood machining capabilities, consider the Weeke Optimat BHC 550 machine we have for sale. Contact us for further details.

Overview

  • brand: Weeke
  • year: 2003
  • MODEL: Optimat BHC 550
  • production hours: 5553
  • application type: CNC Wood Machining
  • Location: Germany
  • machine type: CNC Wood Machining Centre

Technical Information - Weeke Optimat BHC 550

Dimensions

  • Machine Height: 3000 mm
  • Machine Length: 8400 mm
  • Machine Width: 5000 mm

Movement

  • Number of Axes: 3

Technical Specification

  • Spindle Power: 9 kW
  • Spindle Speed: 24000 RPM

Additional Information

  • Table size: 4250 x 1300 mm

  • 8 consoles incl. lifting rail

  • Dual-circuit vacuum block suction

  • Vacuum connection for stencil operation

  • Y-stop rail for top layer overhang

  • Main spindle: HSK F63, liquid recirculation cooling

  • Max. tool diameter: 180 mm

  • Aggregate interface for main spindle, C-axis with torque transmission and 3-point support

  • Tool changers: 18-position (moving in X), 8-position (moving in Y)

  • Drilling/sawing/milling unit with ER25

  • Drilling/milling unit, manually tiltable 90°, with ER25

  • Drilling unit: horizontal in X: 4; horizontal in Y: 2; vertical: 19

  • Groove saw in X direction, tool diameter 100 mm

  • Handheld terminal for machine control with potentiometer

  • Control/software: Windows XP, WoodWOP 5.0, network connection possible

  • 2004 new hard drive

Additional equipment

  • Vacuum pump (included)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
