VULCAN VMC 610L
VULCAN - VMC 610L
2020
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- VULCAN VMC 610L Vertical machining center

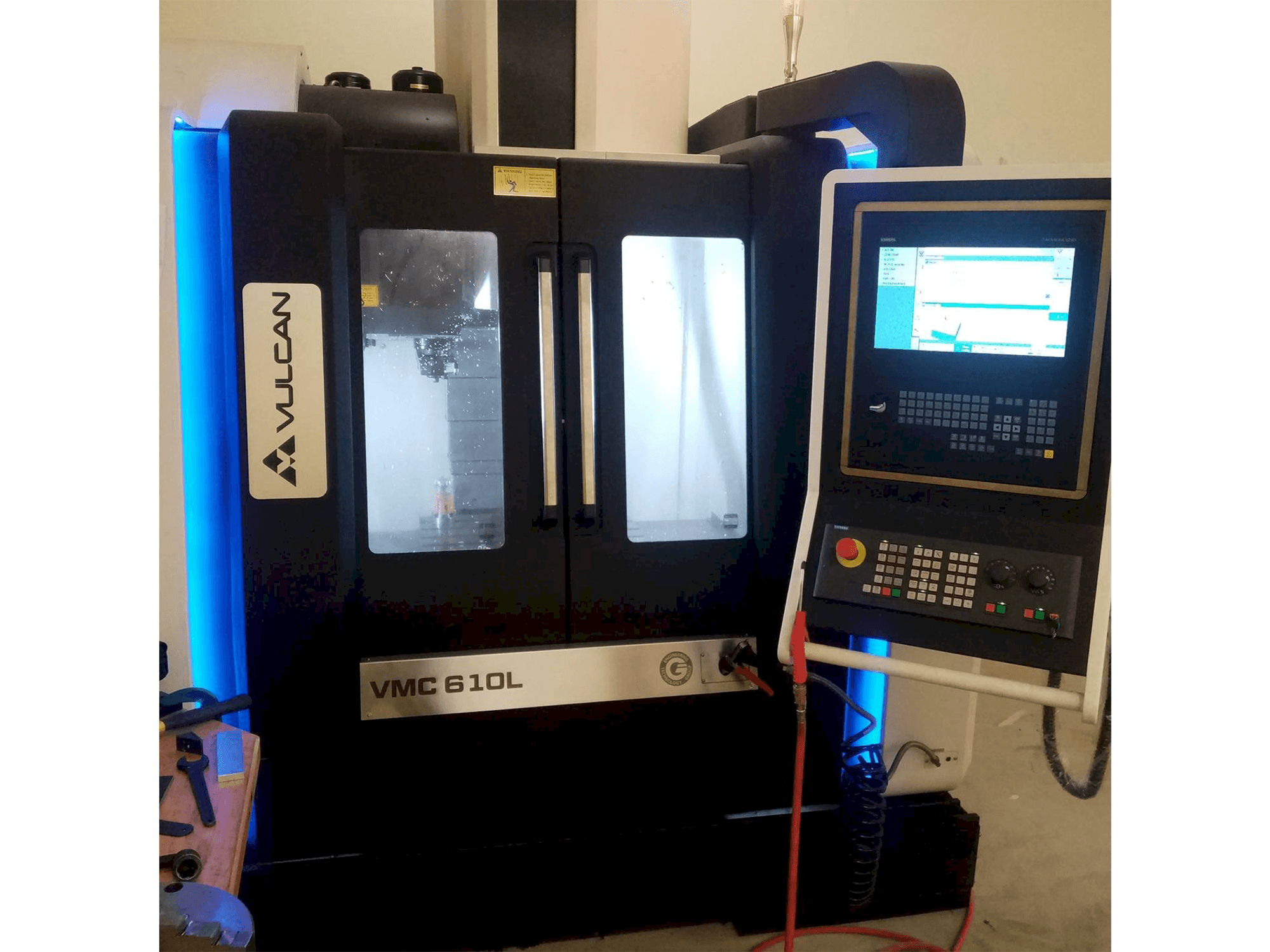

This VULCAN VMC 610L Vertical machining center was manufactured in the United Kingdom in 2020. It is equipped with a Siemens 828D / Conversational control unit. This 3 axis machine operates with a spindle speed up to 10000 rpm. Includes toolbox and tools, a spindle air blast and lubrication system with alarm.
Overview
- brand: VULCAN
- year: 2020
- MODEL: VMC 610L
- application type: Milling
- Location: Ireland
- machine type: Machining centers (vertical)
- availability: Sold
- control unit brand: Siemens
- GINDUMAC ID: IE-MIL-VUL-2020-00001
Technical Information
General Data
- Measurements width: 3283 mm
- Measurements depth: 1852 mm
- Machine weight: 4500 KG
Control Unit
- Brand: Siemens
- Model: 828D / Conversational
Main drive
- Spindle speed range: 10000 1/MIN
- Spindle motor power: 5.5 / 5.7 kW
- Tool taper: No. 40 (big plus)
- Number of axis: 3
Movement
- X-AXIS Movement: 610 mm
- X-AXIS Rapid traverse: 36 m/min
- Y-AXIS Movement: 400 mm
- Y-AXIS Rapid traverse: 36 m/min
- Z-AXIS Movement: 450 mm
- Z-AXIS Rapid traverse: 32 m/min
Table
- Outer length: 650 mm
- Outer width: 400 mm
- Table load: 400 KG
Tools
- Slots in storage: 24 (tool swing arm)
- Type of tool holder: BBT
Media
- Main electronic connection: 3 x 415V / 50Hz
- Power consumption: 30 kVA
Additional Information
- Technical Machine Benefits:
- - Spindle centre to column: 130 - 580 mm
- - T-slots (no. X width x pitch): 4 x 18 x 75 mm
- - Belt spindle
- - Tool selection: bi-directional
- - Coolant tank capacity: 256 l
- - Compressed air req. (min. ): 5. 5 - 6. 5 kg/cm²
- - Shop mill conversational programming
- - Heat exchanger
- - Lubrication system with alarm
- - Led worklamps x 2 set
- Qualitative Machine Benefits:
- - Fully enclosed splash guard
- - Levelling blocks
- - Toolbox and tools
- - Usb interface
- - Spindle oil chiller (integrated in the machine guarding)
- - Spindle air blast
- - Flushing wash system
- - Mpg hand wheel
- - 20 bar through spindle coolant
- - Belt type chip conveyor with overflow type coolant tank
- - -Air and coolant gun -Built in coolant nozzles
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
