GINDUMAC
Products
Machine Tools

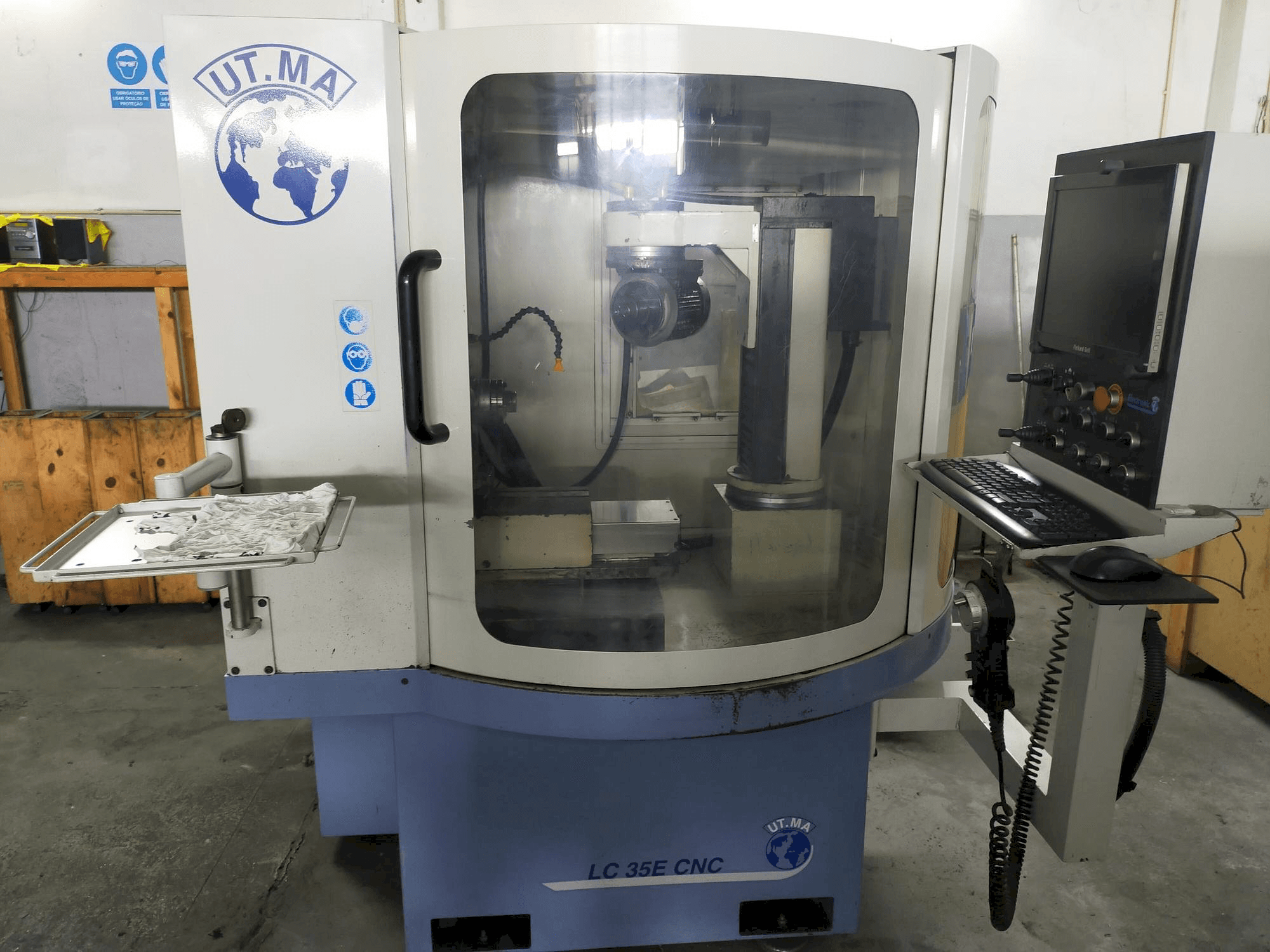

UT.MA LC 35E Grinding machine

Show in original language

This UT.MA LC 35E Grinding machine was built in the year 2009. It is equipped with a Packard Bell control unit. It operates with a grinding spindle speed range between 0 - 6000 rpm. This 4 axis machine includes an exhaustion system, a water tank and a measuring probe by Renishaw.

Overview

brand: UT.MA
year: 2009
MODEL: LC 35E
application type: Grinding
Location: Portugal
machine type: Grinding Machine
availability: Sold

Technical Information - UT.MA LC 35E

General Data

Measurements width: 1800 mm
Measurements depth: 2500 mm
Measurements height: 2000 mm
Machine weight: 1500 KG

Main drive

Tool taper: ISO50
Number of axis: 4

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Exhaustion system
- - Water tank
- - Measuring probe (renishaw)
- - Table movement - x axis: 350 mm
- - Wheel movement - y axis: 300 mm
- - Column movement - z axis: 250 mm
- - Axes movements a - x - (y) - (z) through brushless servo motors
- - Brushless motors: 3. 4 nm
- - Maximium swing over centres: 305 mm
- - Horizontal swivel of grinding spindle: +/-270°
Qualitative Machine Benefits:
- - Grinding motor: 4. 1 kw
- - Grinding spindle speed: 0 - 6000 rpm
- - Maximum wheel diameter: 175 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
