Universal Robots - UR10e ES-ROB-UNI-2023-00001

Name: Universal Robots UR10e
Brand: Universal Robots
SKU: ES-ROB-UNI-2023-00001
Price: 25088 GBP
Availability: InStock

£ 25,088

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Automation Equipment
➤ Used Universal Robots UR10e For Sale | gindumac.com

Show in original language

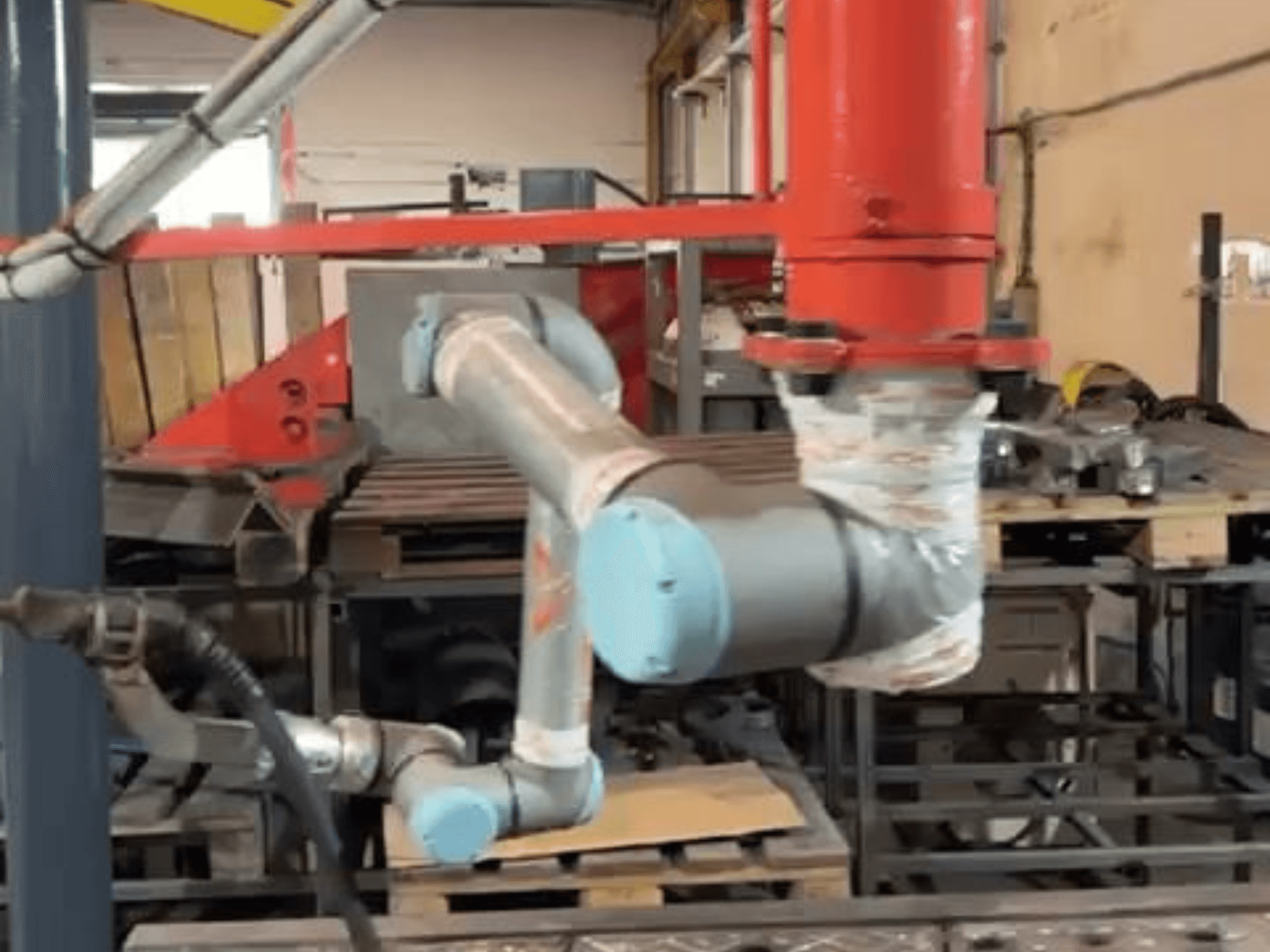

This 6-axis Universal Robots UR10e was manufactured in 2023. It features a reach of 1,300 mm and a payload capacity of 12.5 kg, making it suitable for various applications. The robot is equipped with an integrated 6-axis force/torque sensor and comes with a Smooth Robotics Welding Integration Kit. If you are looking to get high-quality welding capabilities, consider the Universal Robots UR10e collaborative robot we have for sale. Contact us for further details.

Overview

brand: Universal Robots
year: 2023
MODEL: UR10e
application type: Robotics
Location: Spain
machine type: Collaborative Robot

Technical Information - Universal Robots UR10e

Movement

Number of Axes: 6

Technical Specification

Max. Handling Weight: 12.5 kg
Max. Reach: 1300 mm

Additional Information

Condition: DEMO unit (minimal running hours)
Pose repeatability: ±0.05 mm (ISO 9283)
Axis working range: ±360° on all 6 joints (J1–J6)
Joint speeds:
- Base/Shoulder (J1, J2): ±120°/s
- Elbow/Wrists (J3–J6): ±180°/s
Integrated force/torque sensor: 6‑axis at tool flange (0.1 N force resolution, 0.02 Nm torque resolution)
Control unit: UR e‑Series Control Box
Teach pendant: 12" touchscreen with Polyscope interface
Programming: Lead‑through teaching (hand‑guiding)
Ingress protection: IP54
Power supply: Single‑phase 100–240 VAC, 50–60 Hz
Power consumption: Approx. 350 W (depending on payload and speed)

Additional equipment

Welding integration kit: Smooth Robotics hardware kit (torch mount, brackets, integration cabling)
Software: SmoothTool Welding Software, permanent (lifetime) license; includes dedicated welding motion paths (linear, circular, weave patterns)
Interface module: Demo Retrofit Kit I/O for direct digital/analog communication between the cobot and a welding power source

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.

Your account manager:

Borja Garcia

Borja Garcia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.
