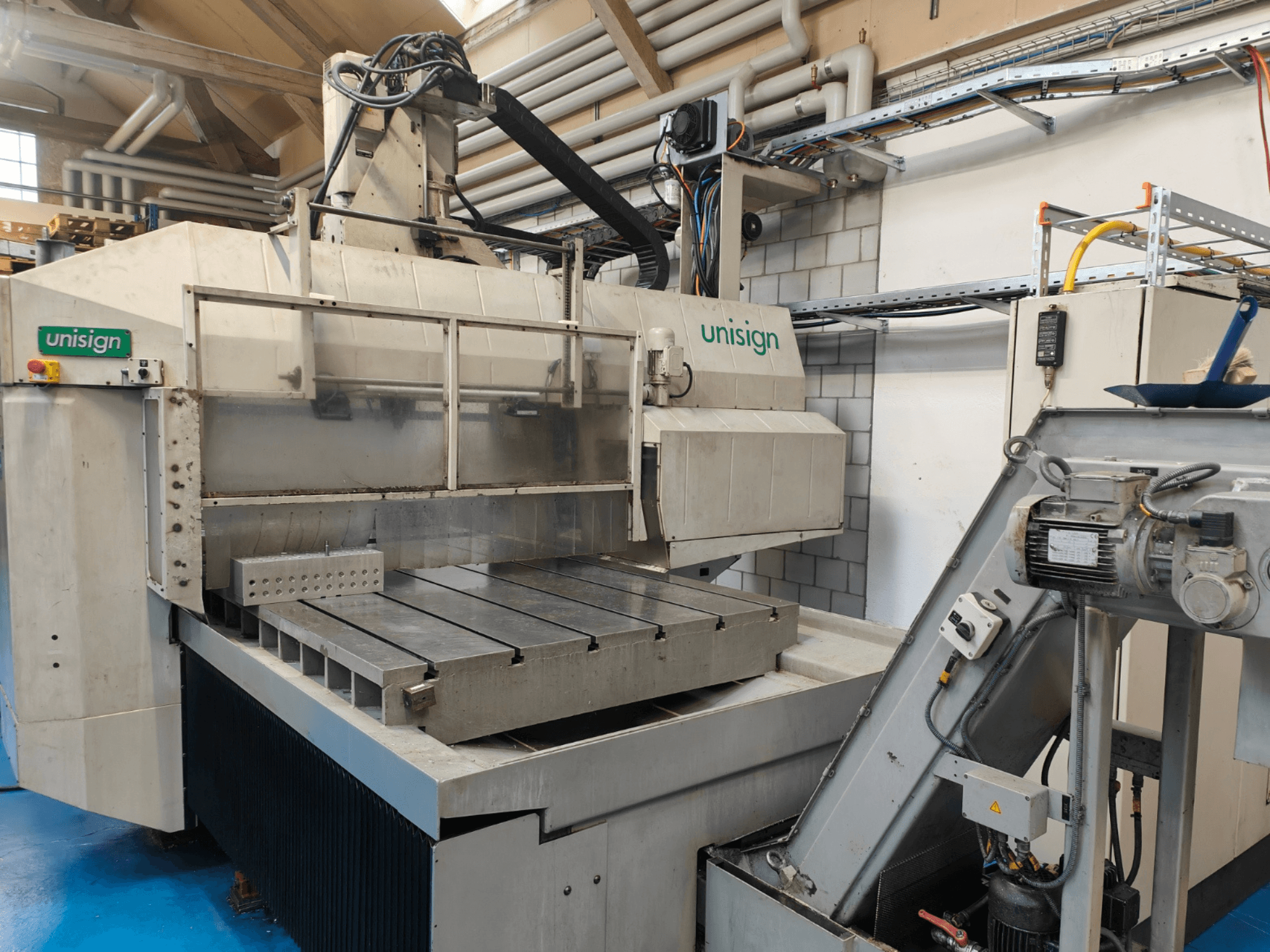

This 3s Unisign Uniport 4 horizontal machining centre was manufactured in 2001. It features a generous X-travel of 4000mm, Y-travel of 1550mm, and Z-travel of 400mm, along with a Siemens 840D controller and a 50-tool automatic tool changer. The machine has been well-maintained, with a new spindle and bearings. Consider the opportunity to buy this Unisign Uniport 4 horizontal machining centre. Contact us for further details.
Overview
- brand: Unisign
- year: 2001
- MODEL: Uniport 4
- application type: Milling
- Location: Switzerland
- machine type: Horizontal Machining Centre
- control unit brand: SIEMENS
Technical Information - Unisign Uniport 4
Control Unit
- Control Brand: SIEMENS
- Control Model: Sinumerik 840D
Movement
- Number of Axes: 3
- X-axis Travel: 4000 mm
- Y-axis Travel: 1550 mm
- Z-axis Travel: 400 mm
Technical Specification
- Spindle Speed: 6000 RPM
- Taper Size: SK 40
Additional Information
ATC capacity: 50 tools
Spindle taper: SK40 with internal/through-spindle coolant
Linear scales on axes
2025 service/overhaul
New spindle (approx. 200 operating hours)
Spindle motor rewound (approx. 200 h)
New spindle bearings (approx. 200 h)
2-speed spindle gearbox fitted with new bearings (approx. 200 h)
New linear bearing on X axis (approx. 200 h)
All pneumatic hoses replaced
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
