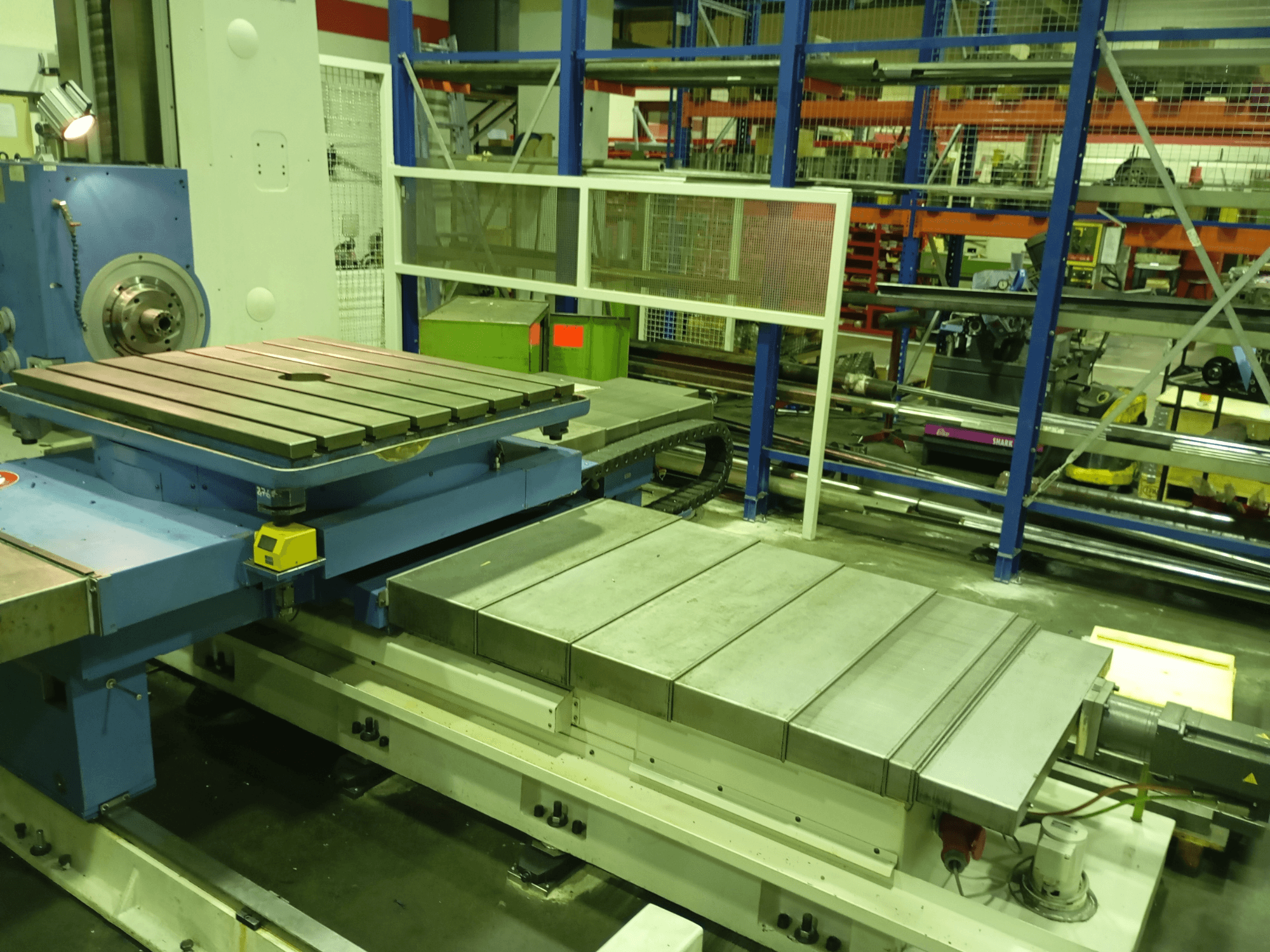

This 5-axis UNION Karl Marx Stadt BFT90/5 MSC boring machine was manufactured in 2009. It features a substantial table size of 1000 x 1120 mm with a maximum table load of 2.5 t. The machine offers impressive feed rates of 4000 mm/min and a spindle speed range of 4 – 1600 rpm. If you are looking to get high-quality boring capabilities, consider the UNION Karl Marx Stadt BFT90/5 MSC machine we have for sale. Contact us for further details.
Overview
- brand: UNION
- year: 2009
- MODEL: Karl Marx Stadt BFT90/5 MSC
- production hours: 3093
- application type: Other Machine Tools
- Location: Germany
- machine type: Boring Machine (Metal)
- control unit brand: HEIDENHAIN
Technical Information - UNION Karl Marx Stadt BFT90/5 MSC
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: TNC 320
Dimensions
- Machine Height: 3160 mm
- Machine Length: 5800 mm
- Machine Weight: 8900 kg
- Machine Width: 3400 mm
- Table Load: 2500 kg
Movement
- Number of Axes: 5
- X-axis Travel: 1000 mm
- Y-axis Travel: 1000 mm
- Z-axis Travel: 1800 mm
Technical Specification
- Spindle Speed: 1600 RPM
- Taper Size: SK 40
Additional Information
Table size: 1000 x 1120 mm
B axis (table rotation): 360°
Feed rate (X/Y/Z): 4000 mm/min
Spindle diameter: 90 mm
W axis travel: 710 mm
Control cabinet dimensions (L x W x H): 2.0 x 0.75 x 2.0 m
Total mass: 10.0 t
Temperature range: 15–40 °C
Electrical: 3-phase/50 Hz; 380 V rated voltage; 24 V control voltage
Connected load: 40 kW
Fuse rated current: 100 A
Total power requirement: approx. 7.5 kW
Spindle running time: 3069 h
Power-on hours: 10402 h
General overhaul: 2009
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
