TWIN SEAM KA 2000-3000

Photo Gallery

TWIN SEAM - KA 2000-3000DE-BEN-TWI-2002-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
➤ Used TWIN SEAM KA 2000-3000 For Sale | gindumac.com

Show in original language

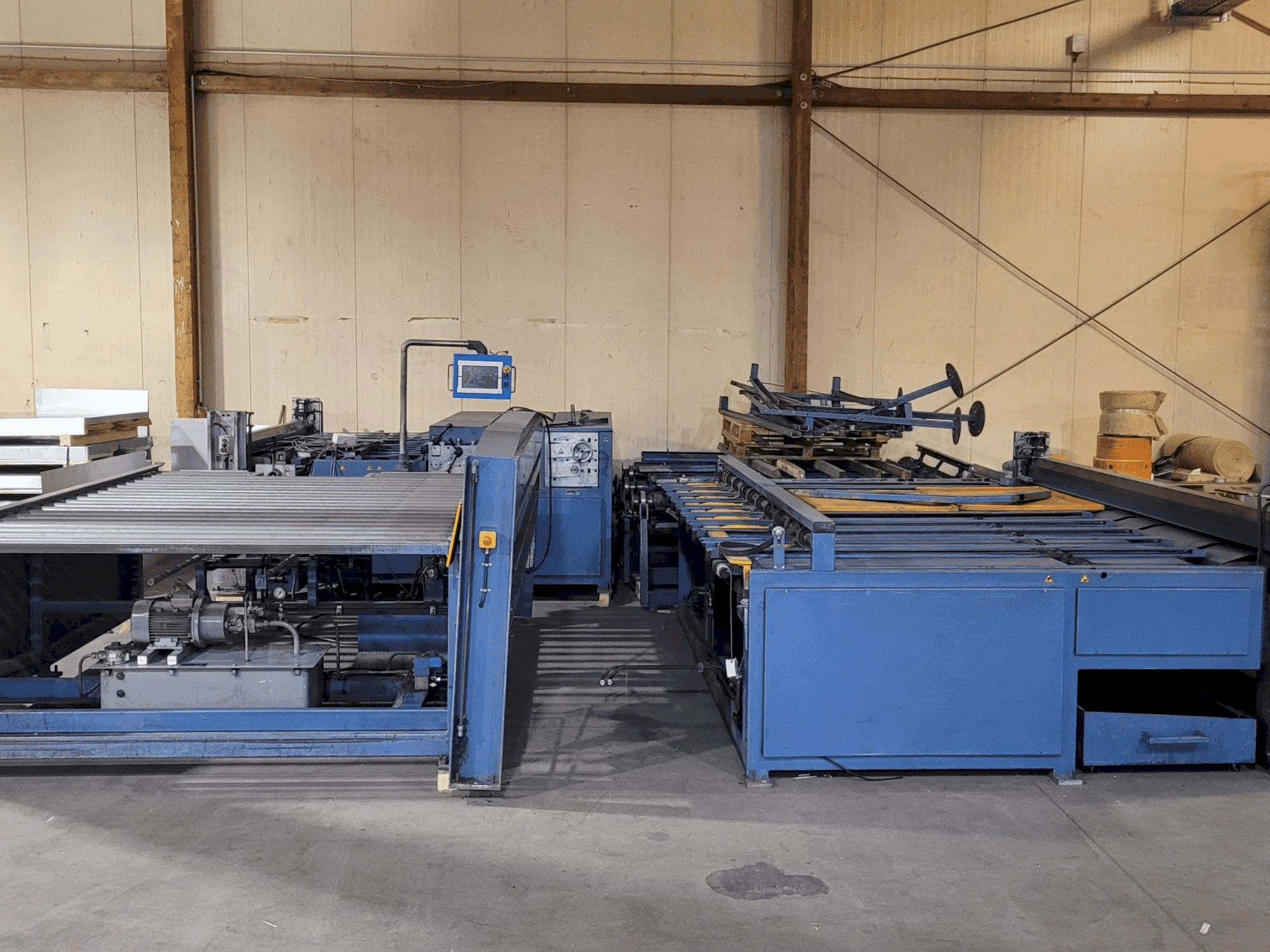

This TWIN SEAM KA 2000-3000 roll bending machine was manufactured in 2002. It handles coils up to 2000 mm wide and 7 tons in weight, producing channels from 140 x 140 mm to 2500 x 2500 mm. Efficient with a power consumption of only 4-10 kW, it offers high capacity production up to 10 tons per 8 hours. Contact us for more information about this machine.

Overview

brand: TWIN SEAM
year: 2002
MODEL: KA 2000-3000
application type: Bending
Location: Germany
machine type: Roll Bending Machine

Additional Information

Machine Benefits

Technical Machine Benefits

Max sheet thickness: 1. 25 mm with profile, 1. 5 mm without profile // min sheet thickness: 0. 5 mm
Max coil width: 2000 mm // min coil width: 1500 mm // max coil weight: 7000 kg
Channels can be produced in sizes from 140 x 140 mm to 2500 x 2500 mm
Channel lengths range from 300 mm to 3000 mm
Max throughput speed: 18 m/min
Average production time: 40 seconds per piece
Sheet change time between two sheet thicknesses: 15 seconds
Space requirement: 34 to 56 m2
Max weight without coils: 11 tons
High capacity of approximately 10 tons per 8 hours

Extra Information

Electrical connection: 3 x 380 V, 50 Hz + 0 ground

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
