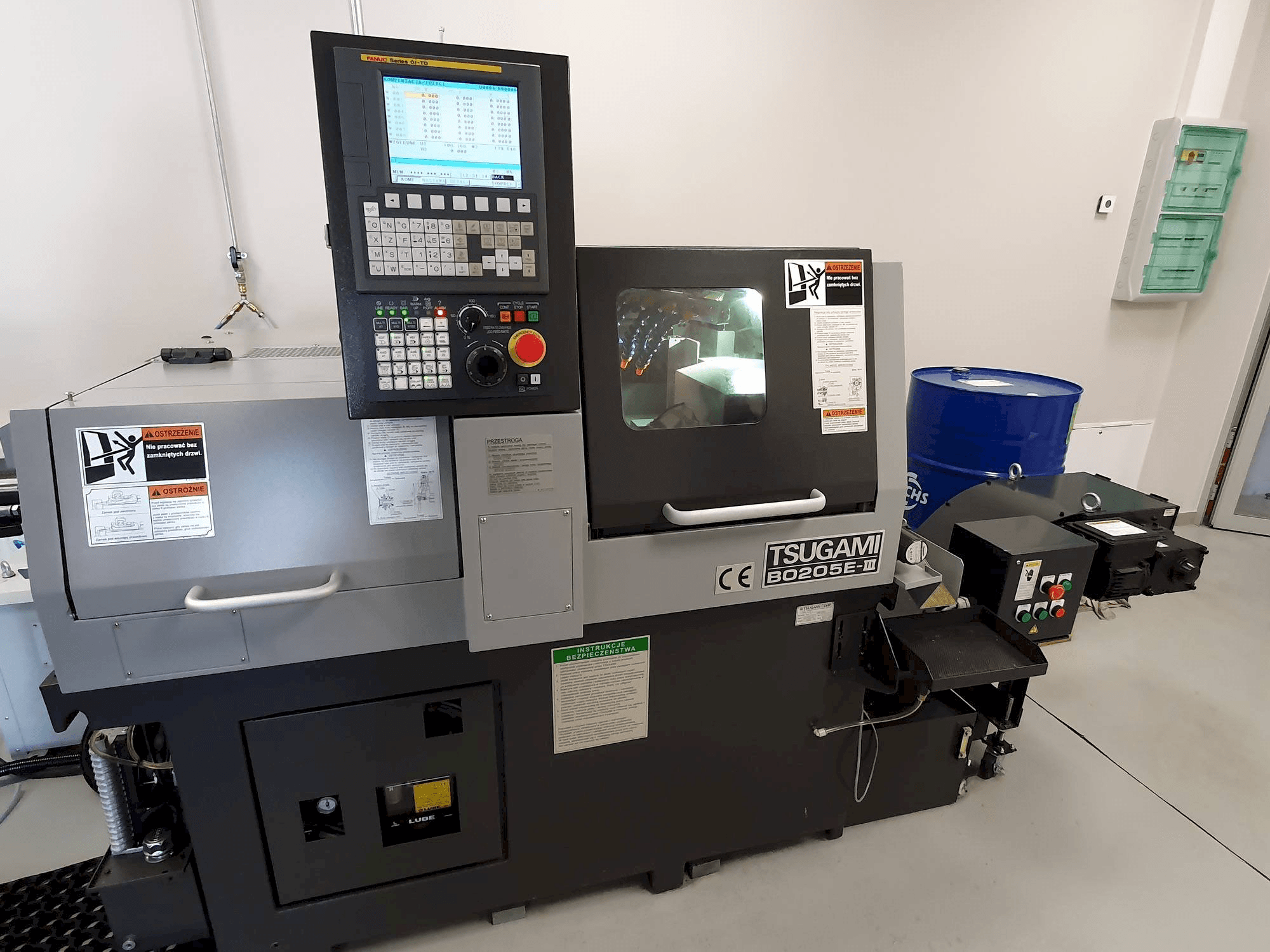

Front view of TSUGAMI B0205E-III machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

TSUGAMI B0205E-III

Photo Gallery

TSUGAMI - B0205E-IIIPL-TUR-TSU-2016-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Tsugami B0205E-III

Show in original language

This Tsugami B0205E-III lathe machine was built in 2016 in Japan. This 5 axis machine is operated through a FANUC Oi-TD control unit. It has a record of only 289 hours of which 177 are cutting hours. This machine works with a spindle speed range 200 - 10.000 rpm. It is like new, in a perfect condition and ready for tests. This machine includes several options

Overview

brand: TSUGAMI
year: 2016
MODEL: B0205E-III
production hours: 289
application type: Turning
Location: Poland
machine type: Swiss Type Turning Machine
control unit brand: FANUC

Technical Information - TSUGAMI B0205E-III

General Data

Measurements width: 1655 mm
Measurements depth: 1135 mm
Measurements height: 1700 mm
Machine weight: 2000 kg

Control Unit

Model: Series oi-TD
Brand: FANUC

Main drive

Spindle speed range: 200 - 10000 1/MIN
Number of axis: 5

Turret

Number of tool slots: 21 pcs

Media

Main electronic connection: 220 V x 3 phases / 50 - 60 Hz
Power consumption: 12 kVA

Additional Information

Additional equipment

Automatic chip collection
Bar feeder 3 meters with interface
Automatic receiving of parts
Workpiece ejector
Illumination lamp
High pressure pump
Guide Bush
2 fixed stations for the counter spindle
Option of entering the part through the counter spindle

Machine Benefits

Qualitative Machine Benefits

The machine is in a perfect condition, like a new.
Full documentation in english and polish
Ready for tests

Technical Machine Benefits

C axis on the main spindle - c axis on counter spindle
Max speed for back spindle: 200-12. 000 rpm / max speed for tools: 200 - 5000 rpm
Rapid traverse rate: 32m/min (x1: 24m/min)
Max length for the workpiece: 170 mm
Front and back overlapped machining is possible with the back spindle and the back tool post
Pursuing operability, improving machining accuracy and reducing cycle time thanks to the newly developed software
Realizing complex workpiece machining by the cross drill and the main spindle
C-axis control
Guide-bush type or guide-bushless type is selectable according to workpiece
Automatic programming system prepared as standard

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
