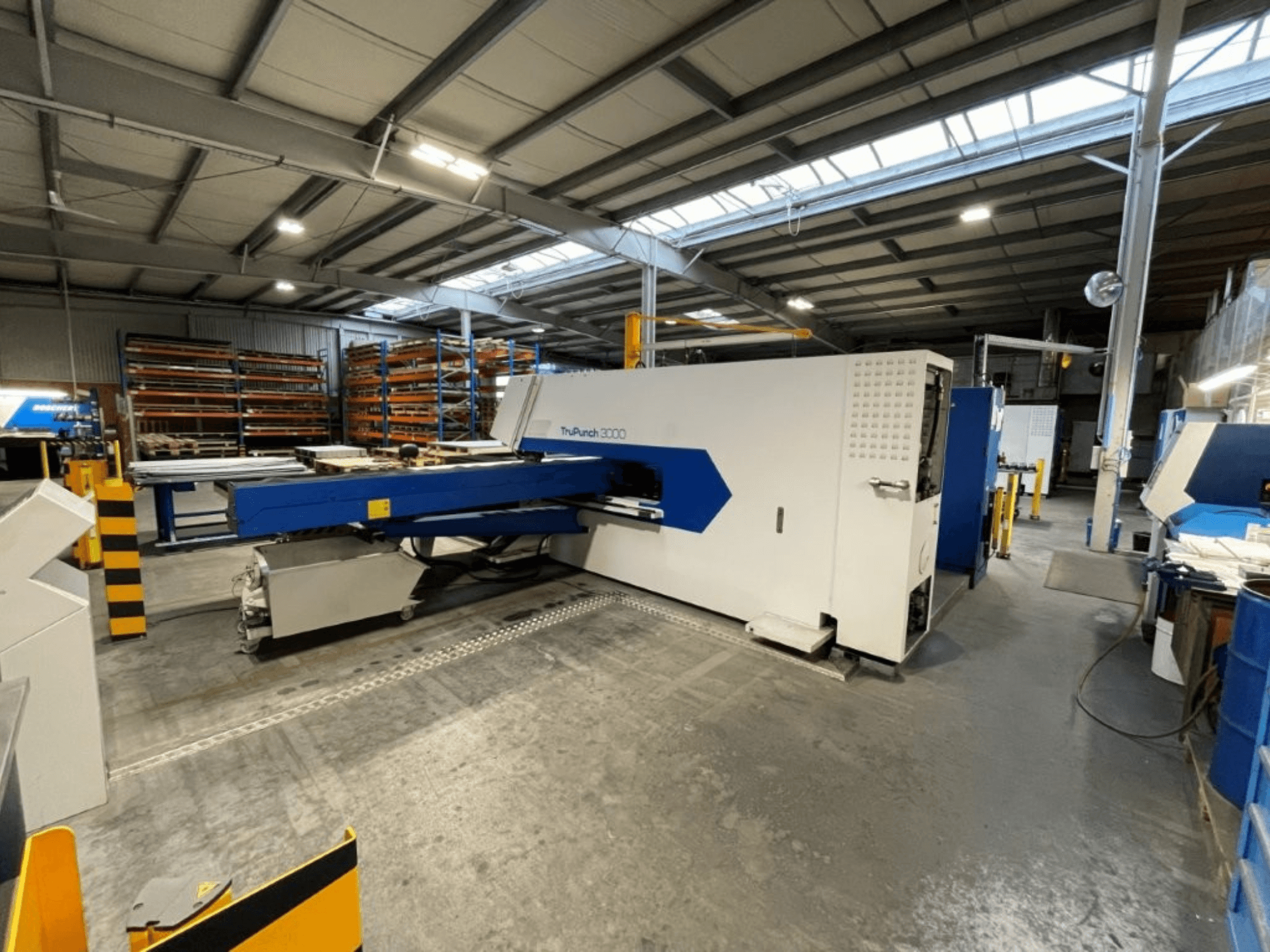

This 5-axis TRUMPF TRUPUNCH 3000 was manufactured in 2007. It features a maximum cutting force of 180 kN, making it suitable for various punching applications. The machine has undergone major contract maintenance in February 2026, ensuring its operational reliability. If you are looking to get high-quality punching capabilities, consider the TRUMPF TRUPUNCH 3000 CNC punch press we have for sale. Contact us for further details.
Overview
- brand: TRUMPF
- year: 2007
- MODEL: TRUPUNCH 3000
- production hours: 52506
- application type: Punching
- Location: Germany
- machine type: CNC Punch Press
- Available from: 07/09/2026
Technical Information - TRUMPF TRUPUNCH 3000
Technical Specification
- Max. Sheet Thickness: 6.4 mm
- Punching Force: 180 Kn
Additional Information
- Operating Hours (NC): 52,506 hours (as of 09.02.2026)
- Max. Cutting Force: 180 kN
- Voltage: 400 V
- Frequency: 50 Hz
- Connected Load / Capacity: 18 kVA
- Control Voltage: 24 V=
- Required Fuse Protection: 3x 35 A
- Compressed Air Connection: 7-14 bar
- Software Version: 3.1.0
- Backlash X-Axis: 0.03 mm
- Backlash Y-Axis: 0.01 mm
- Backlash C1-Axis: 0.01 mm
- Backlash C2-Axis: 0.01 mm
- Maintenance Status: Major contract maintenance performed in February 2026. Oil change for hydraulics is reported as due. Concentricity for C1 and C2 axes tested OK. Brushes/support table partially worn or warped.
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
