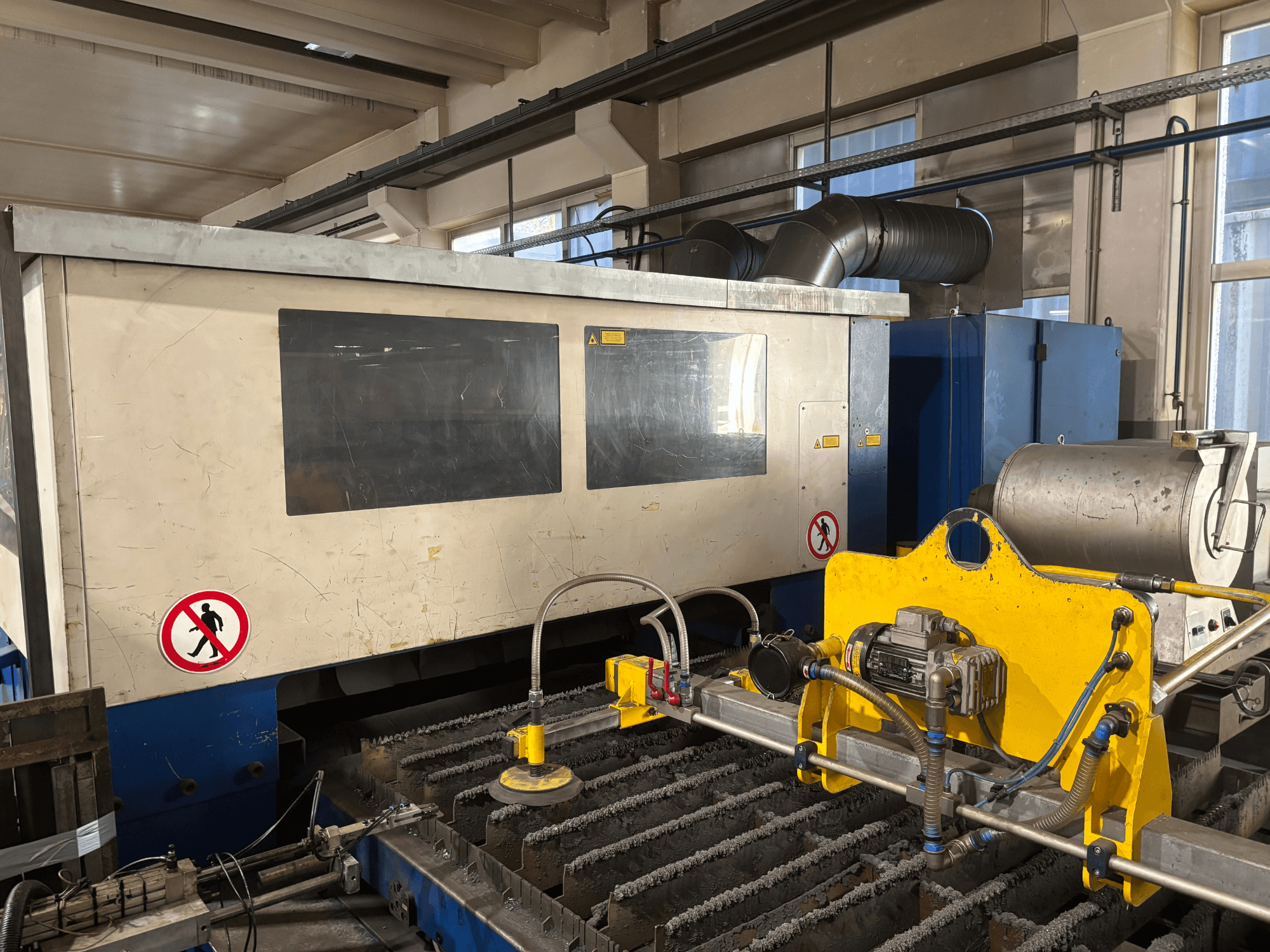

TRUMPF Trumatic L3030 CO2 laser cutting machine, front view showcasing control interface and cutting surface details.
TRUMPF Trumatic L3030 CO2 laser cutting machine, front view showcasing control interface and cutting surface details.

TRUMPF - Trumatic L3030 DE-CUT-TRU-2001-00001

£ 12,190
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

CO2 laser cutting machine manufactured in 2001. This TRUMPF Trumatic L3030 features a laser power of up to 3208 W in CW mode, providing efficient cutting capabilities. It includes a robust control system (TASC3) and operates on a 3-phase AC supply. If you are looking to get high-quality cutting capabilities, consider the TRUMPF Trumatic L3030 machine we have for sale. Contact us for further details.

Overview

  • brand: TRUMPF
  • year: 2001
  • MODEL: Trumatic L3030
  • production hours: 65000
  • application type: Cutting
  • Location: Germany
  • machine type: CO2 Laser Cutting Machine

Technical Information - TRUMPF Trumatic L3030

Movement

  • Number of Axes: 3
  • X-axis Travel: 3000 mm
  • Y-axis Travel: 1500 mm
  • Z-axis Travel: 115 mm

Technical Specification

  • Laser Power: 3.2 kW

Additional Information

  • Electrical

    • Supply voltage: 400 V

    • Phases: 3-phase AC

    • Frequency: 50 Hz

    • Rated power: 73 kVA

    • Rated current: 105 A

    • Maximum fuse protection: 125 A

    • Control voltage: 24 V DC

  • Control

    • Control system: TASC3

    • Control software version: 2.4

  • Laser performance

    • CW mode power:

      • 100%: 3208 W

      • 85%: 2756 W

      • 75%: 2407 W

    • Pulsed (5 kHz) power:

      • 100%: 3208 W

      • 75%: 2416 W

      • 50%: 1610 W

      • 25%: 810 W

      • 10%: 328 W

      • 5%: 157 W

      • 1%: 0 W

  • RF/drive

    • Reflected RF power: 0.3 kW

    • Maximum CW RF amplitude: 100%

    • Switching frequency (CW): 50 kHz

    • Maximum pulse voltage: 10,000 V

  • Pressure and leakage

    • Operating pressure limits: 20.01–27.00 kPa

    • Maximum turbine pressure: 200 hPa

    • Leakage rate: 0.04 hPa/min

  • Thermal/CPU

    • Maximum CPU temperature: 49 °C

    • Actual CPU temperature: 43 °C

  • Optics/Alignment

    • Maximum beam alignment time: 600 s

  • Hours

    • Spindle hours: 65,000 h

Additional equipment

  • RIEDEL chiller (cooling system) (2001), Type: L 15/21 TR3

    • Supply voltage: 400 V

    • Phases: 3-phase

    • Frequency: 50 Hz

    • Nominal current: 42 A

    • Protection class: IP54

    • Refrigerant: R134a

    • Refrigerant charge: 11.5 kg

    • Maximum water pressure: 20.2 bar

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
