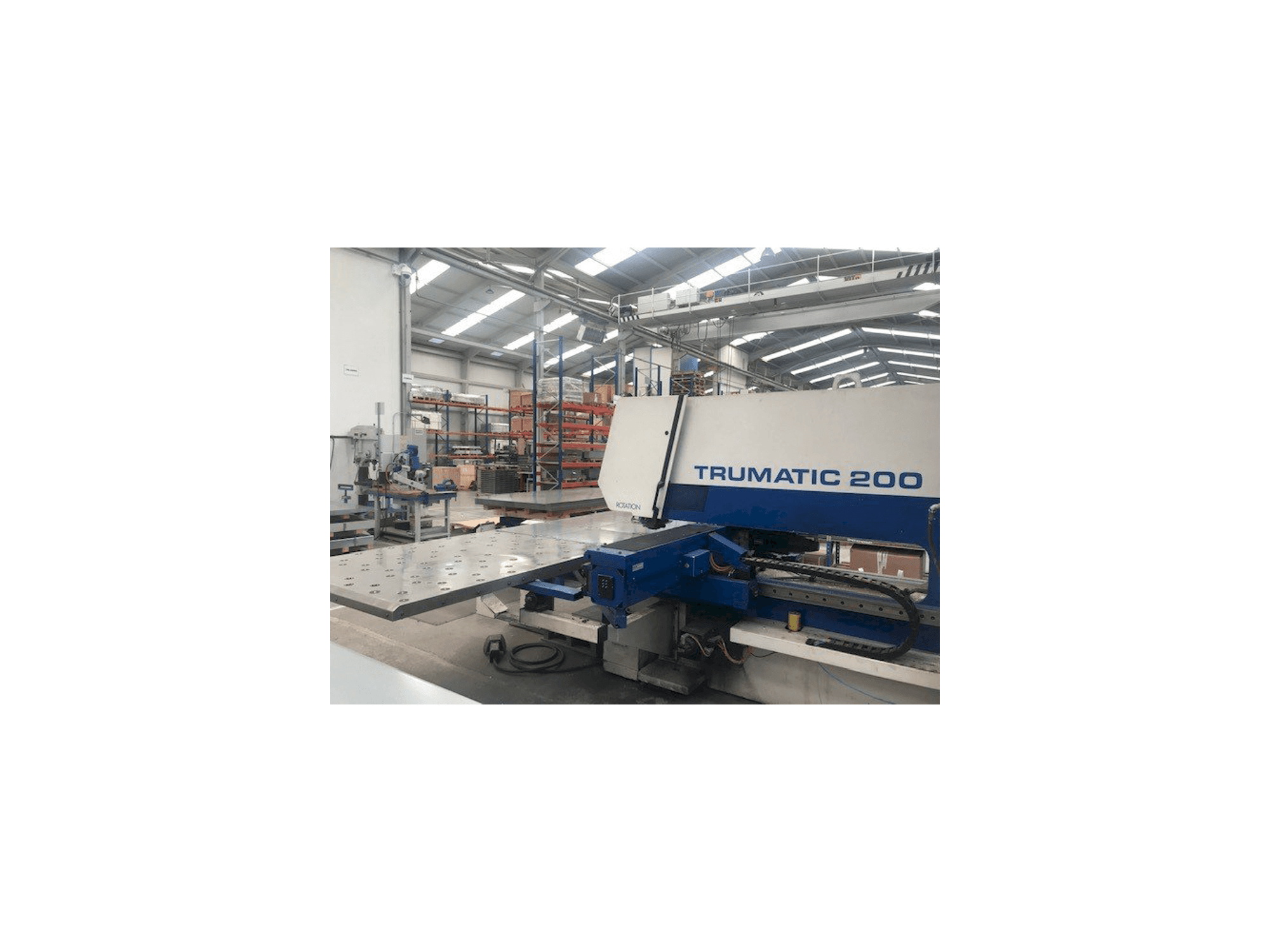

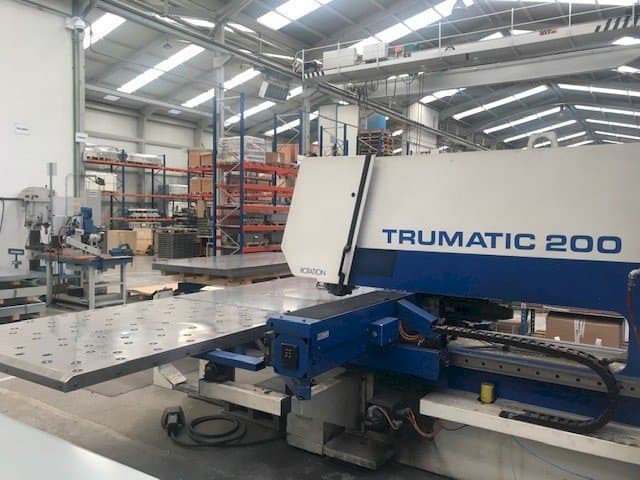

Left side view of Trumpf Trumatic 200 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

TRUMPF Trumatic 200

Photo Gallery

TRUMPF - Trumatic 200ES-PUN-TRU-1997-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
➤ Trumpf Trumatic 200 Punching Machine - Used

Show in original language

This Trumpf Trumatic 200 Punching Machine from 1997 was made in Germany. It counts with 66093 production hours since then. It is operated through a Trumagraph CC220 control unit. This machine includes a punching force of 165 kN. During the past, it has mainly worked with steel up to 6,4 mm of thickness. It presents good maintenance.

Overview

brand: TRUMPF
year: 1997
MODEL: Trumatic 200
production hours: 66093
application type: Punching
Location: Spain
machine type: CNC Punch Press

Technical Information - TRUMPF Trumatic 200

General Data

Measurements height: 2435 mm
Machine weight: 8000 kg

Control Unit

Model: CC220

Main drive

Punching force: 165 kN
Maximum sheet thickness: 6,4 mm

Movement

X-AXIS Movement: 1280 mm
Y-AXIS Movement: 2070 mm

Workpiece

Workpiece weight: 150 kg

Tools

Number of stations: 15 + 2

Media

Main electronic connection: 400 V
Power consumption: 14 kVA

Additional Information

Machine Benefits

Qualitative Machine Benefits

Very good status
Good maintenance

Technical Machine Benefits

Hydraulic punching head
Linear storage system with 15 slots + 2 jaws

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
