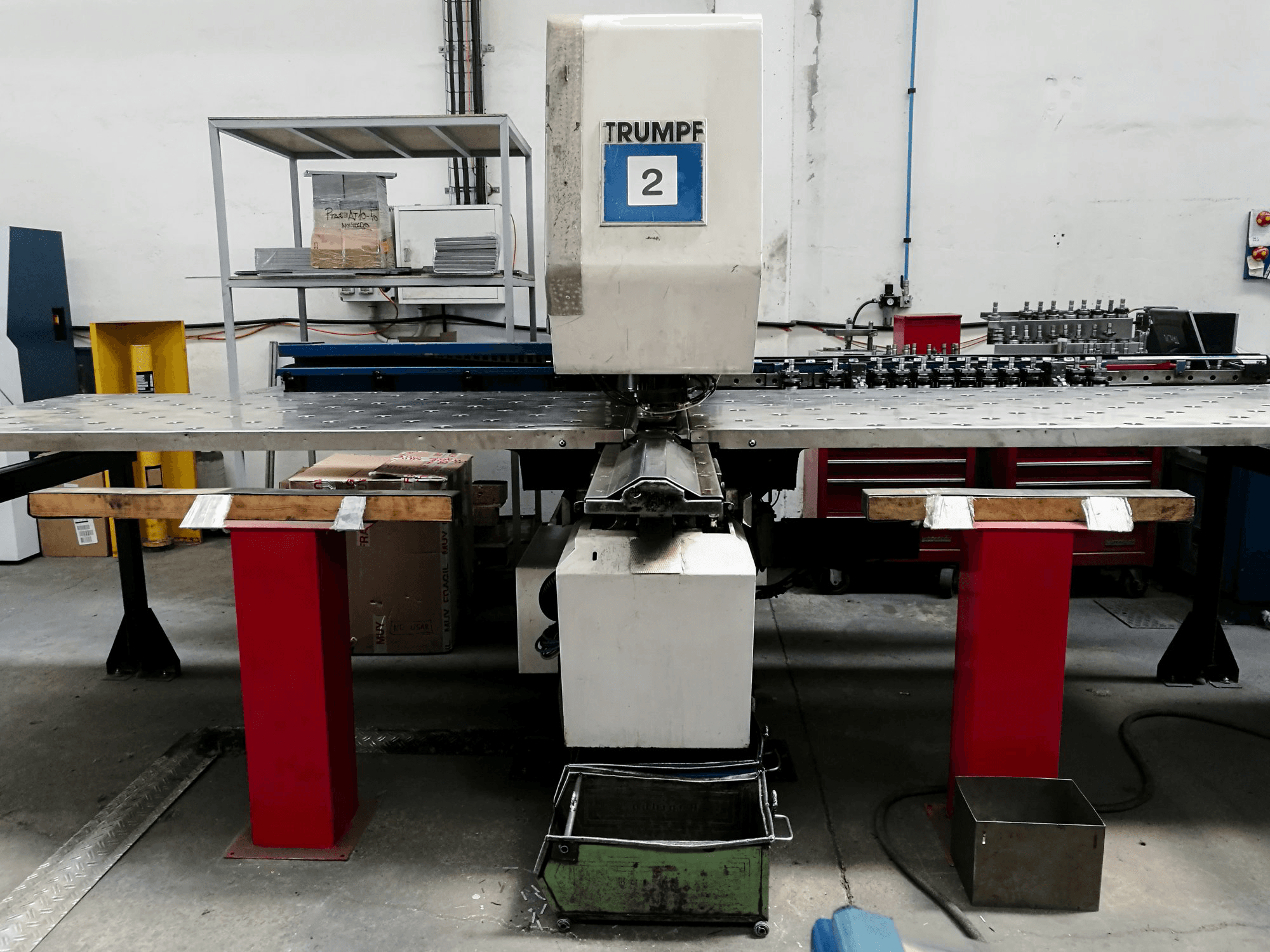

Trumpf Trumatic 160 R Turret Punching Machine

Show in original language

The Trumpf Trumatic 160 R, manufactured in 1993 in Germany, is a Turret Punching Machine that has worked for 32555 hours since its production. This recently inspected machine is equipped with an integrated Bosch CC 200 Trumagraph Control unit with remote control. The Trumatic is easy to handle and has a great advantage in operating specially with pieces up to 1000 x 1000 mm.

Overview

brand: TRUMPF
year: 1993
MODEL: Trumatic 160 R
production hours: 32555
application type: Punching
Location: Spain
machine type: Punch-Laser Combination
availability: Sold
control unit brand: BOSCH

Technical Information - TRUMPF Trumatic 160 R

General Data

Measurements width: 4942 mm
Measurements depth: 5098 mm
Measurements height: 2195 mm
Machine weight: 4300 kg

Control Unit

Model: CC 200 Trumagraph
Remote control: Yes
Brand: BOSCH

Main drive

Number of spindles: 1
Punching force: 150 kN

Movement

X-AXIS Movement: 1000 mm
Y-AXIS Movement: 1000 mm

Tools

Number of stations: 9

Media

Main electronic connection: 380 V / 50 Hz
Air pressure: 6 bar

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
