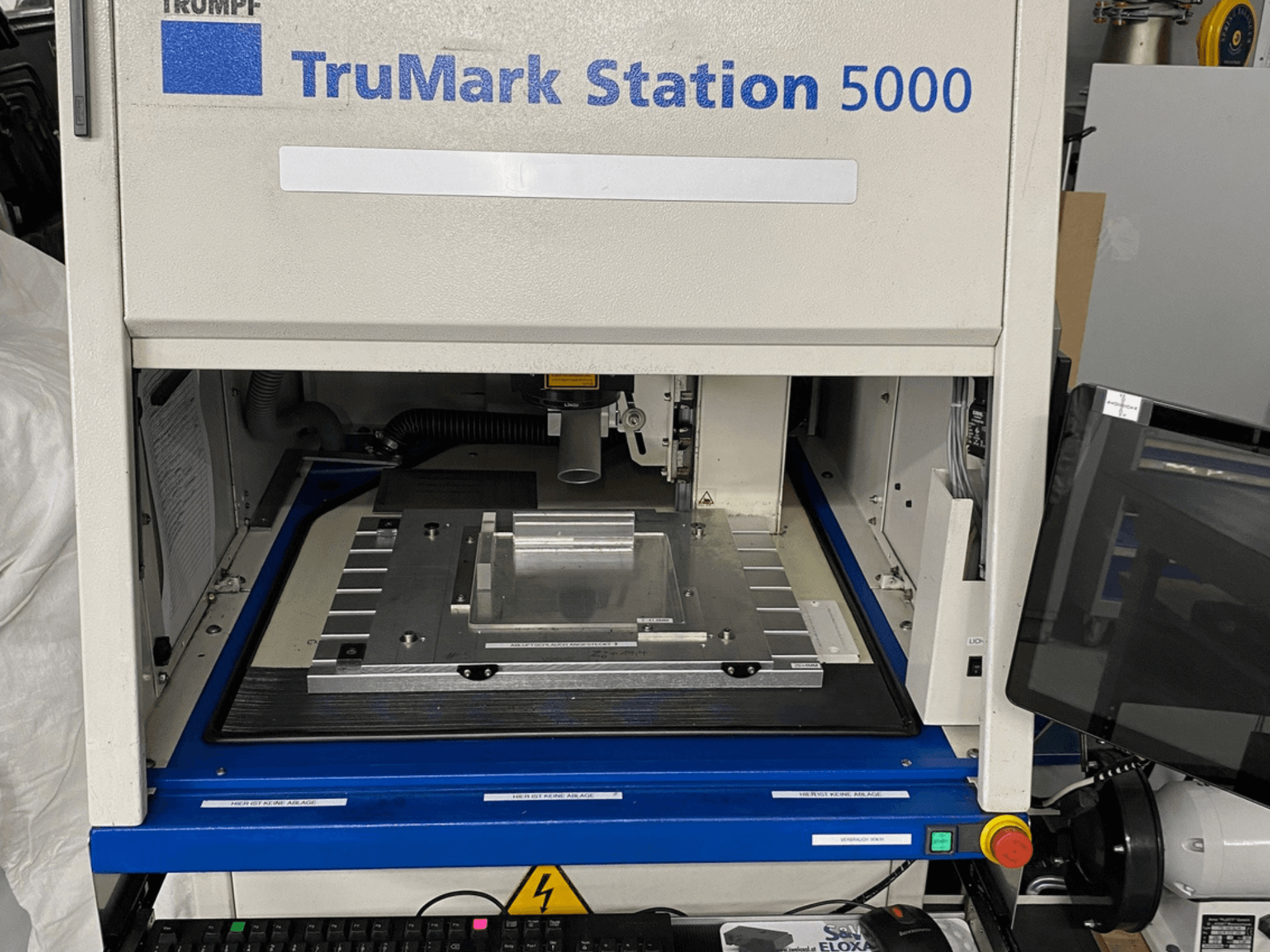

This 3-axis TRUMPF Trumark Station 5000 was manufactured in 2008. It features maximum workpiece dimensions of 680 mm x 500 mm x 700 mm and a traverse path of 500 mm on the Z-axis. The machine has a maximum workpiece weight of 50 kg without the X/Y axis. If you are looking to get high-quality laser marking capabilities, consider the TRUMPF Trumark Station 5000 machine we have for sale. Contact us for further details.
Overview
- brand: TRUMPF
- year: 2008
- MODEL: Trumark Station 5000
- application type: Other Sheet Metal Machinery
- Location: Austria
- machine type: Laser Marking Machine
Technical Information - TRUMPF Trumark Station 5000
Technical Specification
- Laser Power: 0.05 kW
Additional Information
- Maximum Workpiece Dimensions (W x H x D): 680 mm x 500 mm x 700 mm
- Maximum Workpiece Weight: 50 kg (without X/Y axis), 25 kg (with X/Y axis)
- Traverse Path Z-Axis: 500 mm
- Traverse Path X-Axis: 300 mm
- Traverse Path Y-Axis: 300 mm
- Traverse Speed Z-Axis: 1.5 m/min
- Traverse Speed X-Axis: 6 m/min
- Traverse Speed Y-Axis: 6 m/min
- Electrical Connection (Voltage): 115 V / 230 V
- Electrical Connection (Frequency): 50 Hz / 60 Hz
- Maximum Power Consumption: < 2.55 kW
- Workstation Dimensions (W x H x D): 860 mm x 2000 mm x 1310 mm
- Workstation Weight (without laser): 410 kg
- Laser Class: Class 1
- Laser Compatibility: Combined with VMc 1-6 and TruMark 7020 marking lasers
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
