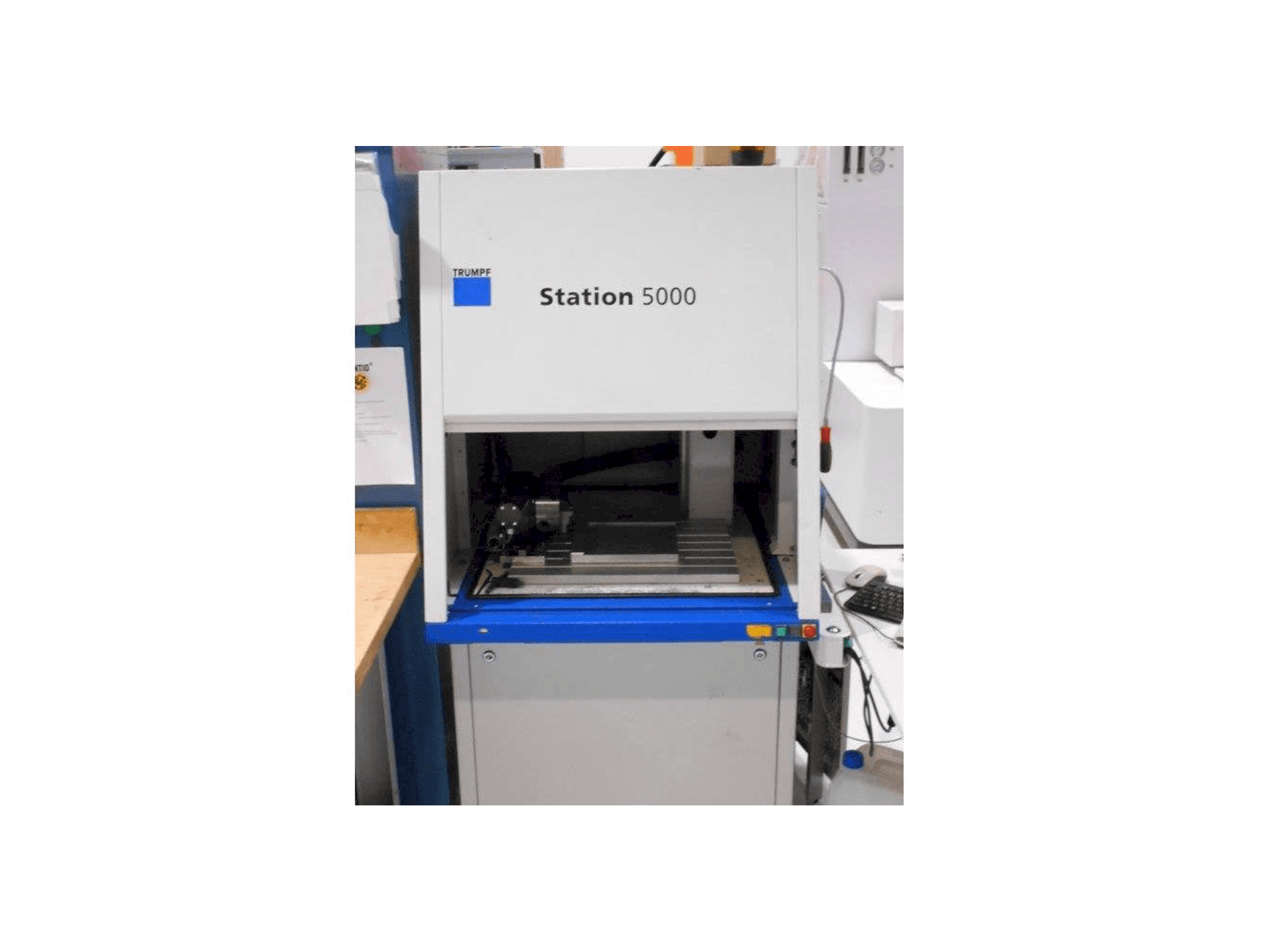

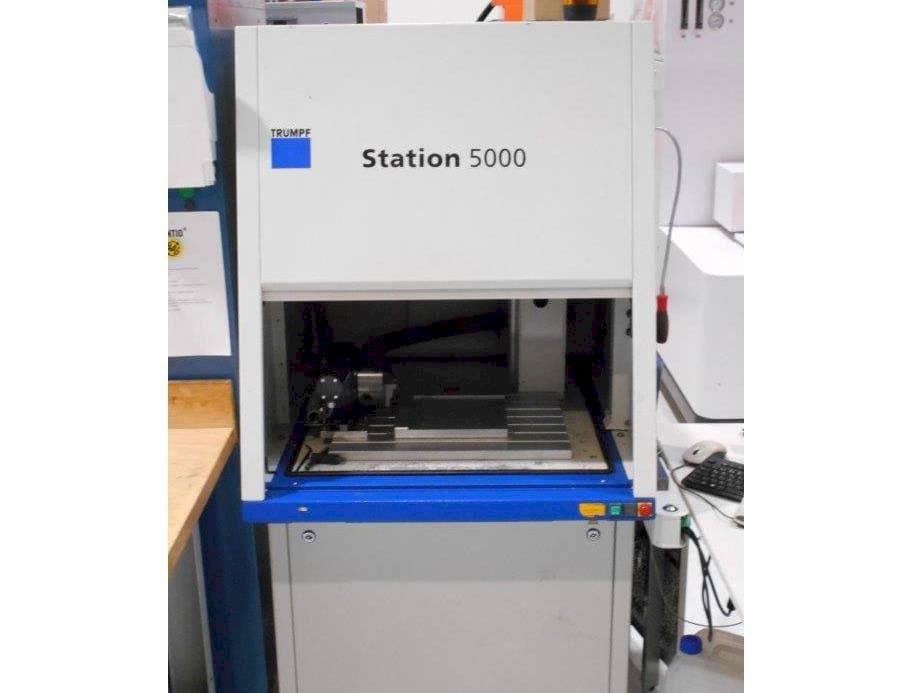

Front view of Trumpf TruMark 5000 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

TRUMPF TruMark 5000

Photo Gallery

TRUMPF - TruMark 5000AT-LAS-TRU-2006-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
Trumpf TruMark 5000 Laser cutting machine

Show in original language

This Trumpf TruMark 5000 Laser cutting machine was manufactured in the year 2006 and has 48000 production hours. The machine has a workpiece weight of 10 kg.

Overview

brand: TRUMPF
year: 2006
MODEL: TruMark 5000
production hours: 48000
application type: Other Sheet Metal Machinery
Location: Austria
machine type: Laser Marking Machine

Technical Information - TRUMPF TruMark 5000

General Data

Measurements width: 1630 mm
Measurements depth: 1000 mm
Measurements height: 1790 mm
Machine weight: 420 kg

Main drive

Spindle speed range: 14 1/MIN
Laserpower: 2 kW

Workpiece

Workpiece weight: 10 kg

Media

Main electronic connection: 230 V / 50-60 Hz

Additional Information

Machine Benefits

Qualitative Machine Benefits

Protective filter 200x 1oomm ( 1064nm)
Protected on the laser side with a plexiglas against damage

Technical Machine Benefits

Da 150 trumark station + 3 jaws chuck
Rotary axis for circumferential marking
Diameter d : 150 mm
Center height 75 mm
Center passage 60 mm
Resolution 0,0125 °
Repeating accuracy o, 125°.
Axial load 700 n, radial load 250 n
Tangential torque 15 nm, max. Tilting moment 25 nm
With stepper motor

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
