TRUMPF - TrumaBend V85XDE-BEN-TRU-2003-00005
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Sheet Metal Machinery
- TRUMPF TrumaBend V85X Bending machine

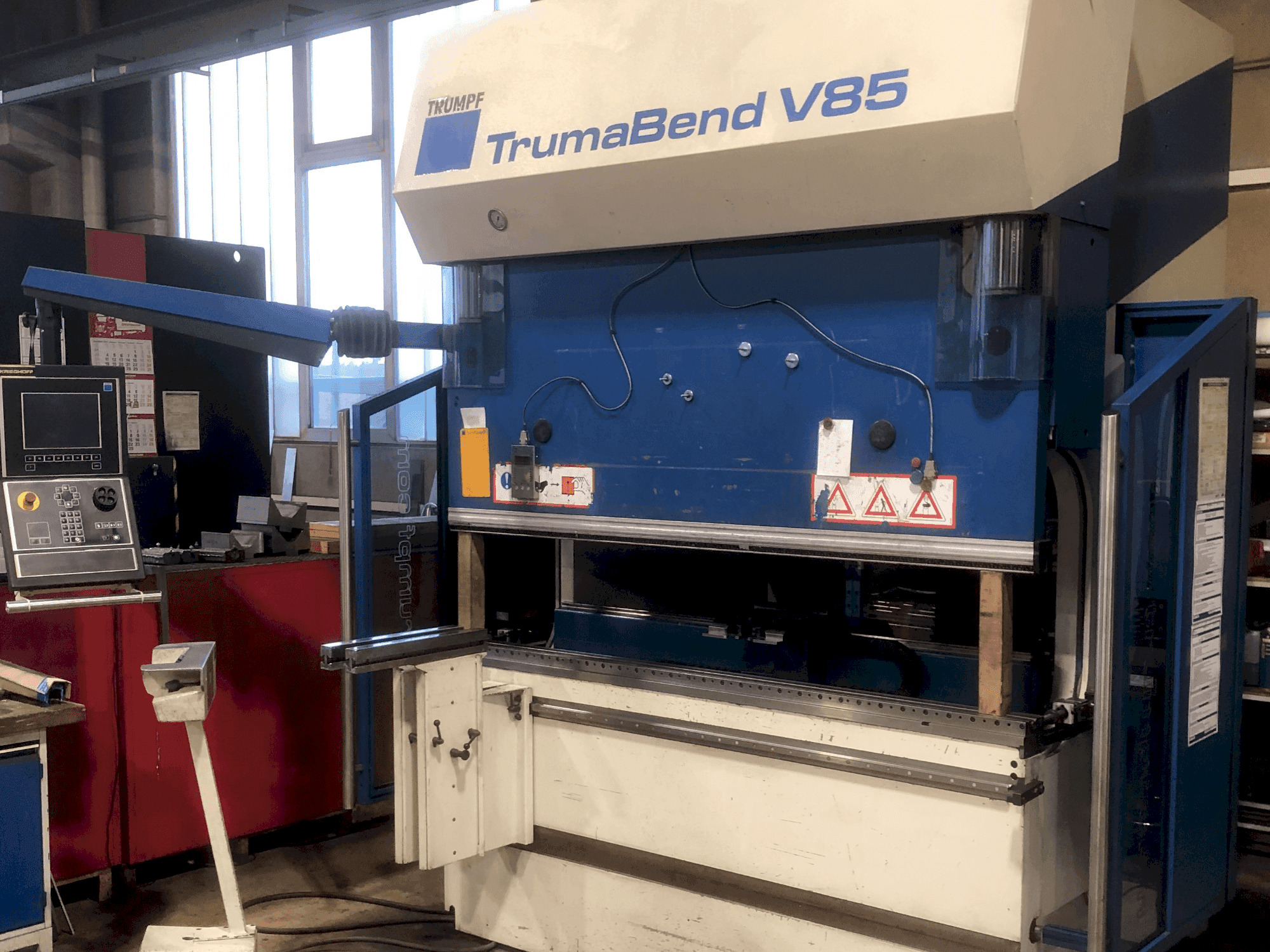

This TRUMPF TrumaBend V85X Bending machine was manufactured in 2003 in Germany. It has a press force of 850 kN and a bending length of 2050 mm. Free upright clearance is 1750 mm. The standard equipment covers a sturdy machine frame, pressure beam with high bending strength and CNC backgauge with rack and pinion drive for X- and R-axis. As special features the machine has an increased installation height and stroke by 150 mm each to 535 mm, a 5-axes backgauge system, a hydraulic and hardened upper tool clamping, a hydraulic lower tool clamping, CNC crowning, a BendGuard safety device, a support front console and control cabinet climatization (for 2-, 4-axis backgauge systems). It comes with a bending tool package. License for software, ToPs 600 for bending, included. See attached original tech specs positions as PDF (German).
Overview
- brand: TRUMPF
- year: 2003
- MODEL: TrumaBend V85X
- production hours: 34599
- application type: Bending
- Location: Germany
- machine type: Press Brake
- control unit brand: TRUMPF
Technical Information - TRUMPF TrumaBend V85X
Control Unit
- Control Brand: TRUMPF
- Control Model: 2D graphic control
Movement
- Number of Axes: 5
Technical Specification
- Bending Length: 2050 mm
- Pressing Force: 850 Kn
Additional Information
Additional equipment
- Tool Package
- Software ToPs 600 for bending: License included
Machine Benefits
Qualitative Machine Benefits
- Installation height and stroke increased by 150 mm each to 535 mm
- Back gauge system 5 axes
- Hydraulic and hardened upper tool clamping
- Hydraulic lower tool clamping
- Cnc crowning
- Bendguard safety device
- Support console
- Front control cabinet
- Climatization (for 2-, 4-axis backgauge systems)
- Preparation for acb®
Technical Machine Benefits
- Free upright clearance 1750 mm
- Installation height 385 mm
- Electrical equipment for three-phase current 400 v / 50 hz
- Modern block hydraulics
- Cnc backgauge with rack and pinion drive, for x- and r-axis, danger-free movement of the stop fingers from the front
- "modufix" upper tool holder system, manual
- Bottom tool holder for ev dies, manual clamping, displacement programmable
- Safety device
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
