- ➤ Used TRUMPF TruLaser 5030 Fiber (L56) - 2015 - Laser cutter

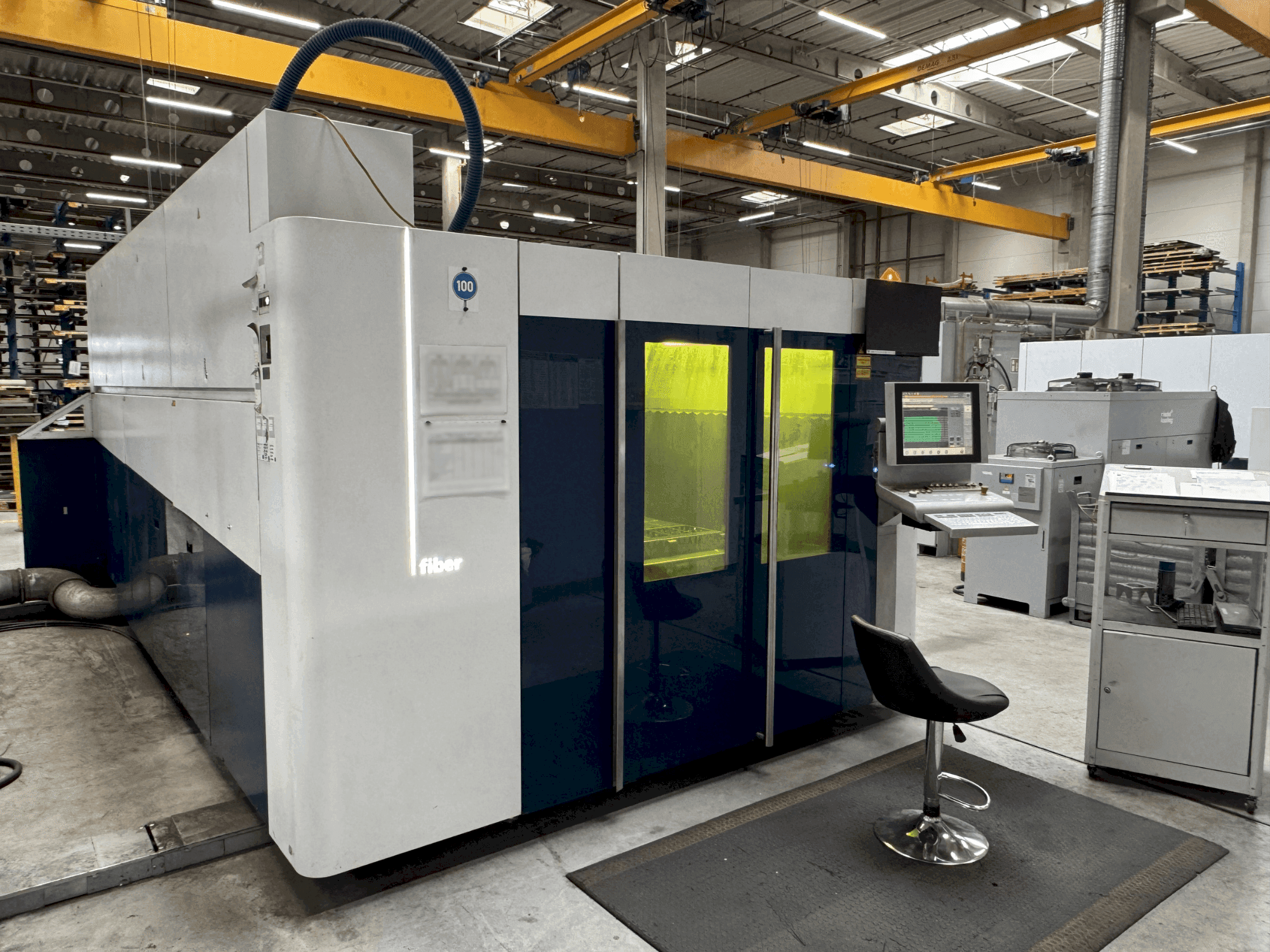

The TRUMPF TruLaser 5030 (L56) fiber 5kW, manufactured in 2015, is a precise and efficient laser cutter. Its 3-axis system handles work dimensions of 3000 x 1500 x 115 mm. Powered by a 5000 Watt TruDisk 5000 fiber laser, it achieves high-speed cuts up to 265 m/min. The machine, measures 8800 x 4800 x 2400 mm. It is controlled by a Siemens Sinumerik 840 D for accuracy and ease of use. Contact us for more information about this machine.
Overview
- brand: TRUMPF
- year: 2015
- MODEL: TruLaser 5030 Fiber
- application type: Cutting
- Location: Poland
- machine type: Fiber Laser Cutting Machine
- control unit brand: SIEMENS
Technical Information - TRUMPF TruLaser 5030 Fiber
Control Unit
- Control Brand: SIEMENS
- Control Model: Sinumerik 840 D
Dimensions
- Machine Depth: 8800 mm
- Machine Height: 2400 mm
- Machine Weight: 12000 kg
Movement
- Number of Axes: 3
- X-axis Travel: 3000 mm
- Y-axis Travel: 1500 mm
- Z-axis Travel: 115 mm
Technical Specification
- Laser Power: 5 kW
Additional Information
Machine Benefits
Qualitative Machine Benefits
- High precision and clean cuts due to the powerful trudisk 5000 fiber laser with a rated output of 5000 watt.
- Large working area (3000 x 1500 x 115 mm) allows for processing of large sheets, enhancing productivity.
Technical Machine Benefits
- High-speed operation with a maximum speed of 265 m/min ensures rapid processing times.
- Advanced siemens sinumerik 840 d control system provides precise and efficient control over cutting operations.
- Working hours: 55377 h
- Laser on: 40239 h
- Maximum material thickness: mild steel: 25 mm/ stainless steel: 20 / 25 mm with brightline fiber/ aluminum: 20 / 25 mm with brightline fiber
Extra Information
Machine still under power
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
