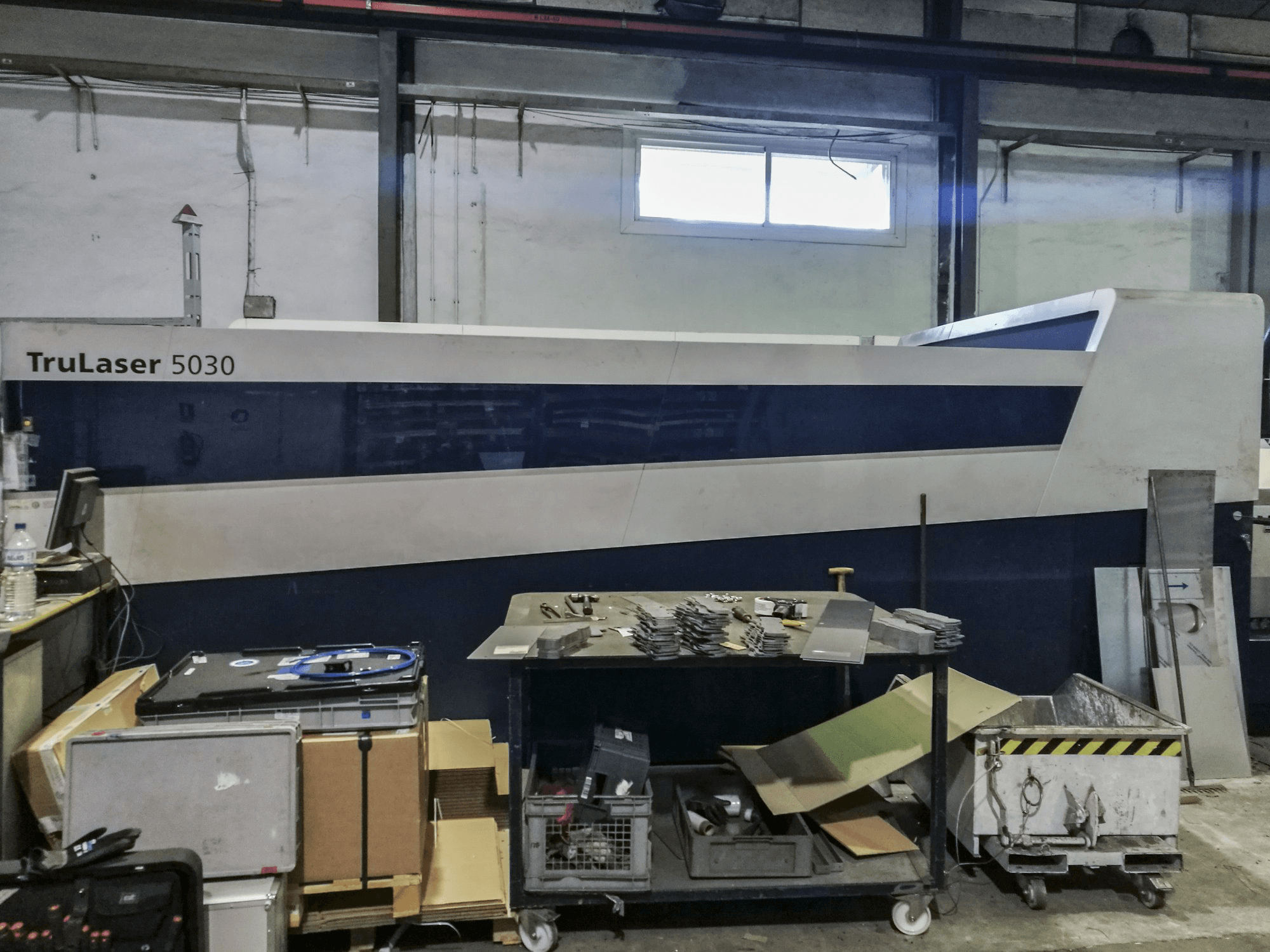

Right side view of Trumpf TruLaser 5030 fiber Machine
Right side view of Trumpf TruLaser 5030 fiber Machine

Thank you for your visit

This machine was recently sold.

Browse similar machines

TRUMPF - TruLaser 5030 fiberES-LAS-TRU-2012-00001

Sold

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Trumpf TruLaser 5030 fiber Laser Cutting Machine from 2012 was manufactured in Germany and has a working record of 25754 production hours. Operated through a SIEMENS SINUMERIK 840D Control unit, this fiber cutting machine incorporates a Trumpf TruDisk 5001 device and comes in good conditions thanks to a regular maintenance. Upon request, an additional Trumpf LiftMaster is available.

Overview

  • brand: TRUMPF
  • year: 2012
  • MODEL: TruLaser 5030 fiber
  • production hours: 25754
  • application type: Cutting
  • Location: Spain
  • machine type: Fiber Laser Cutting Machine
  • control unit brand: SIEMENS

Technical Information - TRUMPF TruLaser 5030 fiber

General Data

  • Measurements width: 9300 mm
  • Measurements depth: 4600 mm
  • Measurements height: 2200 mm
  • Machine weight: 12700 kg

Control Unit

  • Brand: SIEMENS
  • Model: SINUMERIK 840D

Main drive

  • Laserpower: 5 kW
  • Laser type: Fiber

Movement

  • X-AXIS Movement: 3000 mm
  • Y-AXIS Movement: 1500 mm
  • Z-AXIS Movement: 115 mm

Workpiece

  • Workpiece x: 3000 mm
  • Workpiece y: 1500 mm

Max Material thickness

  • Steel: 25 mm
  • Stainless steel: 15 mm
  • Aluminum: 20 mm

Media

  • Main electronic connection: 400 V / 50 Hz
  • Power consumption: 55 kVA

    Additional Equipment

    • - Trumpf LiftMaster (upon request)

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

    Your account manager:

    Sergi Guardia

    Sergi Guardia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

    get in contact

    Payment Terms

    • Payment in advance

    • Asset Financing
