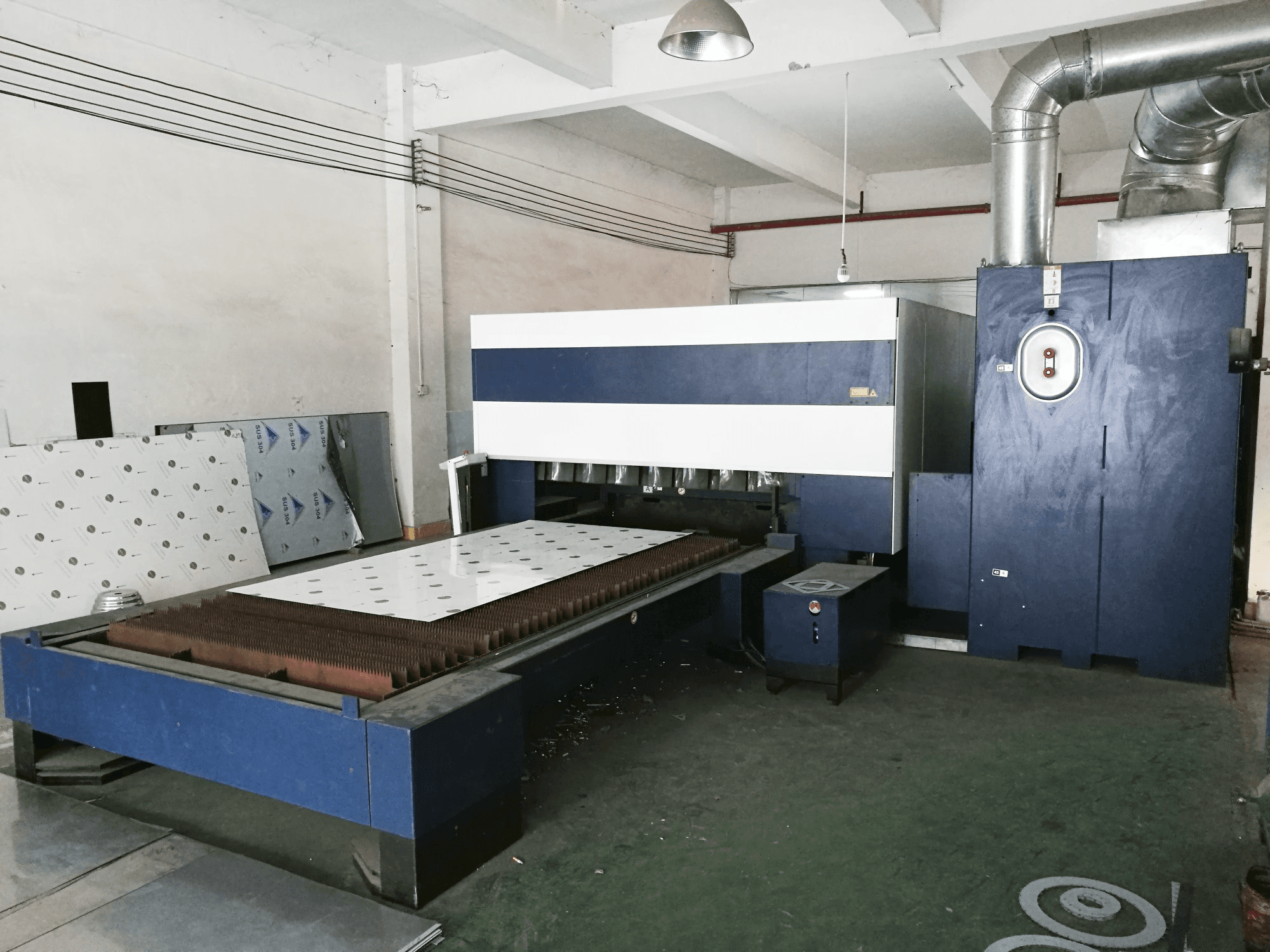

This Trumpf TruLaser 3030 Laser Cutting Machine was produced in 2014 and has been in operation for 11044 hours ever since. The incorporated Control unit in this equipment is a SIEMENS SINUMERIK 840D. For its efficiency and durability, the model represents a benchmark in the sheet metal working field.
Overview
- brand: TRUMPF
- year: 2014
- MODEL: TruLaser 3030
- production hours: 11044
- application type: Laser Cutting
- Location: China
- machine type: Laser Cutting Machines (CO2)
- availability: Sold
- control unit brand: SIEMENS
- GINDUMAC ID: CN-LAS-TRU-2014-00001
Technical Information
General Data
- Measurements width: 9155 mm
- Measurements depth: 3400 mm
- Measurements height: 2200 mm
- Machine weight: 12000 kg
Control Unit
- Brand: Siemens
- Model: SINUMERIK 840D
- Interface: USB, Ethernet
Main drive
- Number of spindles: 1
- Laserpower: 4 kW
Movement
- X-AXIS Movement: 3000 mm
- X-AXIS Working Feed: 60 m/min
- Y-AXIS Movement: 1500 mm
- Y-AXIS Working Feed: 60 m/min
- Z-AXIS Movement: 115 mm
- Z-AXIS Working Feed: 60 m/min
- X-Y-Simultaneous Working Feed: 85 m/min
- Pa Accuracy: 0.1
- Ps Accuracy: 0.03
Workpiece
- Workpiece x: 3000 mm
- Workpiece y: 1500 mm
Table
- Outer length: 3000 mm
- Outer width: 1500 mm
Max Material thickness
- Steel: 20 mm
- Stainless steel: 15 mm
- Aluminum: 10 mm
Media
- Main electronic connection: 400 V / 50 Hz
- Power consumption: 88 kVA
- Air pressure: 6 bar
- He consumption: 13.1 l/h
- CO2 consumption: 1.1 l/h
- N2 consumption: 5.8 l/h
- Lubrication tank: 95 L
Additional Equipment
- - Laser cutting head f = 130
- - Laser cutting head f = 250
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
