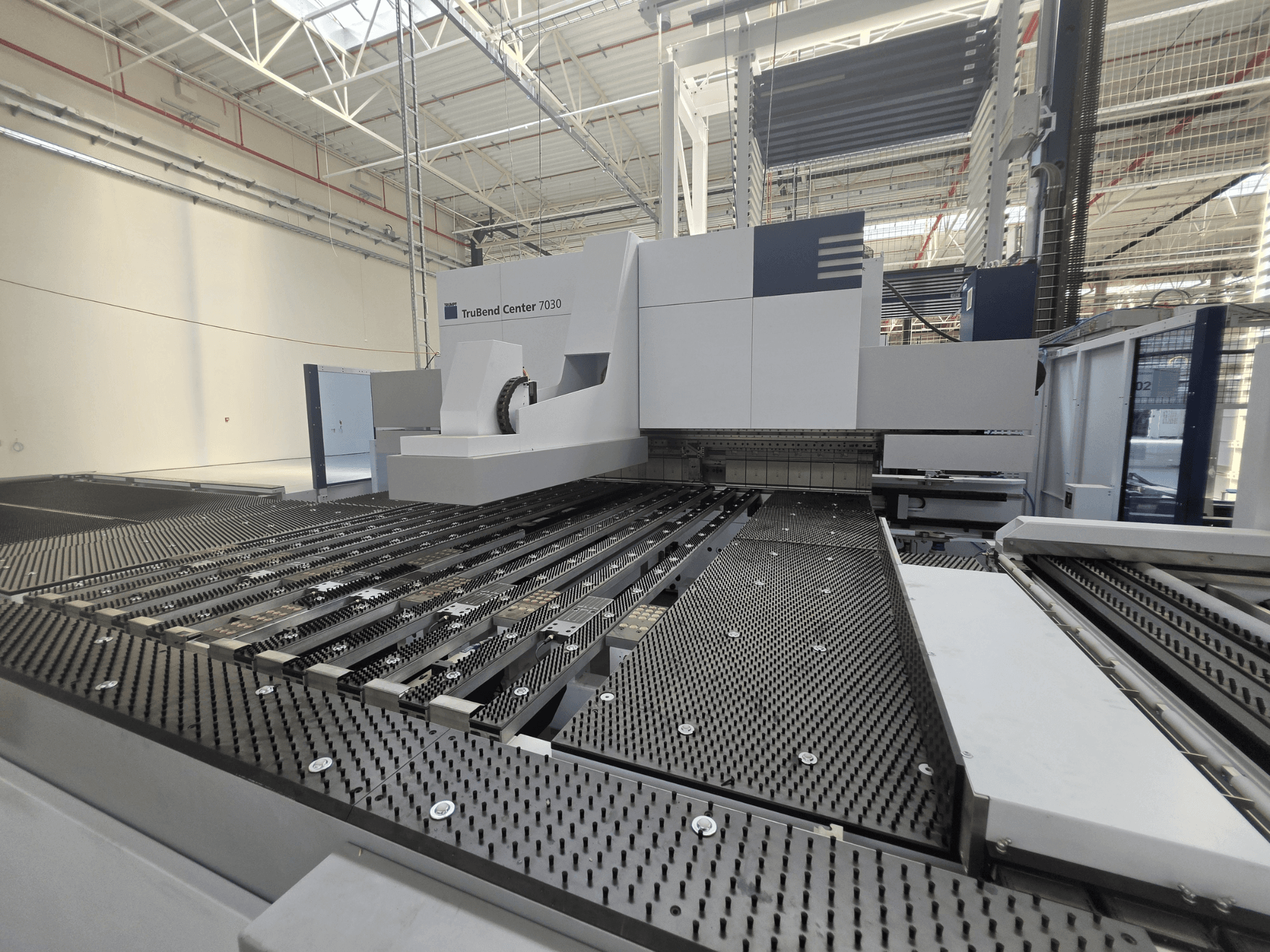

TRUMPF - TruBend Center 7030 (B34)PL-OTH-TRU-2022-00002

• Capacities

  • Max bending edge length: 3,123 mm

  • Min bending edge length: 200 mm

  • Min bending width with standard holder: 145 mm

  • Min bending width with ENW tools: 40 mm

  • Max box height: 220 mm

  • Holder clamping force: 101 t

  • Material thickness: min 0.4 mm; max structural steel 3.0 mm; max stainless 2.2 mm; max aluminum 4.0 mm

• Machine construction: Welded steel frame; bending system: Wedge drive; crowning: Included, adjustable via machine control

• Manipulation and positioning

  • 2-axis part manipulator with suction cups (X travel 2,653 mm; stroke 100 mm; 12 suction modules)

  • 5-axis rear stop; rotary manipulator; front stop; loading pincers

  • Automatic part positioning and rotation

• Speeds

  • Y-axis rapid traverse: 250 mm/s

  • Front stop speed: 3,000 mm/s

  • Part manipulator speed: 3,000 mm/s

  • Rotary manipulator speed: up to 3 rev/s

  • ToolMaster Bend speed: 2,400 mm/s

• Positioning accuracy

  • Y-axis: 0.10 mm; X-axis: 0.05 mm; R-axis: 0.05 mm

• CNC control

  • 21.5-inch touchscreen; OS: Windows 7 Ultimate 64-bit

  • Keyboard and mouse; USB; RJ45 network; Ethernet 10/100 Mbit/s

  • Internet teleservice / remote diagnostics

• Bend angle measurement

  • Optical bend-angle assistance; integrated camera; graphical comparison of programmed vs. actual angle

  • Minimum part-side length for angle measurement: 10 mm

• Safety equipment

  • CE certification; rotating safety doors; safety light barriers; working-area access protection

  • Foot switch with enable function; emergency stop

• Electrical data: 80 kVA

Additional equipment

• Automatic loading/unloading system with storage interface

  • Automatic blank separation/feeding/transfer; automatic finished-part unloading

  • Belt conveyor for finished parts; max blank size 3,048 x 1,500 mm

  • Storage interface included

  • Loading trolley: Not included; Rail set: Not included

• Tooling and tool systems

  • ToolMaster Bend: Automatic hold-down tool positioning and setup; automatic positioning of standard, Pick&Place, and curved holders

  • Included tooling: 16 standard hold-down tools (160 mm each); 6 Pick&Place hold-down tools; Pick&Place segments 10/15/20/40 mm; corner hold-down tool (199 mm); OBW90 and UBW90 bending tools

  • ENW equipment: ENW function for tilting hold-down tools; ENW110-40 tool (length 3,123 mm; depth 40 mm); min bending width with ENW tools 40 mm

• Additional part handling modules

  • 12 three-surface vacuum modules (upper/lower/front suction)

  • 6 magnetic modules; 4 two-surface magnetic modules

  • Vacuum and magnetic modules can be used together

• Software and data capture

  • TecZone Fold floating license: automatic programming from 2D/3D data, automatic bending program generation, 3D simulation, collision checking, manual modification

  • Wireless 2D code reader with Bluetooth: barcode and DataMatrix reading; automatic production program loading
