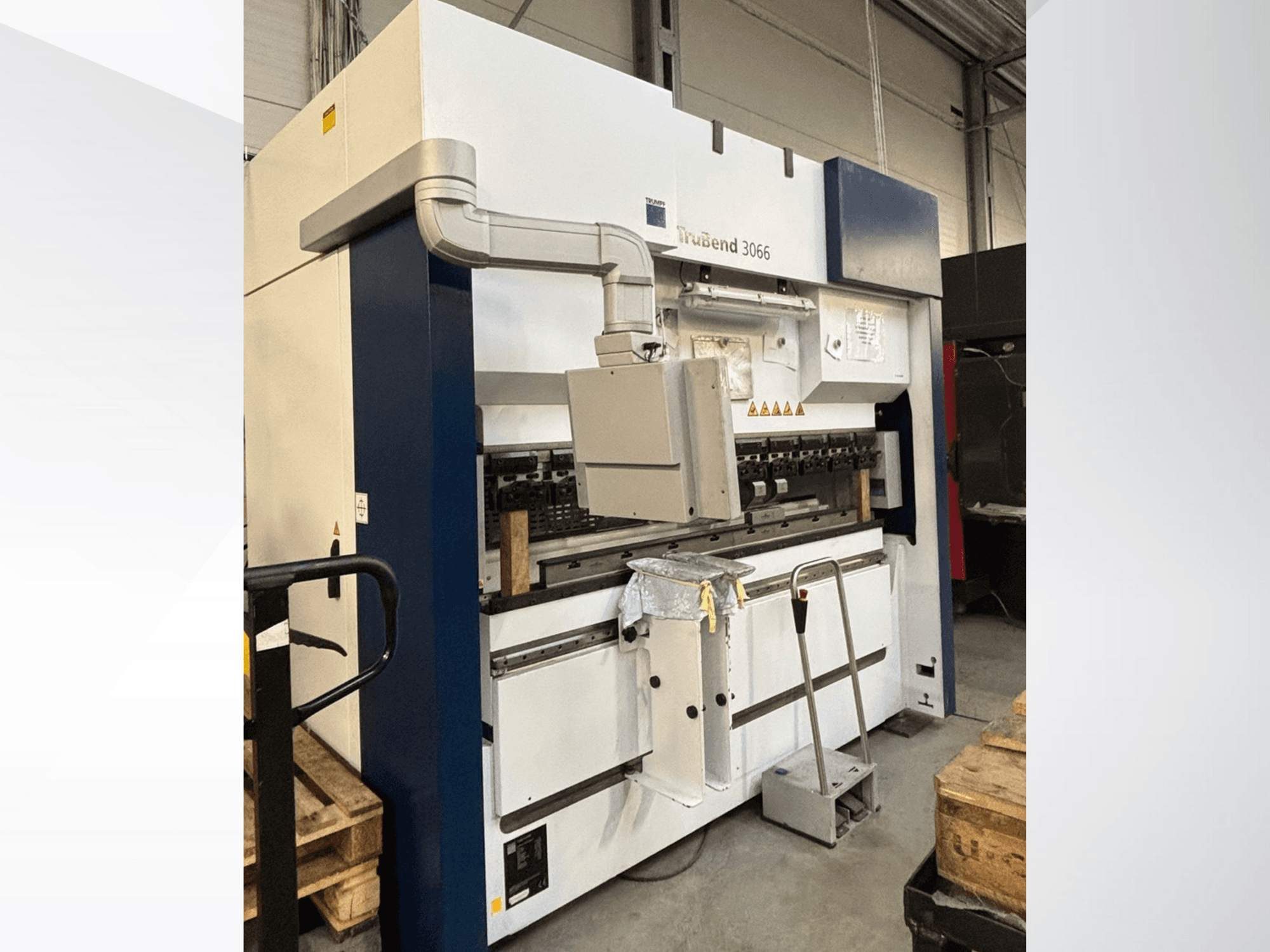

Trubend 3066 bending machine, front view, showing controls, metal frame, and safety features in a workshop setting.
Trubend 3066 bending machine, front view, showing controls, metal frame, and safety features in a workshop setting.

TRUMPF - TruBend 3066 B26 PL-BEN-TRU-2018-00001

£ 42,806
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 6-axis TRUMPF TruBend 3066 B26 press brake was manufactured in 2018. It features a press force of 660 kN, a bending length of 2600 mm, and a stroke of 200 mm. The machine includes a 4-axis backgauge (X/R/Z1/Z2) and operates with a rapid approach speed of 200 mm/s. If you are looking to get high-quality bending capabilities, consider the TRUMPF TruBend 3066 B26 machine we have for sale. Contact us for more information.

Overview

  • brand: TRUMPF
  • year: 2018
  • MODEL: TruBend 3066 B26
  • application type: Bending
  • Location: Poland
  • machine type: Press Brake

Technical Information - TRUMPF TruBend 3066 B26

Dimensions

  • Machine Depth: 1644 mm
  • Machine Height: 2370 mm
  • Machine Length: 2587 mm
  • Machine Weight: 5650 kg

Movement

  • X-axis Travel: 600 mm
  • Y-axis Travel: 200 mm

Additional Information

  • Y-axis Stroke: 200 mm

  • X-axis Travel: 600 mm

  • R-axis Travel: 150 mm

  • Backgauge Axes: X / R / Z1 / Z2 (4 axes)

  • Press Force: 660 kN

  • Bending Length: 2600 mm

  • Usable Open Height: Minimum clearance 167 mm

  • Maximum Distance Table–Beam: 347–432 mm depending on tooling

  • Throat Depth: Approx. 400–420 mm

  • Beam Inclination / Parallelism: ±3 mm

  • Y-axis Rapid Approach Speed: 200 mm/s

  • Y-axis Working Speed: 15 mm/s

  • Y-axis Return Speed: Up to 200 mm/s

  • Positioning Accuracy (Y-axis): 0.01 mm

  • Mains Supply: 400 V / 50 Hz

  • Connected Load: 15 kVA

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Borja Garcia

Borja Garcia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
