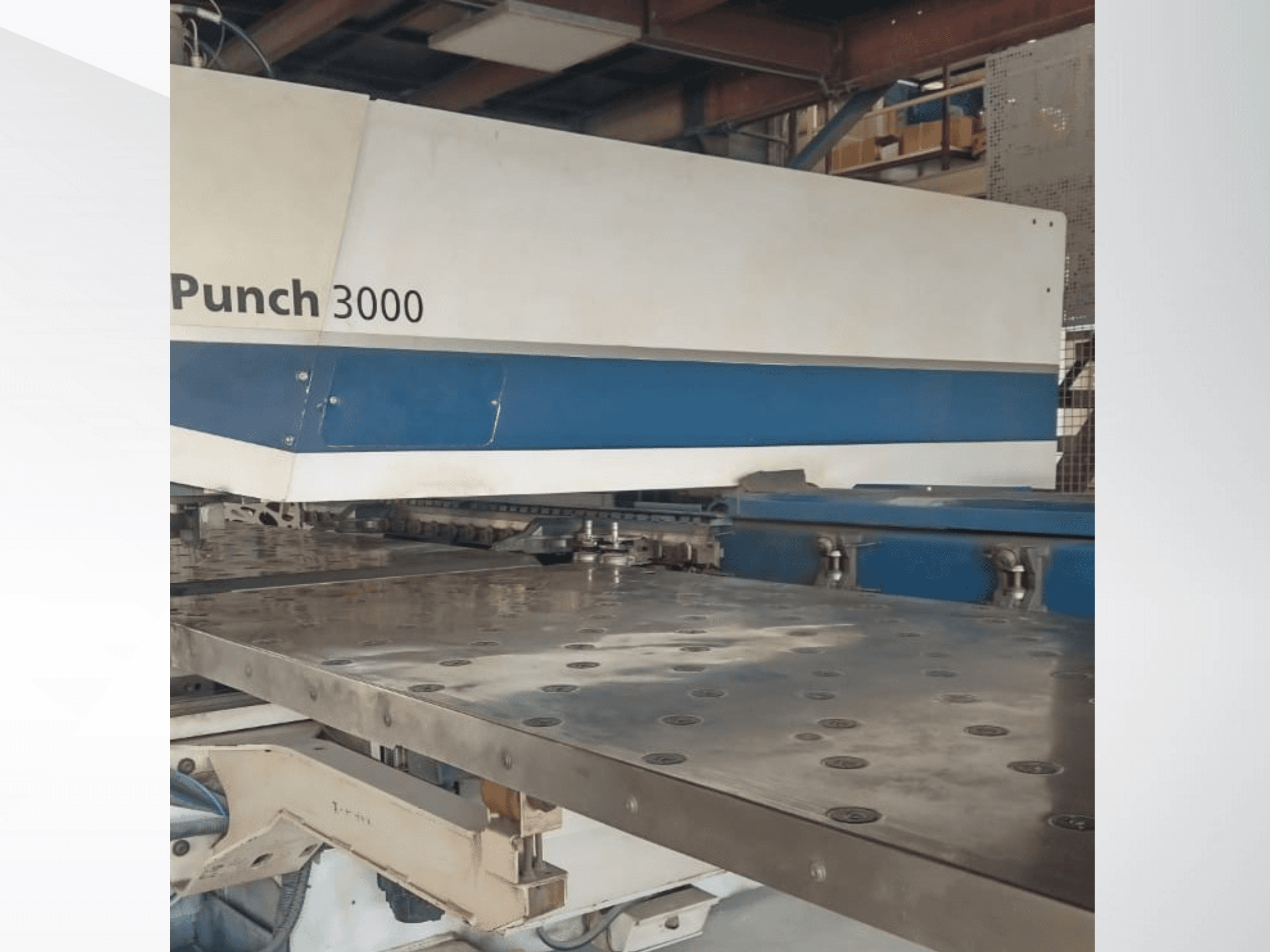

This TRUMPF TRUPUNCH 3000 (S11) was manufactured in 2012. It features a Bosch Rexroth MTX CMP70 control, a maximum sheet format of 2,500 × 1,250 mm, and can handle sheet thicknesses up to 6.4 mm. The punching force reaches 180 kN, with a maximum workpiece weight of 160 kg. It includes a linear magazine with 20 stations and supports various roller tools. Consider the opportunity to buy this TRUMPF TRUPUNCH 3000 (S11) CNC punching machine. Contact us for more information.
Overview
- brand: TRUMPF
- year: 2012
- MODEL: TRUPUNCH 3000 (S11)
- application type: Punching
- Location: United Arab Emirates
- machine type: CNC Punching Machine
Technical Information - TRUMPF TRUPUNCH 3000 (S11)
Dimensions
- Machine Depth: 6500 mm
- Machine Height: 2252 mm
- Machine Length: 5000 mm
- Machine Weight: 9300 kg
Additional Information
X-axis speed: 90 m/min
Y-axis speed: 60 m/min
Simultaneous X/Y speed: 108 m/min
C-axis speed: 330 rpm
Max. punching force: 180 kN
Max. pressure foot force: 20 kN
Max. workpiece weight: 160 kg
Max. sheet thickness: 6.4 mm
Max. sheet format: 2500 × 1250 mm (with repositioning)
Electrical connected load: 18 kVA
Fuse protection: 35 A
Pneumatic connection: 7–14 bar
Compressed air consumption: 8–10 Nm³/h
Tapping
Filling level inspection
Multibend
Multitool
Roller tools including cutting, pinching, folding, beading, knurling, deburring
Monitoring filling level
Hydraulic unit
Punch lubrication
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
