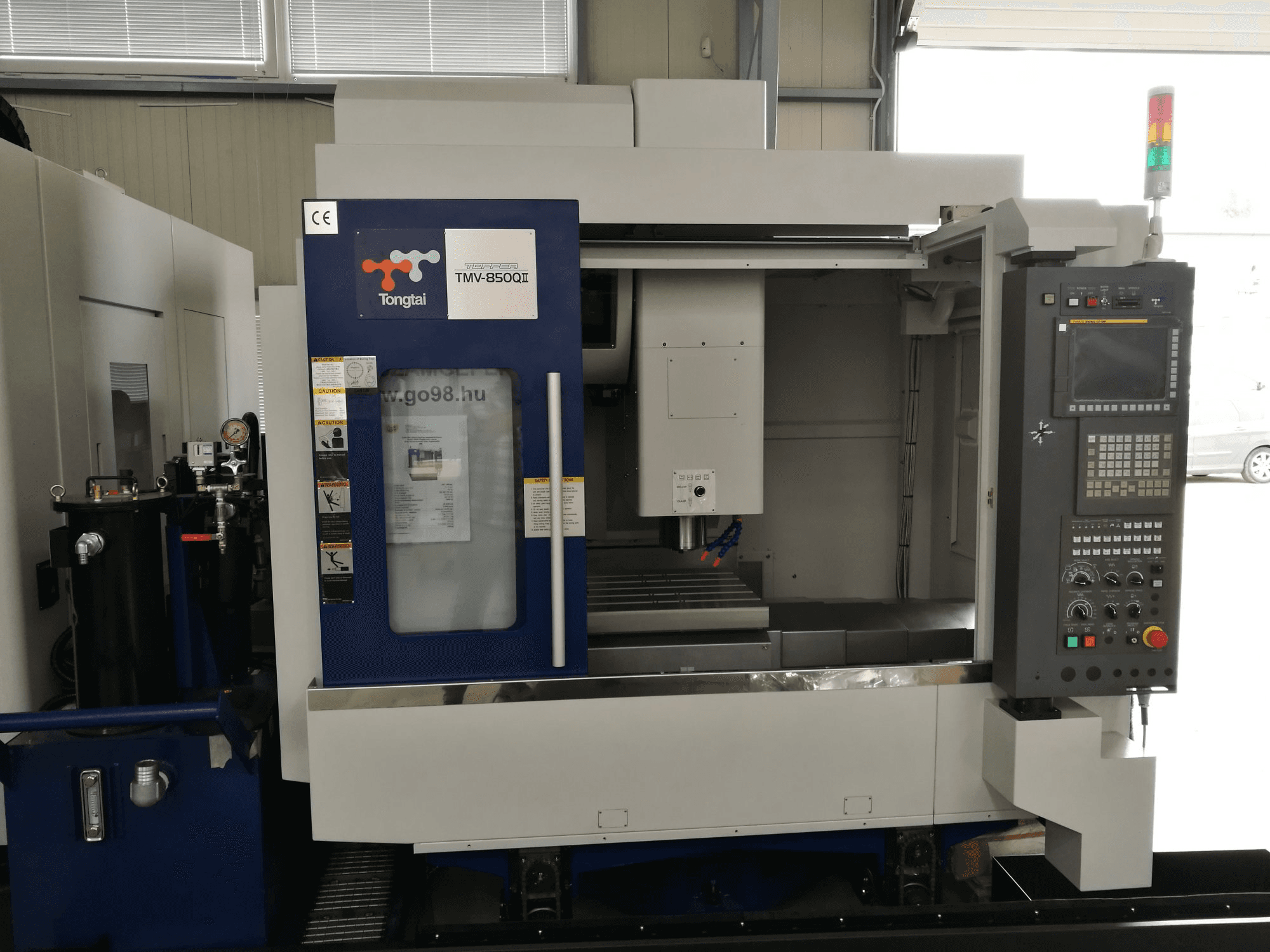

Front view of Tongtai TMV-850QII Machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Tongtai TMV-850QII

Photo Gallery

Tongtai - TMV-850QIIHU-MIL-TON-2017-00002

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Tongtai TMV-850QII Vertical Machining Center

Show in original language

This Tongtai TMV-850QII Vertical Machining Center was built 2017 in Taiwan and is equipped with a FANUC Series Oi-MF Control unit. This new machine has 0 production hours and was used as a test model at exhibitions only. As this machine is new, it comes with a warranty of 12 months or 3000 production hours.

Overview

brand: Tongtai
year: 2017
MODEL: TMV-850QII
production hours: 0
application type: Milling
Location: Hungary
machine type: Vertical Machining Centre
control unit brand: FANUC

Technical Information - Tongtai TMV-850QII

General Data

Measurements width: 2870 mm
Measurements depth: 2200 mm
Measurements height: 2810 mm
Machine weight: 6300 kg

Control Unit

Model: Series Oi-MF
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 1 - 12000 1/min

Movement

X-AXIS Movement: 850 mm
Y-AXIS Movement: 600 mm
Z-AXIS Movement: 530 mm

Table

Outer length: 1100 mm
Outer width: 600 mm

Tools

Max weight: 7 kg
Max tool diameter: 88 mm
Max tool length: 250 mm

Media

Main electronic connection: 380 V / 50 Hz
Power consumption: 30 kVA

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
